SMA Anemometer User Manual
Page 11
SMA Solar Technology AG
Electrical Connection
Installation Guide
Windsensor-IEN101010
11

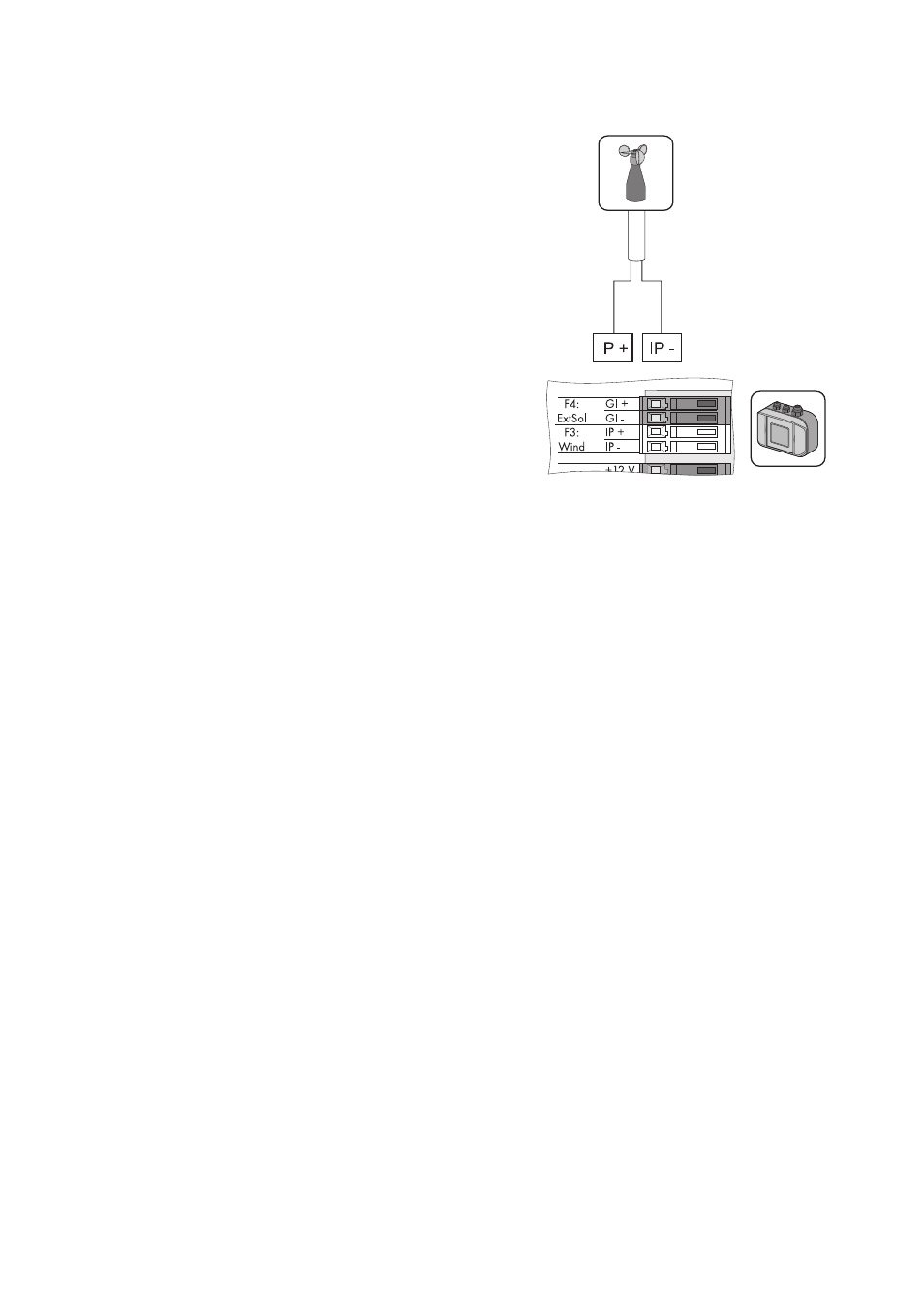

4. Connect sensor to connection "F3: Wind" of the
Sunny SensorBox. The polarity of the cables is
arbitrary.
5. Manually tighten the sleeve nut to the cable gland (torque: 0.8 Nm).
6. Lay the cable using suitable fastening material.
☑ The anemometer is connected. You can now put Sunny SensorBox into operation.
