Figure 52: Log Placement of Right Log.

31

The placement of the logs is not arbitrary. If

they are positioned incorrectly, the flames

can be “pinched” and will not burn correctly.

The burner has four (4) pins and four (4)

ledges which make alignment easier. Using

the pictures provided, carefully set the logs

in place.
NOTE: The logs are fragile and should

be handled gently.

1. Carefully remove logs from box and

check there is no damage. It is very

important to install all logs in their

proper position to ensure safe, optimum

operating conditions.

2. Place the Left Rear Log Chunk on the

two (2) left rear pins and the Right Rear

Log Chunk on the two (2) right rear pins

(refer to Figures 50 and 51).

3. Place the bottom of the “Y” Log in the

ledge at the front left of the burner and

the top of the log rests on the Right

Rear Log Chunk as shown in Figure 51

and 52.

4. Place the bottom of the Right Log in the

ledge at the front right of the burner and

rest the top of the log against the rear

panel as shown in Figure 52 and 53.

Secondary Installation

I

NSTALLATION

OF

L

OG

S

ET

:

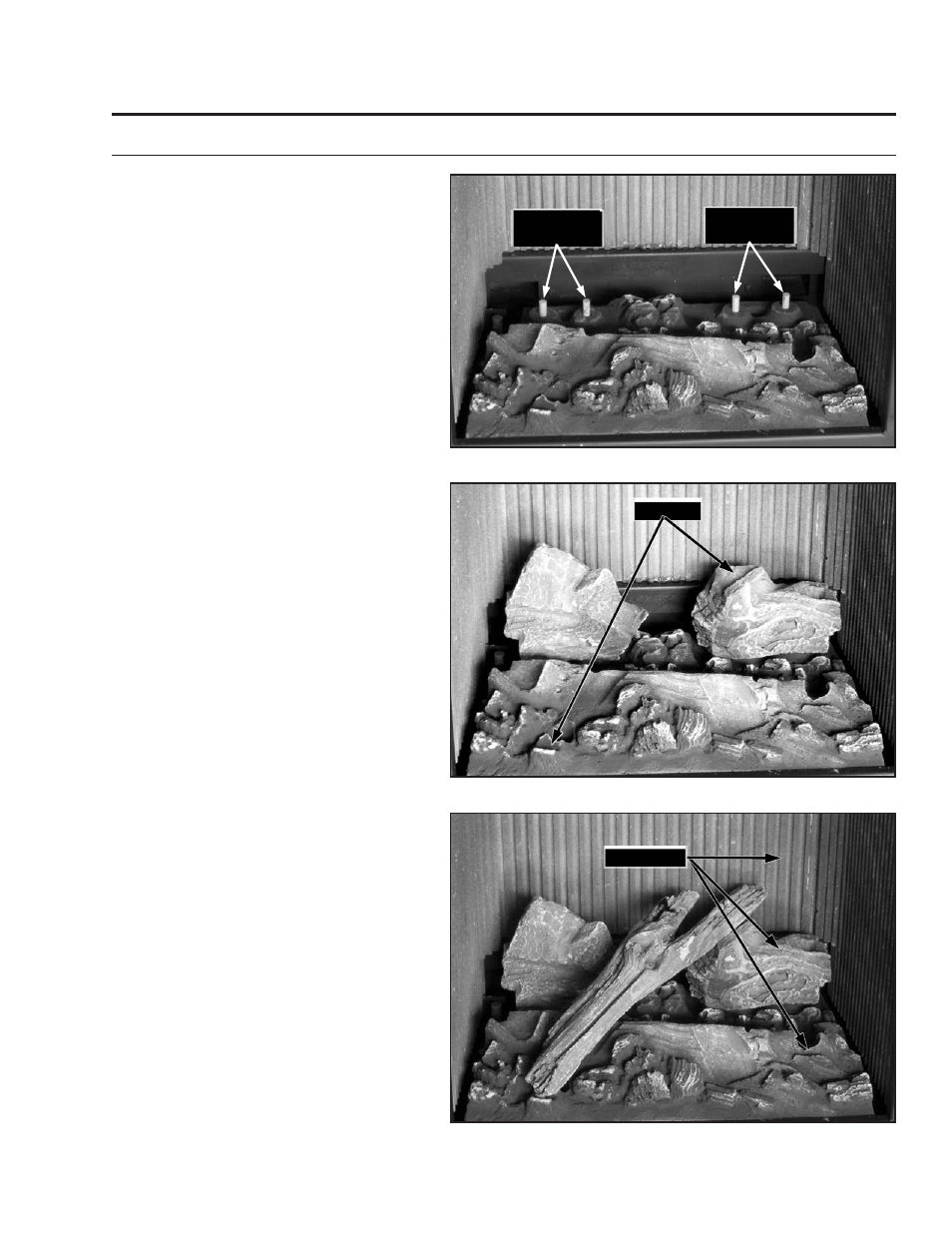

Figure 50: Log Placement of Rear Log Chunks.

Figure 51: Log Placement of “Y” Log.
