Spare Tire Bracket and Tire Wheel Assembly
See Detail F.
Locate the 3/8” x 3 7/16” x 4 1/8” square U-bolt Part No.
0310090 that fits the tongue of your trailer. Place the U-bolt
up and around the tongue from the bottom side. Locate
Item #9 spare tire bracket with two (2) holes. Align the holes
in the bracket with the legs of the U-bolt and place on the
U-bolt. Secure in place using 1/2” hex flange lock nuts.
Position the bracket on the tongue so it is located at the
approximate center of where the spare tire will be
located when installed and tighten in position.
Locate Item No. 10 spare tire bracket with three (3) holes. Place
it in position as shown and secure it to the bracket just installed
using two- 3/8” x 1” hex bolts and hex flange lock nuts. The
bottom set of holes in the bracket will raise the bracket into its high-
est position and will adapt to the larger tires. Tighten.
Locate the three- 1/2” x 1-1/2” hex bolts. Place them into
the upper bracket as shown from the bottom side. Secure
into place using 1/2” fine threaded nuts. Tighten. The
bracket is now ready for mounting the spare tire to it.
Place the spare tire onto the bracket by aligning the holes in
the wheel rim with the three bolts just installed. Once aligned
allow the spare tire to rest onto the bracket. Secure the
wheel to the spare tire bracket using the three- 1/2” lug nuts
provided. Tighten.

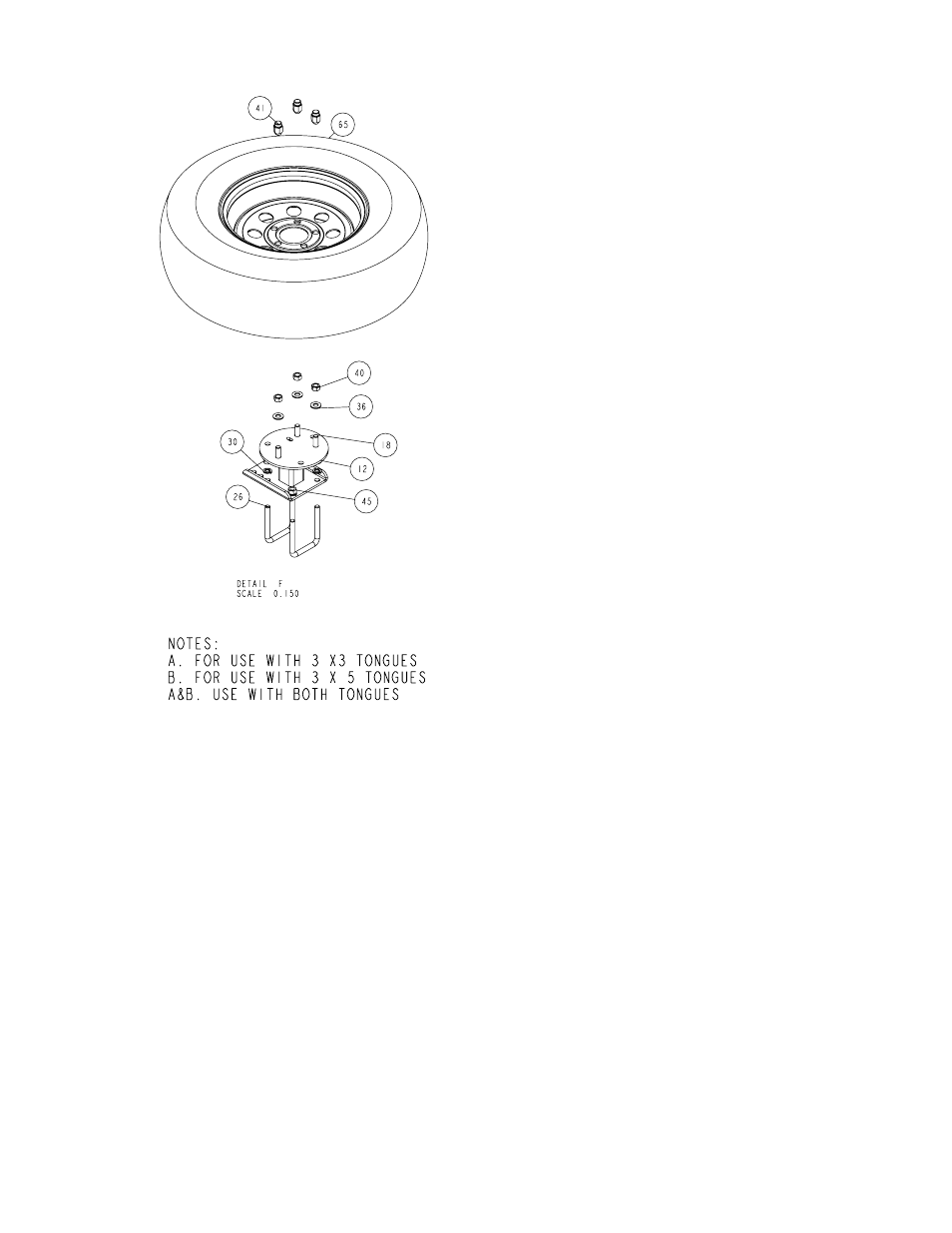

Detail F
