ShoreLand'r SLV31BLW - Manual (Page 7)

®
Made in the USA Midwest Industries, Inc. Ida Grove, IA 51445 (800)859-3028 0002856
www.shorelandr.com REV 7/13/00

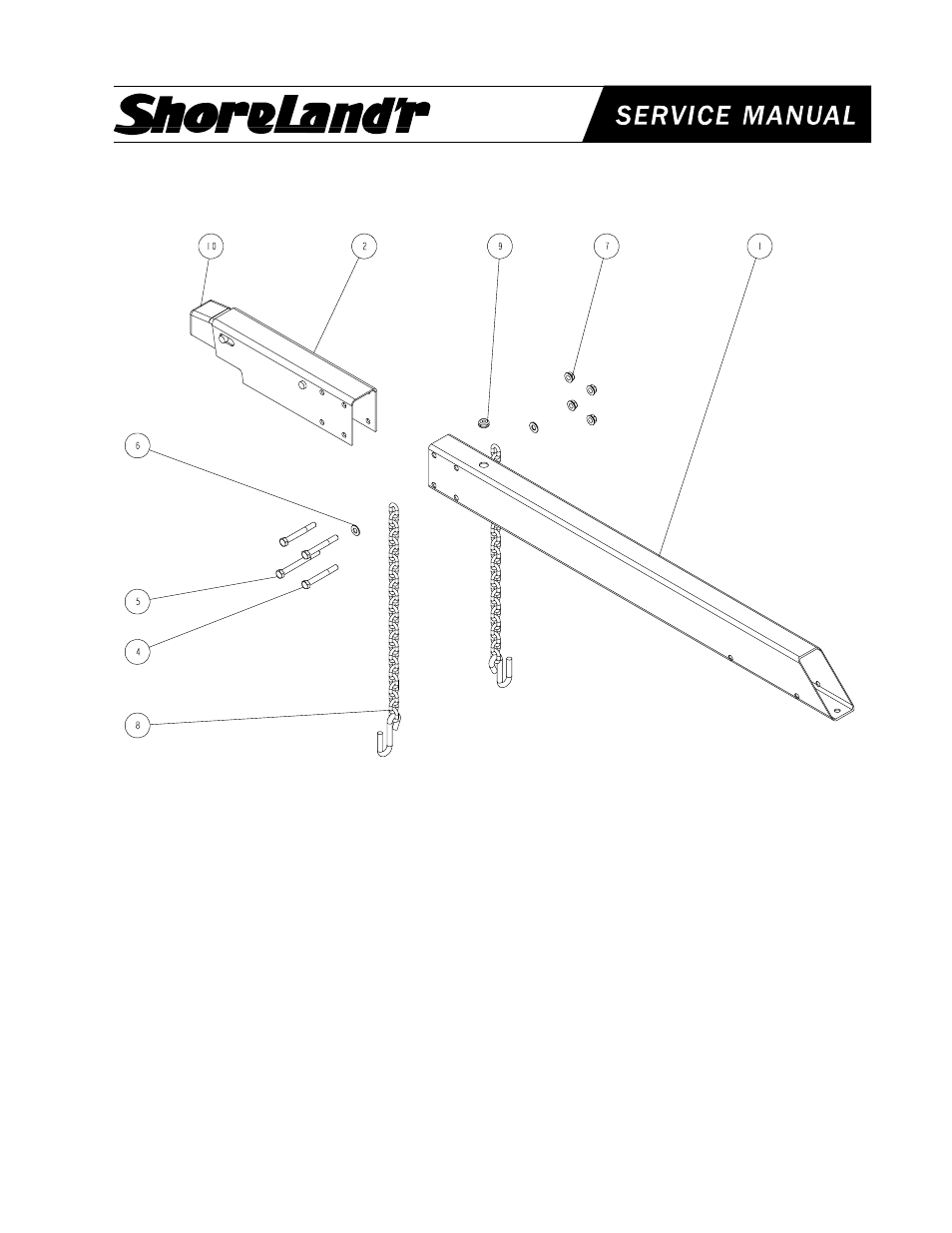

55” Brake Tongue Assembly (S-TS)
REF# PART# DESCRIPTION QTY
1 65541-- TONGUE 3X5X55 .................................. 1
2 65542-- OUTER HOUSING - UFP ACTUATOR 1
3 65601 BRAKELINE ASSY 56" ......................... 1
4 0110114 HH 1/2-13 X 4 CS GR5 ......................... 3
5 0110120 HH 1/2-13 X 5 CS GR5 ......................... 1
6 1340100 WASHER USS FLAT 1/2 ....................... 2
7 1440102 FLANGE LOCKNUT SMALL 1/2-13 ...... 4
8 2220272 CHAIN 8/0 MACH CHAIN 37" W/837 ... 2
9 3510030 GROMMET 7/8IN MOLDED ................ 1
10 3991012 ACTUATOR INNER DRUM BRAKE ..... 1
-- 3991013 ACTUATOR INNER DISC - TANDEM .. 1
-- 3820060 ACTUATOR INNER DISC - SINGLE .... 1
11 5110349 HARNESS TONGUE 7FT ................... 1
Actuator & Safety Chain:
Slide the actuator (Ref.#10) into the actuator housing unit (Ref.#2)
and secure with two pins and snap rings provided with the
actuator. Secure the actuator-housing unit to the front of the
tongue using three-(3) ½” X 4” hex bolts and ½” flange lock nuts.
Using a ½” X 5” hex bolt on lower right mounting hole on tongue,
secure the safety chain. Place a ½” flat washer on ½” X 5” hex bolt
followed by one safety chain and insert into actuator housing unit
and tongue. Place the second safety chain on the bolt followed by
a ½” flat washer and ½” flange lock nut. Tighten.
Brakes:
Refer to the brake manual for service and maintenance.
