ShoreLand'r SLV31BLW - Manual (Page 3)

SLV24BLW

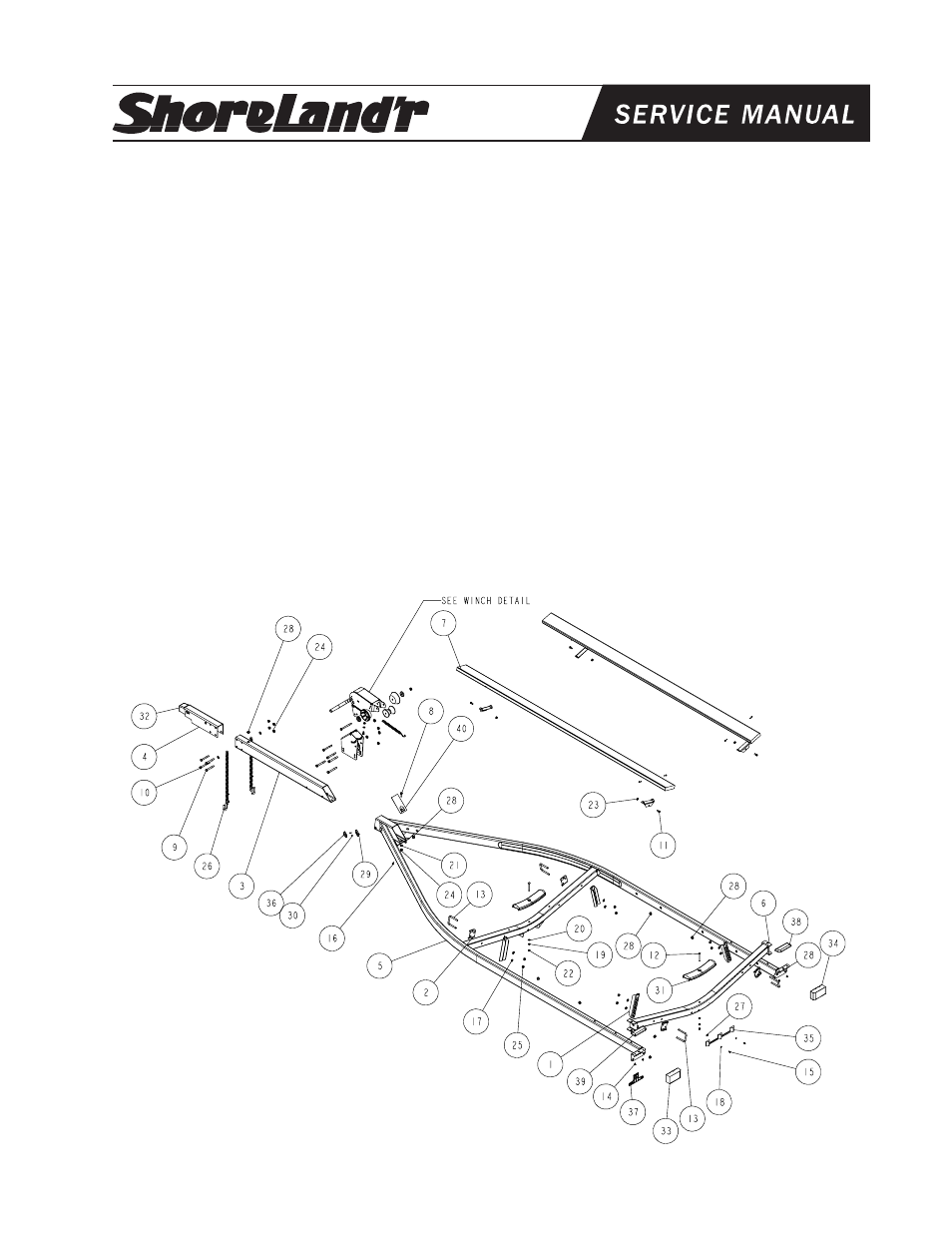

REF# PART# DESCRIPTION QTY
1 60047-- ADJ BUNK BRKT ................................... 4
2 6046200 ADJUSTABLE BUNK CLAMP ............... 4
- 64145 BRAKELINE ASSY 186" W/COILS ...... 1
3 65541-- TONGUE 3X5X55 .................................. 1
4 65542-- OUTER HOUSING - UFP ACTUATOR . 1
- 65601 BRAKELINE ASSY 56" ......................... 1
5 66102-- FRAME WMENT 80 WIDE 190 LONG .. 1
6 66128-- REAR CROSS WMENT (80 WIDE) ....... 1
7 66408 BUNK ASSY W/BRKTS 10 FT .............. 2
8 0110096 HH 1/2-20 X 1-1/2 .................................. 1
9 0110114 HH 1/2-13 X 4 CS GR5 .......................... 4
10 0110120 HH 1/2-13 X 5 CS GR5 .......................... 1
11 0140040 HH 3/8-16 X 1 CS GR5 .......................... 4
12 0210130 CARR 3/8-16 X 3 3/4 GR5 .................... 2
13 0310228 SUB 1/2 X 3 9/16 X 4 1/4 ...................... 4
14 0810126 SCREW SELFTAP TYPE B 1/4X1/2 ..... 4
15 0810925 SCRW SELFDRILL HWH #10-16 X 3/4 2
16 0810945 SCREW SELFDRILL 1/4-14X3/4 ......... 1
17 1310040 LOCKWASHER 1/2 S/T MED ................ 8
18 1310170 WASHER #10 USS FLAT ...................... 2
19 1340030 LOCKWASHER 3/8 S/T MED ................ 2
20 1340095 WASHER USS FLAT 3/8 ....................... 2
21 1340100 WASHER USS FLAT 1/2 ....................... 3
REF# PART# DESCRIPTION QTY
22 1410109 HEX NUT FINISH 3/8-16 ....................... 2
23 1440101 FLANGE LOCKNUT SMALL 3/8-16 ...... 4
24 1440102 FLANGE LOCKNUT SMALL 1/2-13 ...... 6
25 1440159 HEX NUT FINISH 1/2-13 ....................... 8
26 2220272 CHAIN 8/0 MACH CHAIN 37" W/837 .... 2
27 3510022 GROMMET 7/16IN MOLDED ............... 1
28 3510030 GROMMET 7/8IN MOLDED ................. 10
29 3510122 LIGHT BEZEL - WHITE ......................... 2
30 3510158 PLASTIC DRIVE RIVOT ........................ 4
31 3510542 MOLDED REAR CROSSMEMBER PAD 2
32 3991012 ACTUATOR INNER (35B) ..................... 1
-- 3991013 ACTUATOR INNER (40TBB) ................ 1
-- 3820060 ACTUATOR INNER (24B, 31B & 40TB) 1
33 5110013 DRY LAUNCH LIGHT ASSY (LEFT) ..... 1
34 5110014 DRY LAUNCH LIGHT ASSY (RIGHT) .. 1
35 5110045 3 LIGHT CLUSTER 1994 LEXAN ....... 1
36 5110112 MARINE YELLOW CLEARANCE LIGHT2
37 5110348 BO LICENSE PLATE BRACKET ........... 1
- 5110347 HARNESS 5-PRONG FLAT ................ 1
- 5110354 HARNESS FRAME 2X4 LEFT 17FT 2 .. 1
- 5110355 HARNESS FRAME 2X4 RIGHT 17FT 2 1
38 S-3390 STEP PAD RIGHT 2 1/2 X 7 .............. 1
39 S-3391 STEP PAD LEFT 2 1/2 X 7 ................. 1
40 S-3510 TONGUE COVER PLATE ..................... 1
