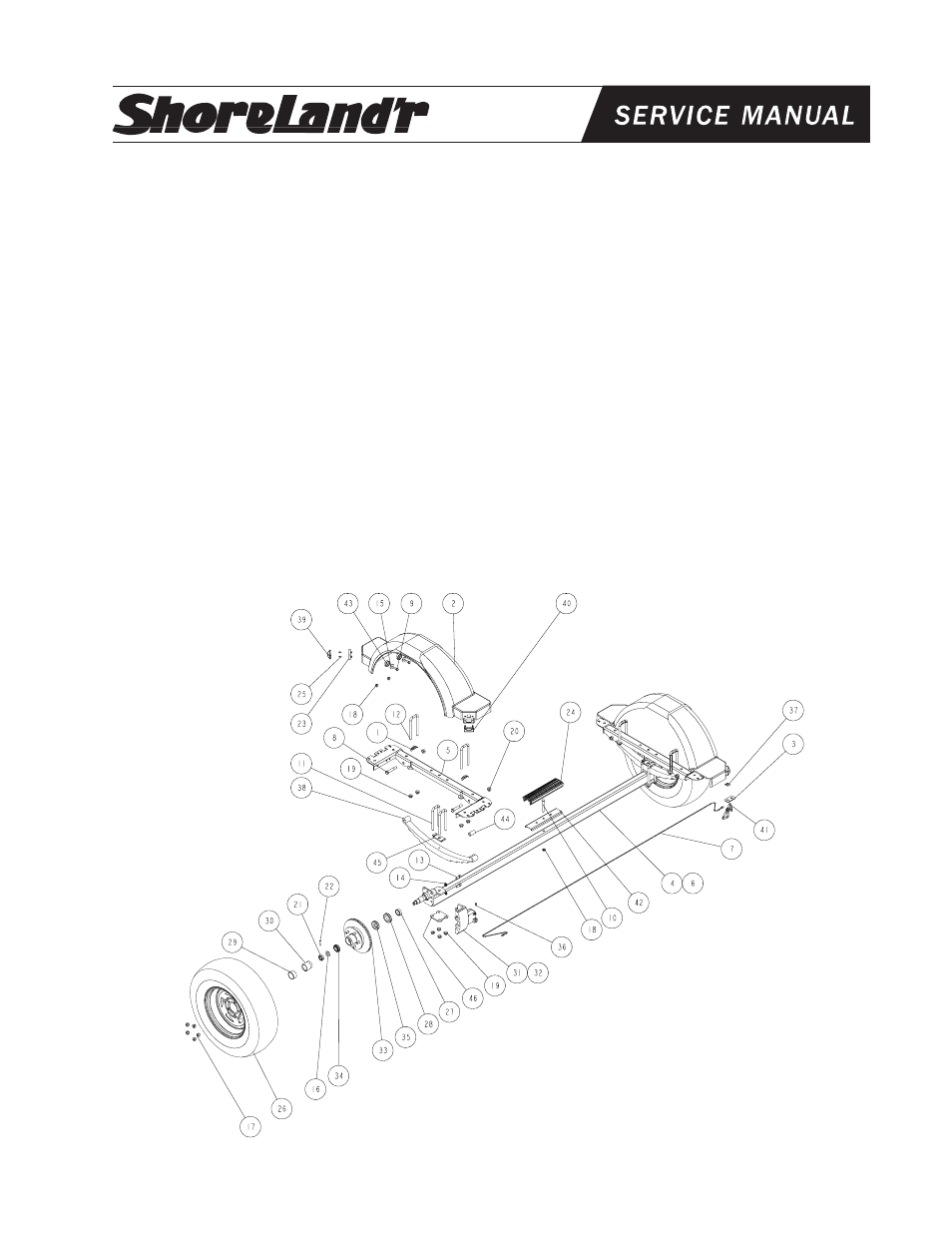

Chassis - 31B
REF# PART# DESCRIPTION QTY
1 4279 SHIM PAD U BOLT 12GA FRAME ..... 4
2 62201-- FENDER 10IN POLY ........................... 2
3 6234710 BRAKELINE CLIP BRACKET ................ 1
4 66155-- AXLE WMENT (80 WIDE) ..................... 1
566162-- SPRING BRKT 10IN SINGLE .............. 2
6 66439-- AXLE ASSY 80 WIDE W/BRAKES ........ 1
7 66472 BRAKE LINE ASSY 105" ....................... 1
8 0110170 HH 9/16-18 X 3 1/4 CS GR5 ................. 4
9 0140040 HH 3/8-16 X 1 CS GR5 .......................... 8
10 0210130 CARR 3/8-16 X 3 3/4 GR5 .................... 1
11 0310170 SUB 1/2" X 2-5/16"X6-1/2 ...................... 4
12 0310276 SUB 1/2 X 2 9/16 X 6 1/2 ...................... 4
13 0610042 SOCKET HEAD SCREW 7/16-20X1-1/4 4
14 1310035LOCKWASHER 7/16 S/T ....................... 4
151310163 WASHER 1.377 OD X .390 ID .............. 8
16 1340206 WASHER 1.5 OD X .765 ID X .186/.206 2
17 1410229 HEX LUGNUT 1/2-20 13/16 OD Z&U .... 10
18 1440101 FLANGE LOCKNUT SMALL 3/8-16 ...... 9
19 1440102 FLANGE LOCKNUT SMALL 1/2-13 ...... 16
20 1440259 HEX LOCKNUT 9/16-18 GRA ............... 4
21 1440349 HEX NUT SLOTTED PLAIN .................. 2
22 1540038 COTTER KEY 1/8 X 1 1/2 ..................... 2
23 3510122 LIGHT BEZEL - WHITE ......................... 4
REF# PART# DESCRIPTION QTY
24 3510132 AXLE PAD 12IN BLK ............................ 1
25 3510158 PLASTIC DRIVE RIVOT ........................ 8
26 4300198 ST215/75R 14C TIRE/GALV DIR RIM .. 2
-- 4300199 ST/215/75R 14C TIRE/MSLVR DIR RIM2
27 4410089 SPINDLE SLEEVE 1 1/4-3/4IN BRG ..... 2
28 4410130 SEAL 1 3/8IN ........................................ 2
29 4410246 SL BEARING PROTECTOR BRA ......... 2
30 4410247 BEARING BUDDY - SS ......................... 2
31 4410289 DISC BRAKE CALIPER ASSY .............. 1
32 4410290 DISC BRAKE CALIPER ASSY .............. 1
33 4410291 HUB/VENTED ROTOR, C.B., ASSY,13 2
34 4440160 ROLLER BEARING 1 1/16IN .............. 2
354440170 ROLLER BEARING 1 3/8IN ................ 2
36 4510506 PLUG ..................................................... 1
37 4510518 HOSE CLIP - 1457-YZ ........................... 1
38 4610048 SPRING 5 LEAF HOOK ....................... 2
39 5110112 MARINE YELLOW CLEARANCE LITE . 2
40 5110113 MARINE RED CLEARANCE LIGHT ...... 2
41 4510511 HOSE - 18IN MALE-FEMALE BRAKE .. 1
42 S-3387 2" PLASTIC CHANNEL BRACKET ....... 1
43 S-3501 RUBBER CUP WASHER ....................... 8
44 S-3207G SPRING BRKT BUSH PLATED ZYU .... 2
45S-3409G SPRING CLAMP 1/4X1 1/2X4 ZYU ... 2
46 S-3449G SPRING AND AXLE U-BOLT PLATE .... 2
