ShoreLand'r SLB10 V.3 - Manual (Page 4)

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com M308185
Page 4 of 8
Winch Post
The winch post comes fully assembled but will need to be
adjusted to fit your boat. See the final adjustment section for
instructions.

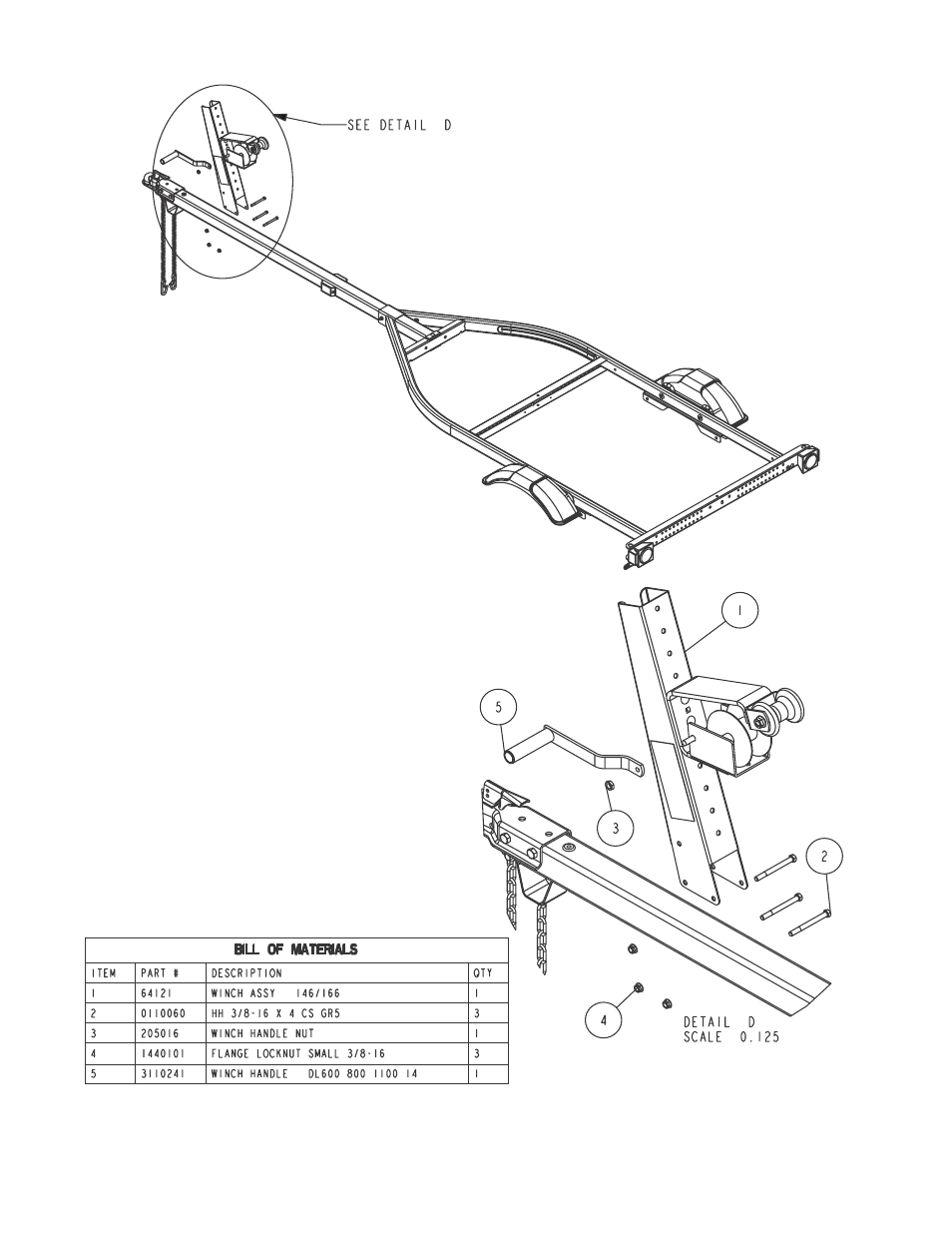

Slip the end of the winch post over the tongue as shown in
Detail D. Attach the winch post to the tongue using three-
3/8” x 4” hex bolts and flange lock nuts. Tighten only to hold
the winch post in position. It will be tightened later when
adjusting to fit the boat.
Remove the nut from the drive shaft of the winch. Align the
flat surfaces of the drive shaft with those in the winch handle
and slide into position. Replace the nut just removed from
the drive shaft. Tighten.
