EVGA X58 FTW - Manual (Page 28)

EVGA X58 FTW3 Motherboard
28

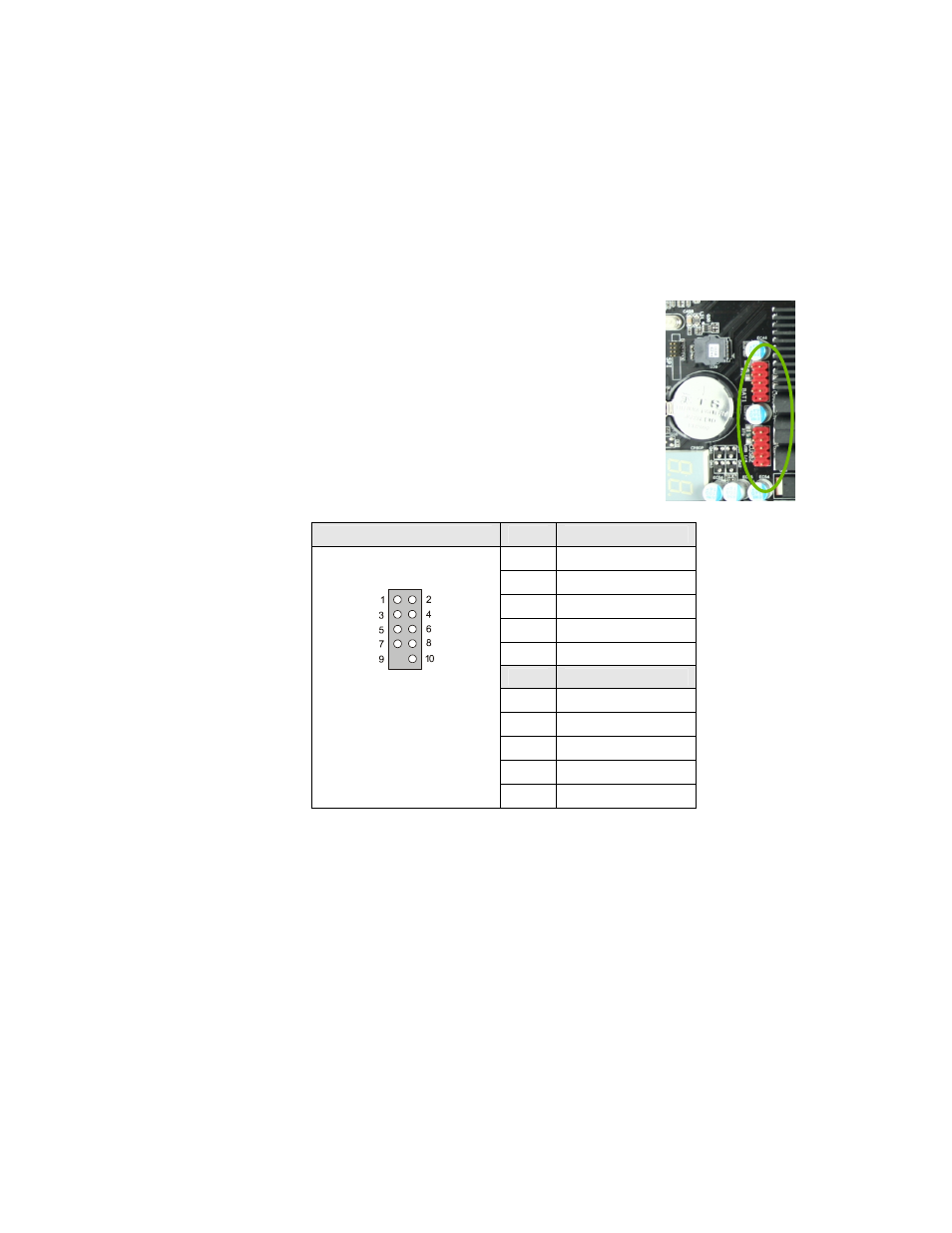

USB Headers
This motherboard contains eight (8) USB 2.0
ports that are exposed on the rear panel of the
chassis (Figure 2). The motherboard also
contains two 10-pin internal header connectors
onboard that can be used to connect an optional
external bracket containing four (4) USB 2.0
ports.
1. Secure the bracket to either the front or rear panel
of your chassis (not all chassis are equipped with the
front panel option).
2. Connect the two ends of the cables to the USB 2.0
headers on the motherboard.
Table 4. USB 2.0 Header Pins
Connector Pin Signal
USB 2.0 Header Connector
1 5V_DUAL
3 D-
5 D+
7 GND
9 Empty
Pin Signal
2 5V_DUAL
4 D-
6 D+
8 GND
10 No Connect
