EVGA X58 FTW - Manual (Page 24)

EVGA X58 FTW3 Motherboard
24

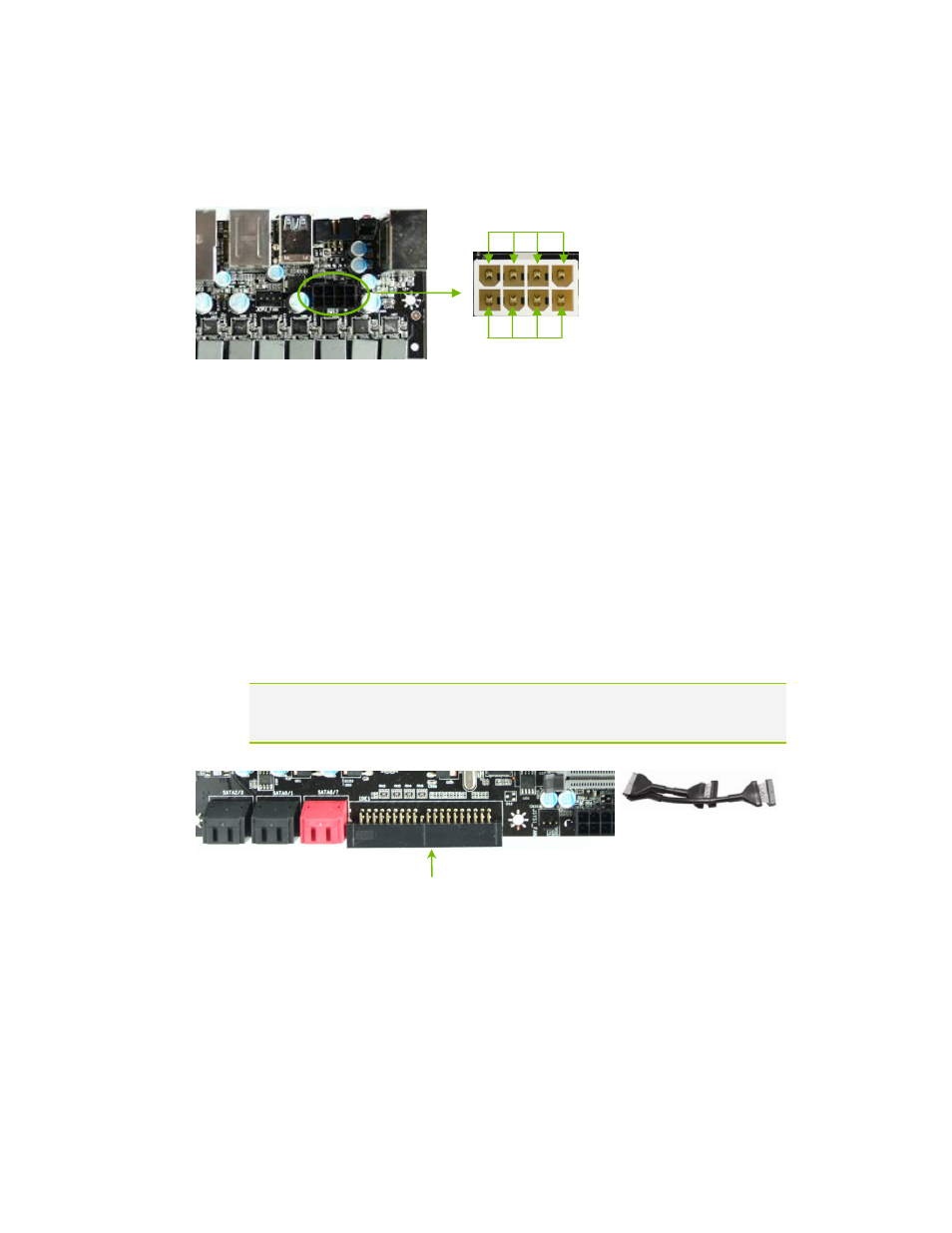

8-pin ATX 12V Power ( PW12 )
PW12 , the 8-pin ATX 12V power connection, is used to provide power to the
CPU. Align the pins to the connector and press firmly until seated.
Connecting IDE Hard Disk Drives
The IDE connector supports Ultra ATA 133/100 IDE hard disk drives.
1. Connect the blue connector (the cable end with a single connector) to the
motherboard.
2. Connect the black connector (the cable with the two closely spaced black
and gray connectors) to the Ultra ATA master device.
3. Connect the grey connector to a slave device.
If you install two hard disk drives, you must configure the second drive as a
slave device by setting its jumper accordingly. Refer to the hard disk
documentation for the jumper settings.
Note: If an ATA-100 disk drive and a disk drive using any other IDE transfer
protocol are attached to the same cable, the maximum transfer rate between
the drives may be reduced to that of the slowest drive.
12V
IDE Connector
Motherboard Edge
GND
