EVGA FTW3 Motherboard
15
1. CPU Socket 1366 11. IEEE1394a Connector 21. Front Panel Audio Connector
2. Intel X58 Chipset 12. USB Headers 22. Back Panel Connectors (Figure 2)
3. DDR3 DIMM Slots 1 – 6 13. Clear CMOS Button 23. CPU Fan Connector
4. Fan Connectors 14. Power Button 24. 8-pin ATX_12V Power Connector
5. 24-Pin ATX Power Connector 15. Reset Button 25. Motherboard Battery
6. IDE Connector 16. Serial Connector 26. SATA3 600MBps Ports
7. Intel ICH10R Chipset 17. PC Speaker
8. Serial-ATA (SATA) Connectors 18. PCI slots
9. Debug LED Display - CPU Temperature
Monitor
19. PCI-E 2.0 Slots
10. Front Panel Connector 20. PCI-E x1 Slot

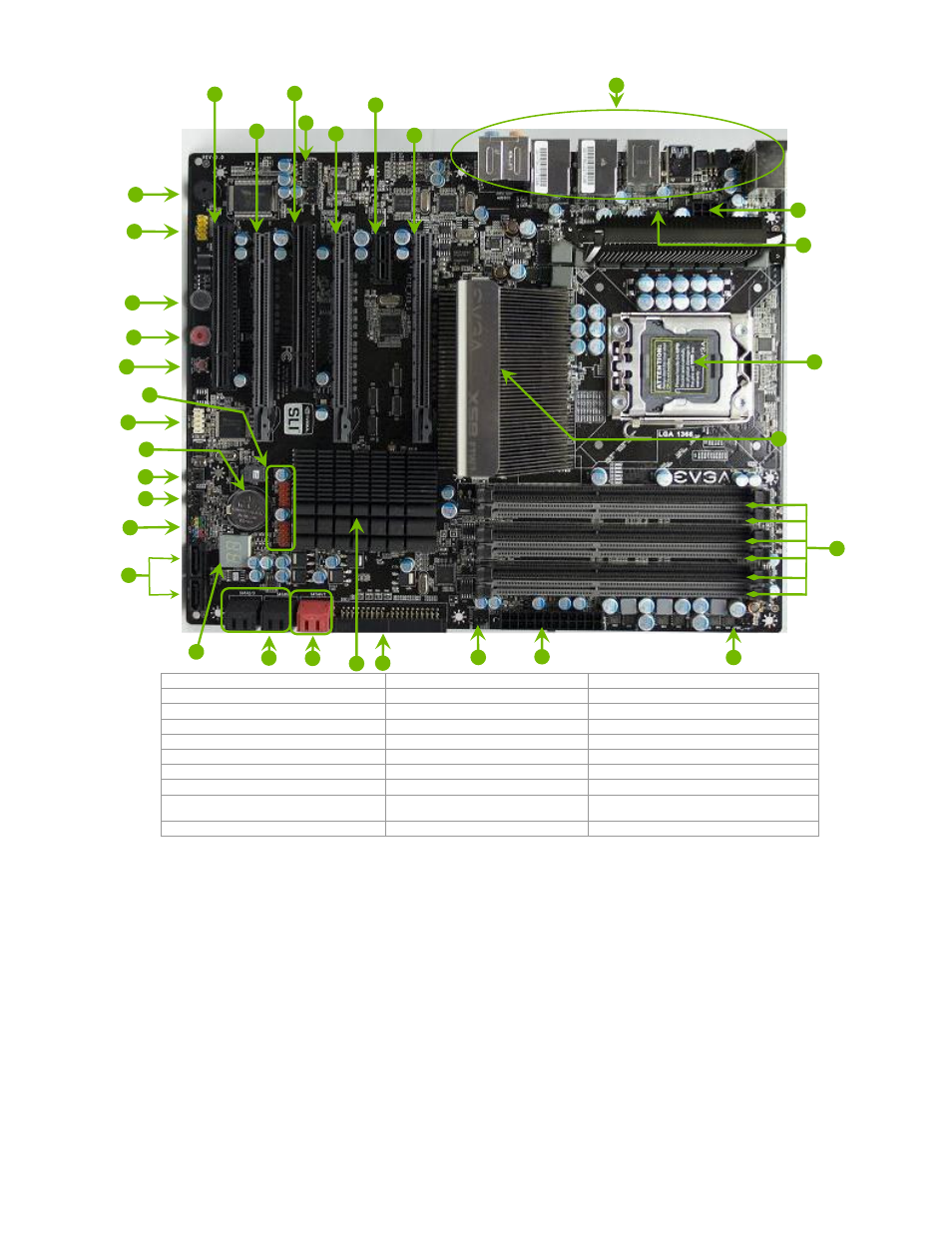

Figure 1. EVGA X58 FTW3 Motherboard Layout
1
4
6 7
4 5
10
18
19
18
20
19
22
19
14
13
24
15
4
21
17
2
8
8
11
12
16
9
4
25
3
26
23
