MAINTENANCE

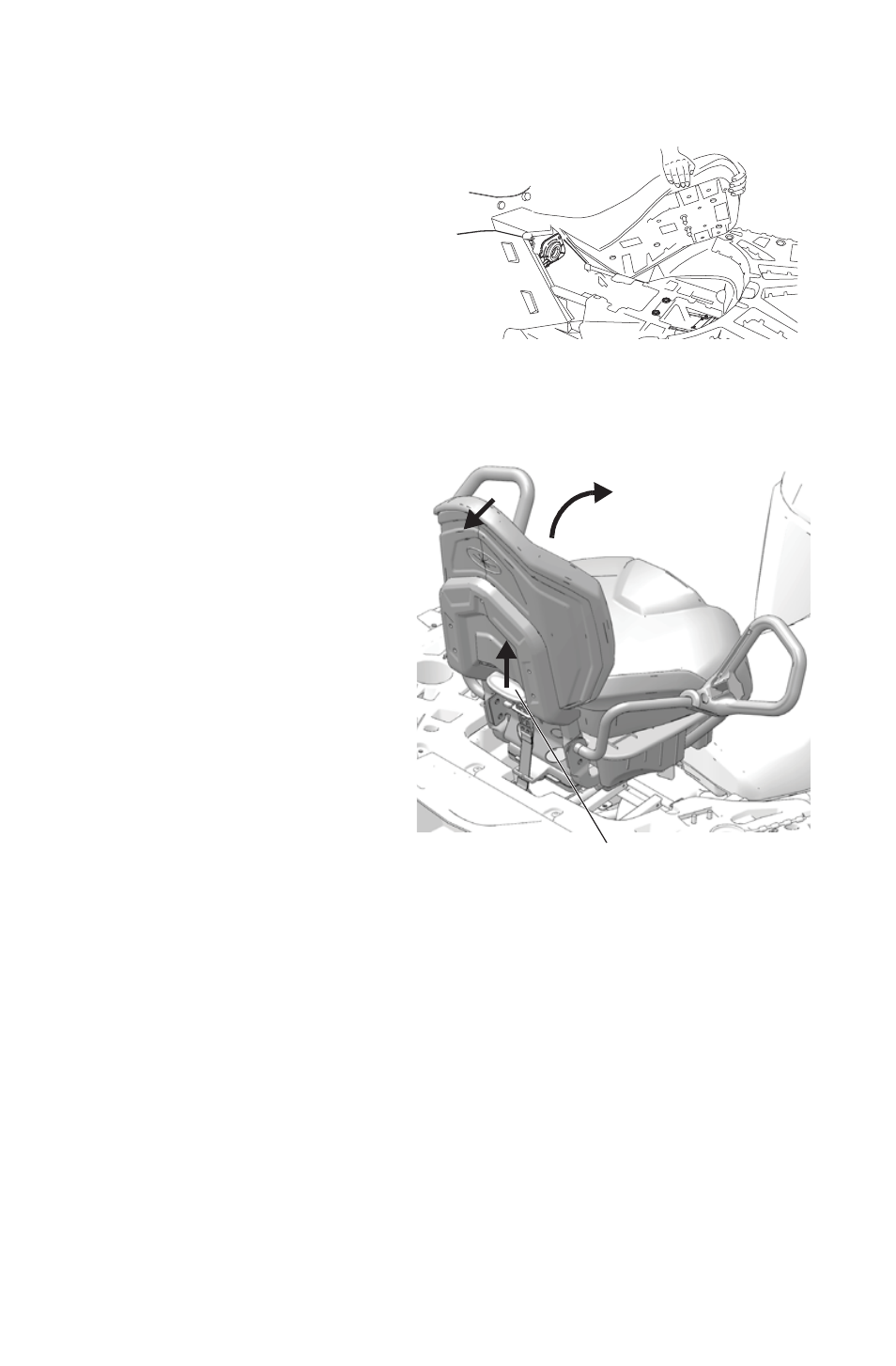

Seat Removal (1-Up Models)
1. Grasp one side of the seat
near the rear edge.
2. Pull upward abruptly to
disengage the under-seat
fasteners.
3. Remove the seat.
Seat Removal (Touring)
To remove the operator’s seat, grasp one side of the seat near the rear
edge. Pull upward abruptly to disengage the under-seat fasteners.
To remove the passenger seat,
pull the top of the seatback
slightly rearward to relieve
tension (1) while pulling the seat
release latch upward (2). When
the latch releases, roll the seat
assembly forward (3) and lift the
seat away from the vehicle.
Passenger Seat
Release Latch
1
2
3
