BAV-0808 Rev. 0
12
7 Control panel operation
The built-in panel in the BAV-0808 offers 8 input select buttons on the top row. The input buttons are
equipped with two LED indicators for displaying both video and audio status during breakaway
operations. The bottom row selects the 8 router outputs. The last selected output will be indicated with the
LED. On the left hand side the panel provides 4 function keys with following functions:
•
TAKE Executes the last operation
•
TAKE ON/OFF Enables / disables Take function
•
A/V TOGGLE Enables Audio, Video or AFV
•
PANEL ENABLE Enables panel

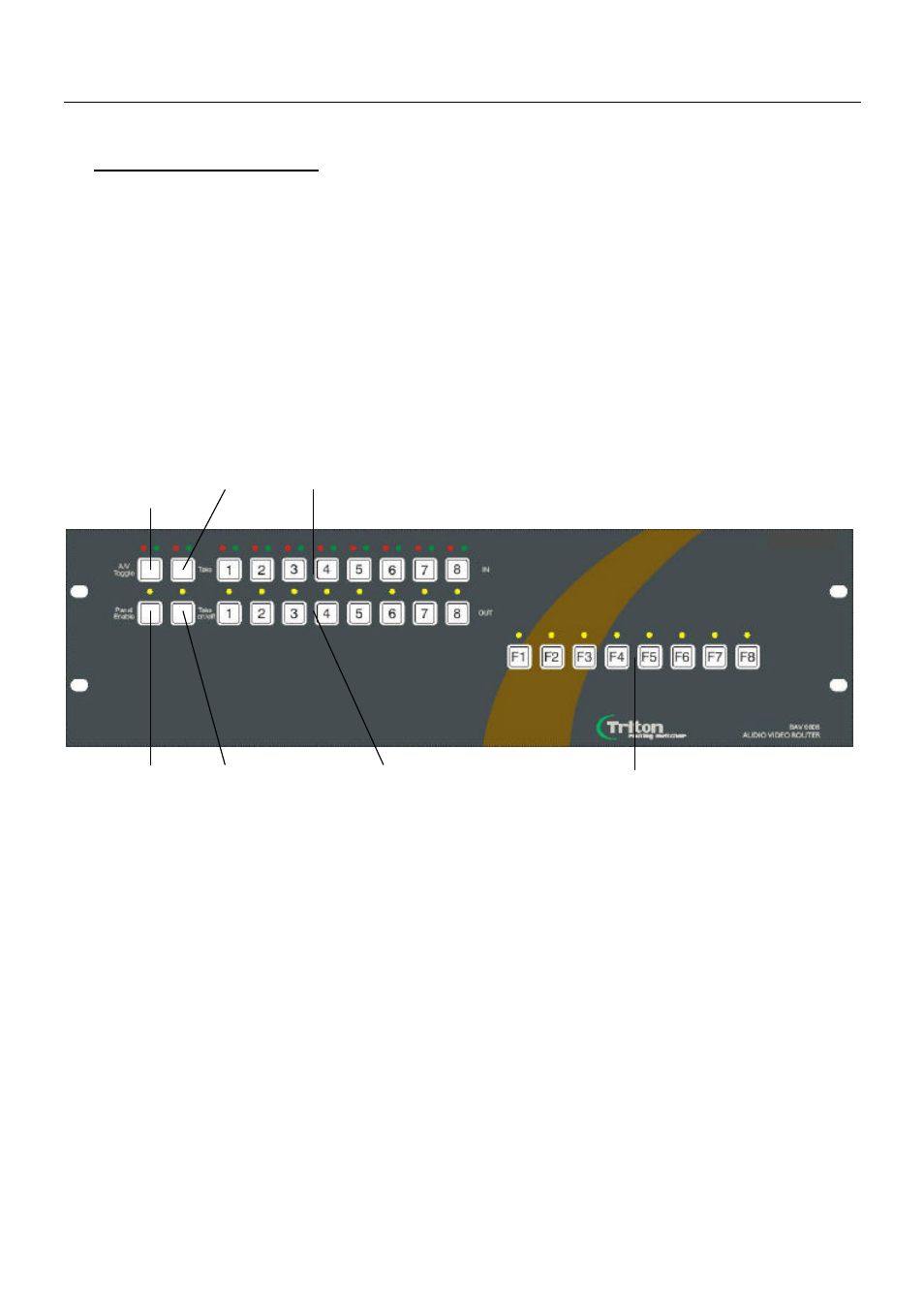

7.1 Front panel drawing
A/V Take
Input Select
Toggle
Panel Take Output Select Salvo Select
Enable On/Off
7.2 PANEL ENABLE button
After powering-up the control panel will be disabled. The LED`s in the buttons are only half illuminated.
Press the PANEL ENABLE button to start operating. If you want to lock the control panel after use you
simply disable by operating the PANEL ENABLE button once again.
7.3 V/A TOGGLE button
After powering-up the control panel will operate audio follow video. The red and green LED on the V/A
TOGGLE button are illuminated. By operating the V/A toggle button you can select the layer you want to
switch. Red LED illuminated means only audio. Green LED illuminated means only video.
7.4 Operating crosspoints
Operating crosspoints is an easy task with BAV-0808. First you select the output you want to operate on
the output button row. With the next operation you select one of the inputs on the input button row. The
crosspoint operation will be executed while pressing the input button.
