BAV-0808 Rev. 0
2
1.1.2 (Optional) Audio Specifications
Frequency response: 20Hz-100kHz ± 0.1dB
Crosstalk: > -100dB
Click noise: < 80dBqp
THD+N: < 0.003%
SNR: > 100dB ref. to 0db 20Hz-20kHz
Number of inputs: 8 (Stereo) true balanced
Input impedance: > 10k ohms
CMRR: > 75dB
Max. Input level: + 25dBu
Number of outputs: 8 (Stereo) true balanced
Output impedance: 66 ohms
Connector: DB25 female
1.1.3 Panel Specifications
Salvos: Programmable/executable on panel
1.1.4 General Specifications
AC power: External power supplies 100 - 260 VAC
DC power: ±15V, connector DB9 male,
Equipped with 2x DB9 connectors
Max power consumption: <20W
Dimensions:
483 x 132 x 35 mm (19”, 3RU)

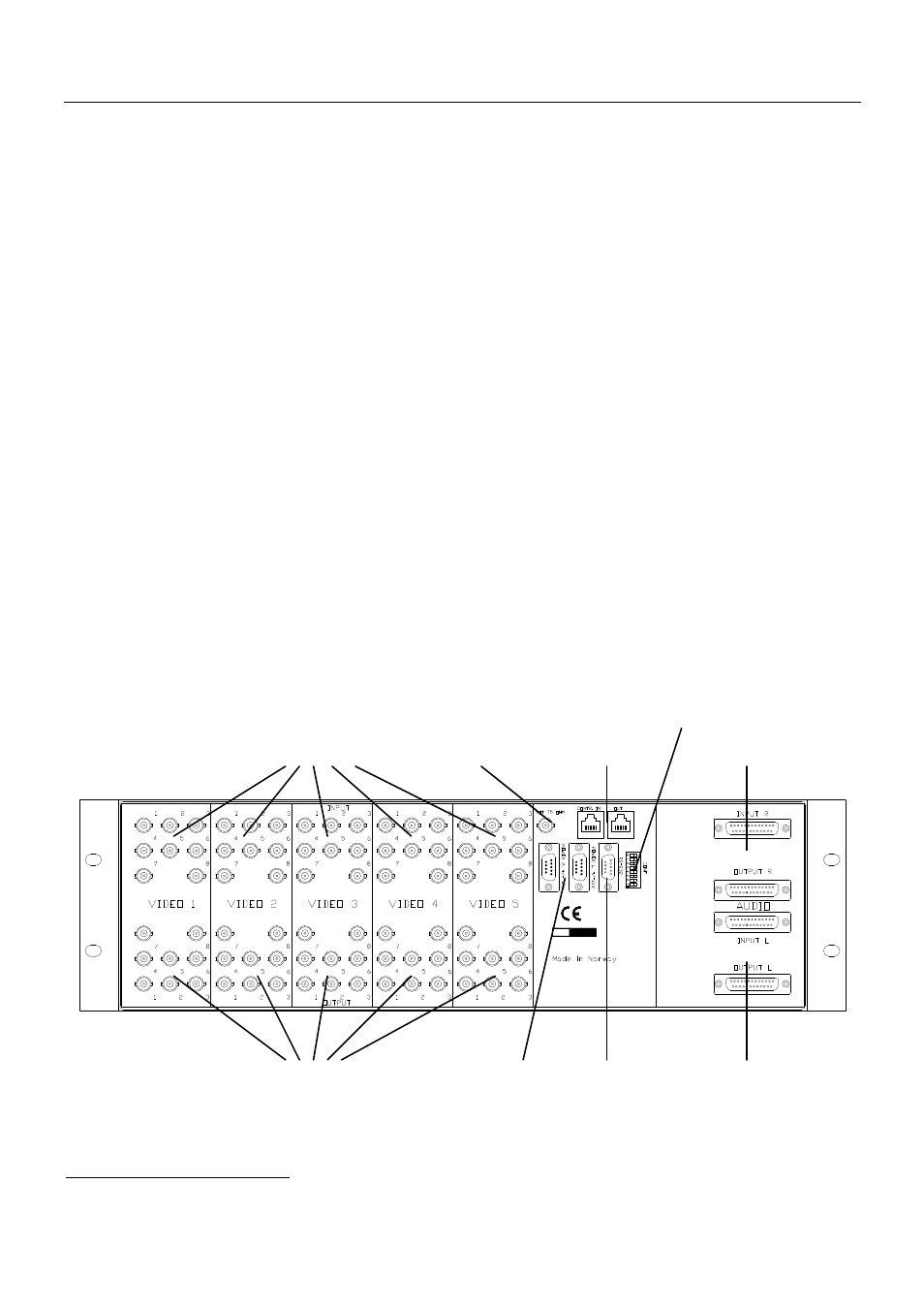

1.2 Connection drawing
Configuration switches
RGBHV inputs VIT conn. NCB
1
Audio inputs
RGBHV outputs Power conn.
2
RS-232 port Audio outputs
1
Network Control Bus. The protocol of this bus is equal, and compatible to the MIDI bus protocol.
2
BAV-0808 has 2 power connectors, allowing redundant power supplies.
SN.
