o RS-422 Data + CP for data on Level 3
o Universal Control Panel to control all devices above, with user configurable default level.

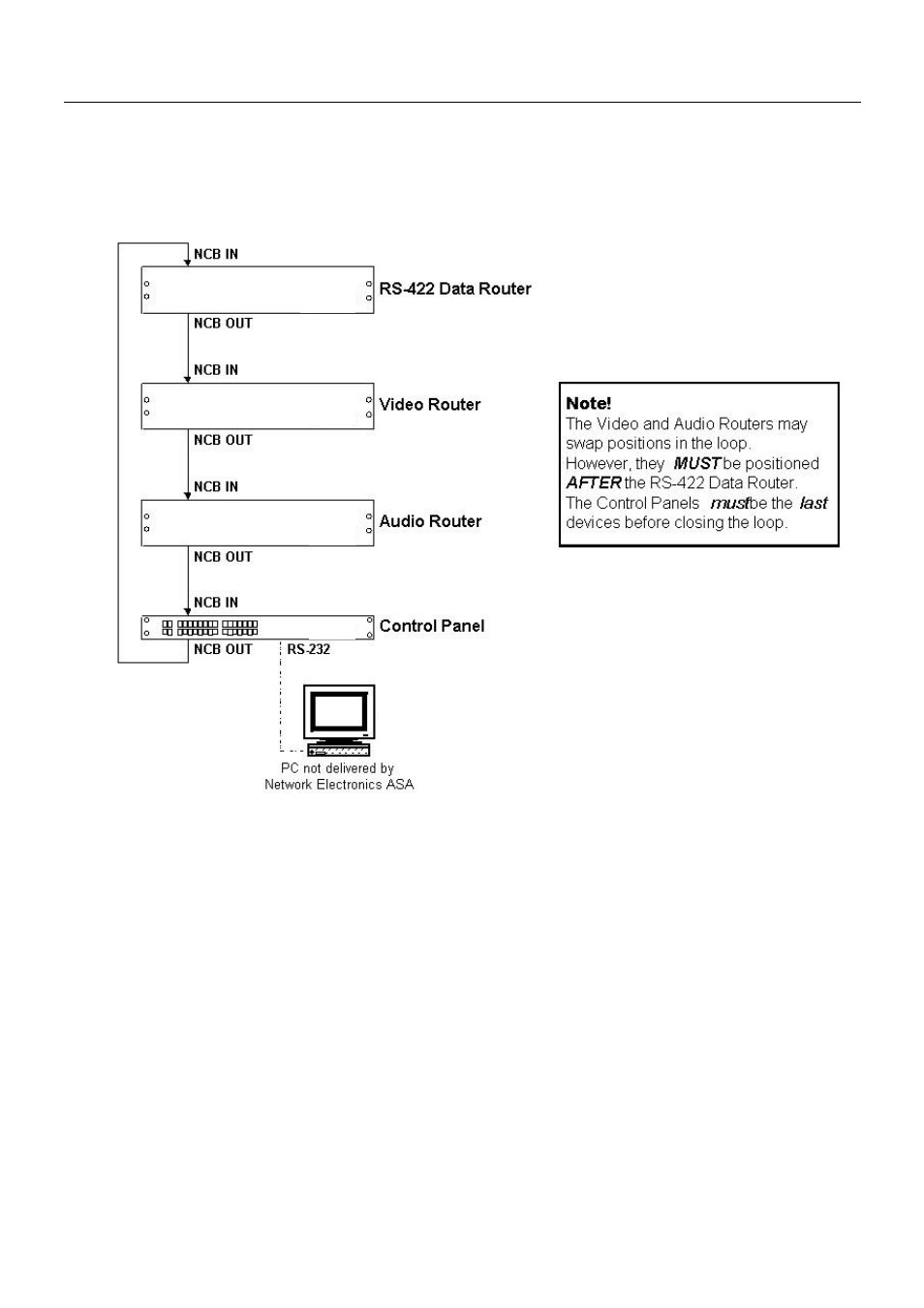

• Pay attention to the figure below, in order to achieve full controllability of all devices in the loop.
• Complete the Control loop, by connecting all Control bus connections to all Triton devices, before
powering up any Triton device.
Triton - RCS
