Mounting the Slides in the Rack
PDX 218 Instruction Manual
2-3
Locate the proper rack holes as shown in Figure 2-2. Notice that the hole spacing can
vary with the rack type. When mounting the slides in racks with EIA spacing, make
sure that the slides are attached to the 0.5-inch spaced holes.

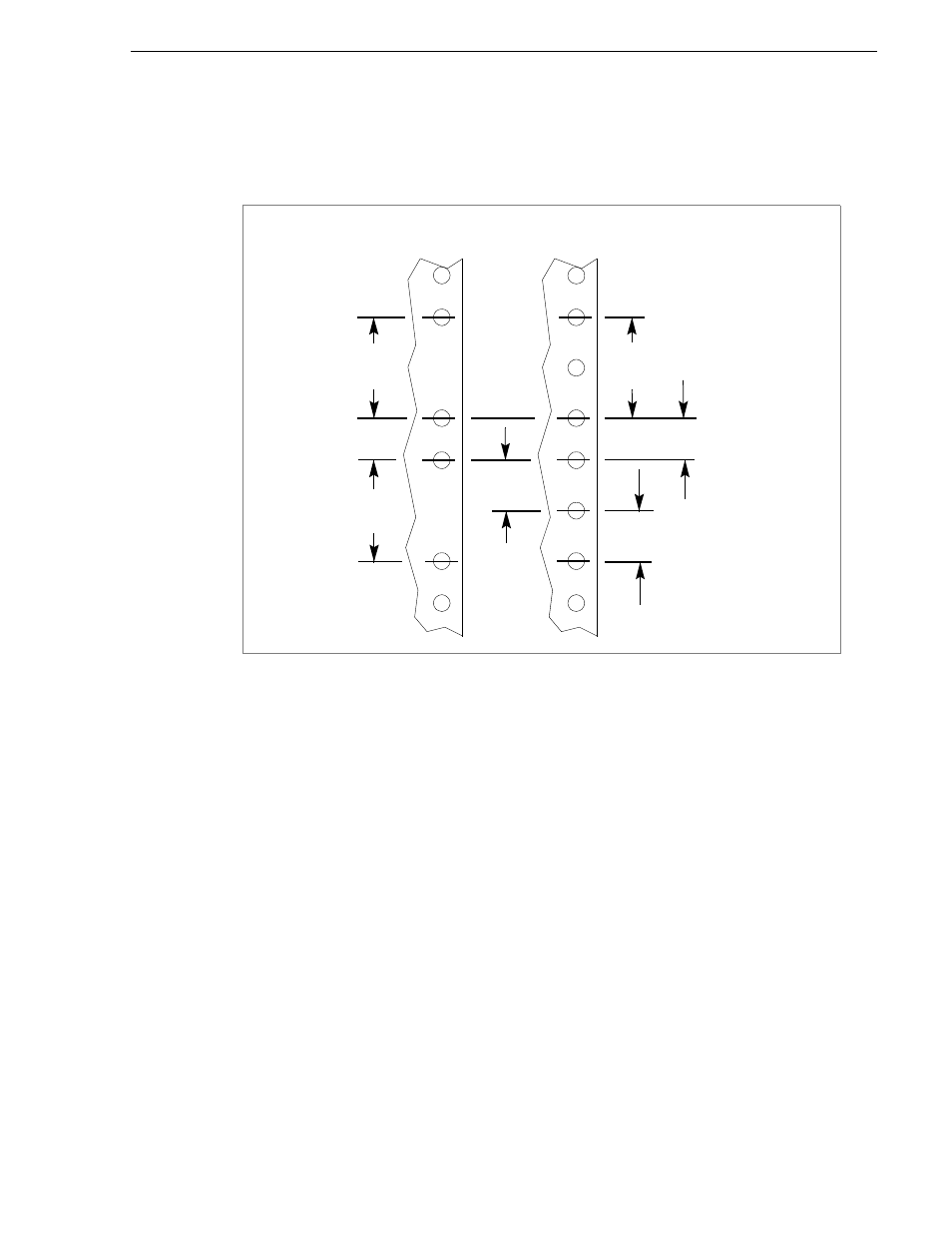

Figure 2-2. Spacing for Mounting Holes in a Rack
1.250 in
MIL STD 189
“UNIVERSAL” SPACING
0.500 in
0.625 in
1.250 in
1.250 in
0.625 in
