K-FRAME — Installation Planning Guide 29
6-RU Video Processors

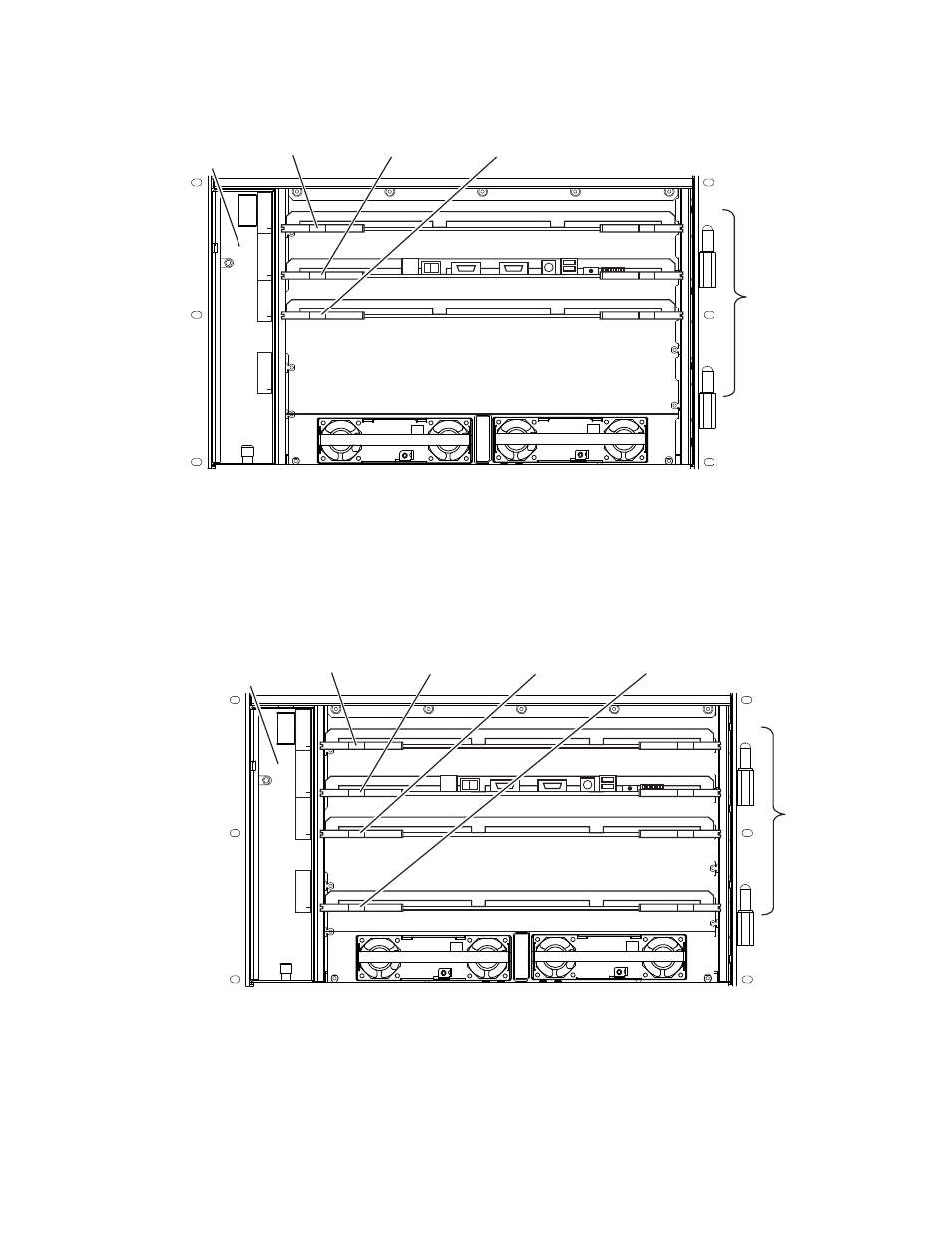

Figure 9. K-Frame Compact S-series 6-RU, Front View with Door Removed
6RU Compact Front Views with Doors Removed
The Compact Frame includes optionally, an Image Store board and six
keyers per ME.
Figure 10. K-Frame Compact Performance Frame 6-RU, Front View with Door Removed
CAUTION The Video Processor front door must remain in place and closed during
normal system operation to maintain maximum cooling efficiency.
F3 ME
B
F4
IMAGE STORE
F2
CONTROLLER
F1 ME
A
ON OFF
8875_23
Front Slots
F1 - F4
Fan
Assembly
ME A Controller ME B
F3 ME
B
F4
IMAGE STORE
F2
CONTROLLER
F1 ME
A
ON OFF
8875_07r1
Front Slots
F1 - F4
Fan
Assembly
ME A Image Store Controller ME B
