GUIDE TO INSTALLATION AND OPERATION
28 | AAP-1741
GSM is a dynamic register of all the system
alarms, and is also an alarm provider for
external applications.

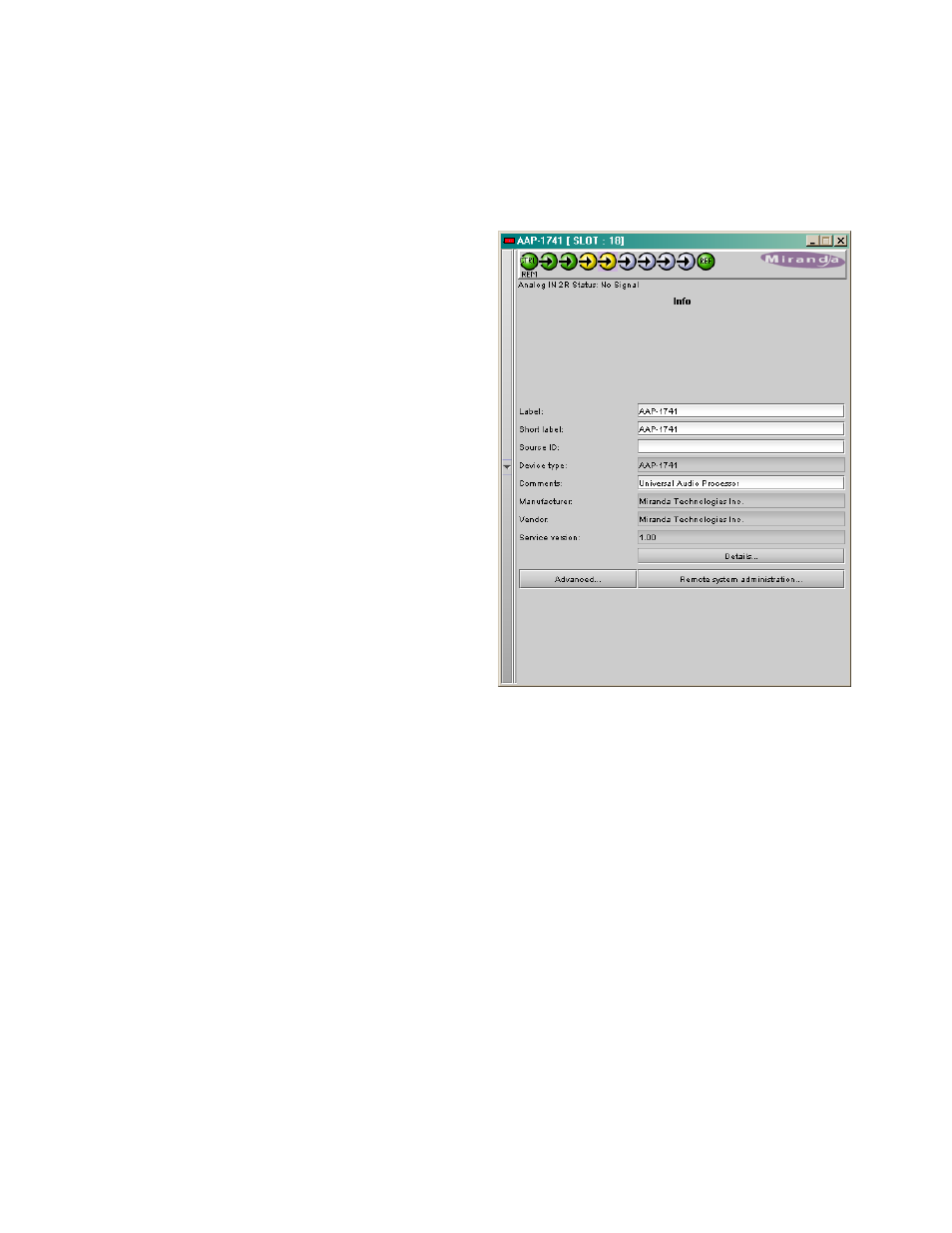

3.3.13 Info
The Info panel provides the user information about
the AAP--1741.
The boxes titled Label, Short Label, Source ID and
Comments are editable – the user can enter their
own information.
The Advanced button displays the name of the
server within the iControl system, the frame in
which it is installed, the slot occupied by the card
and it’s ID (75 for AAP-1741).
The Remote System Administration button at the
bottom of the window opens a data entry box titled
Joining Locators, in which the ADD option opens a
dialog box in which the user can identify the
Locator by its URL.
