GUIDE TO INSTALLATION AND OPERATION
AAP-1741 | 27

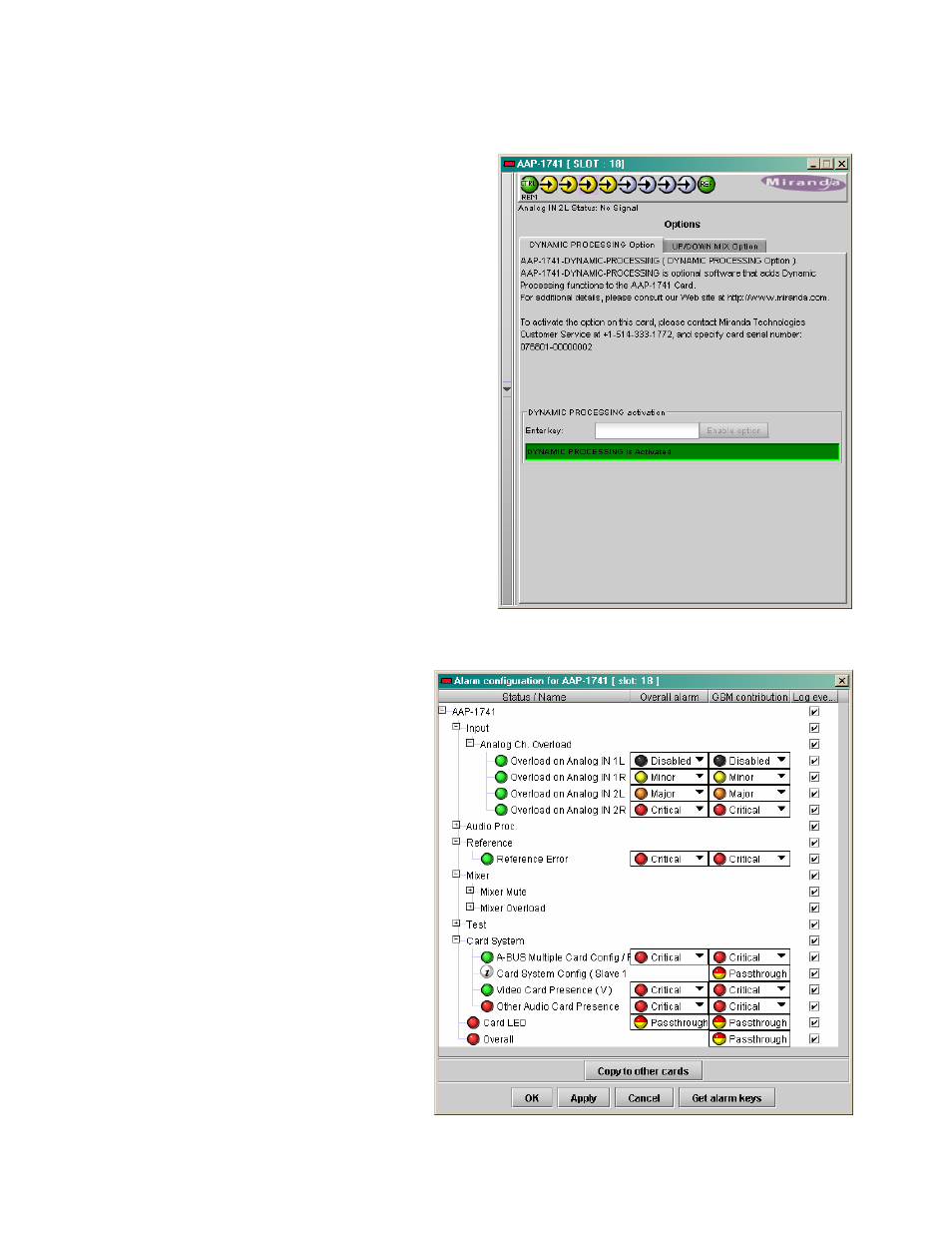

3.3.11 Options
Two options are available for the AAP-1741:
• UP/DOWN MIXING option (AAP-1741-OPT-
MIX)
• DYNAMIC PROCESSING option (AAP-1741-
OPT-DYN)
Activate either option on the AAP-1741 card by
entering the activation key into the Enter Key data
box in its tab, and clicking the Enable Option
button.
• The current status of the option is shown in
the status box below the Enter Key data box.
See the text message at the top of the tab for
information about purchasing an option and
obtaining the activation key.
3.3.12 Alarm Configuration
Selecting the Alarm config tab opens a
separate window for error status reporting. The
alarm Configuration Panel shows all measured
parameters and offers the following options for
each:
Choose an alarm Name, use the pull-down box
in the Overall alarm column to select the level
associated to this alarm: Disabled, Minor,
Major
or Critical.
Check Log events to enable logging. The result
is stored in a database managed with GSM in
iControl Navigator.
In the bottom of the column Status/Name, the
Card LED
color follows the status of the
physical card LED, as defined in the front panel
menu Configure Alarm (page 21).
The overall Status is reflected by the color of
the indicator attached to the card in iControl
Navigator. It is also displayed in the upper left
corner of the iControl Interface of the AAP-
1741.
