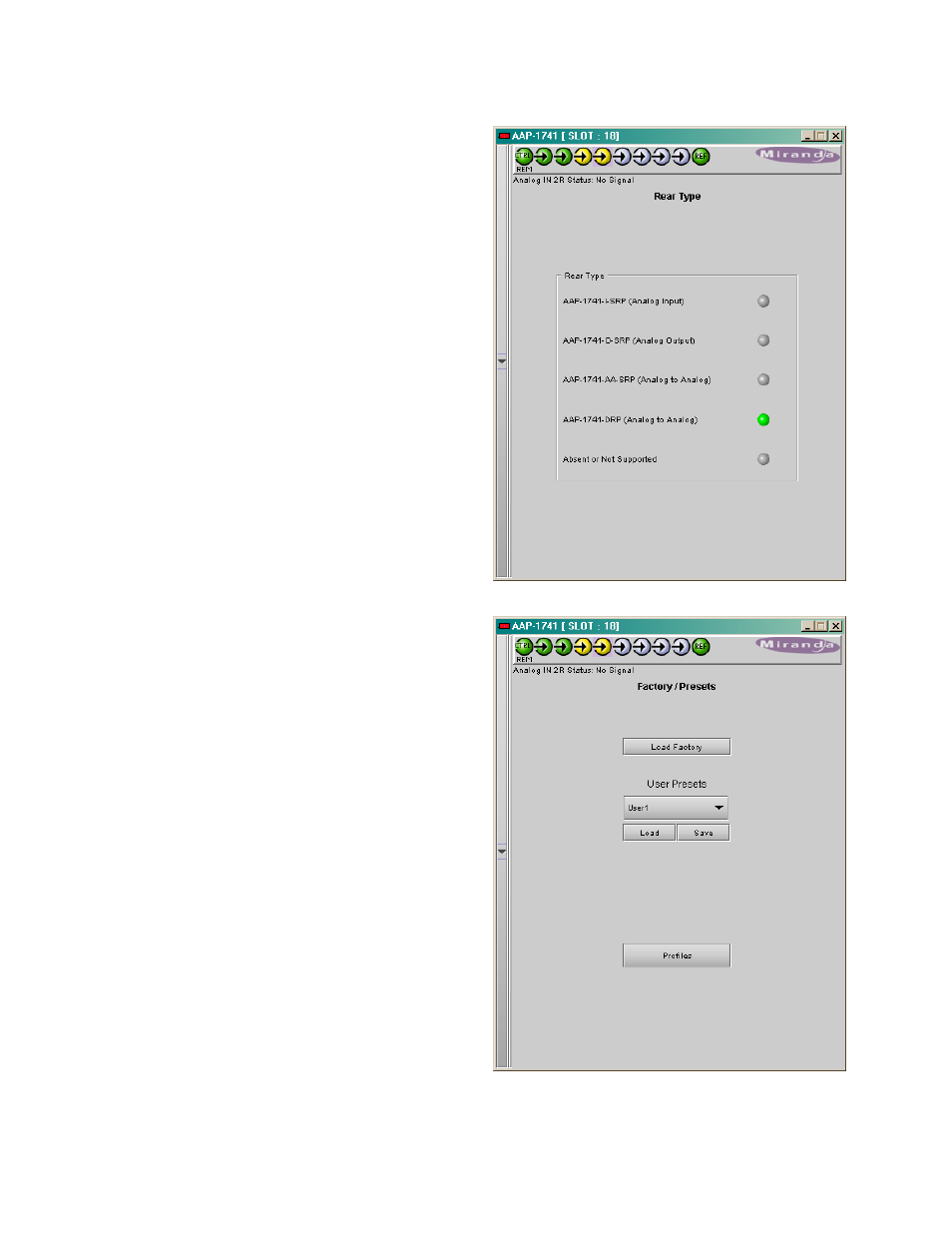

3.3.9 Rear Type
This tab shows the type of the rear panel: single or
dual width.
AAP-1741-I-SRP: 4 analog inputs
AAP-1741-O-SRP: 4 analog outputs
AAP-1741-SRP: 2 analog inputs
and 2 analog outputs
AAP-1741-DRP: 4 analog inputs
and 4 analog outputs
3.3.10 Factory / Presets
Load Factory - The Factory profile is a read-only
set of factory-selected values that can be used to
return the AAP-1741 to a standard operating
condition without affecting the User Presets.
• The AAP-1741 Menu in section 3.2.2
indicates the default values for all
parameters
User Presets
- The five User Presets are read-
write data registers that allow you to save the
contents of the Current state of the AAP-1741 for
later recall.
Select any one of the five presets using the pull-
down list. The name of the currently-selected User
Preset
is shown on the name bar.
• Click
Load to load the contents of the
selected User Preset into the AAP-1741.
All parameter settings and values will be
replaced by the contents of the selected
User Preset
.
• Click
Save to store the current parameter
settings and values from the AAP-1741 into
the selected User Preset. The existing
contents of the preset will be overwritten.
