GUIDE TO INSTALLATION AND OPERATION
26 | AAP-1741
3.3.10.1 Profiles

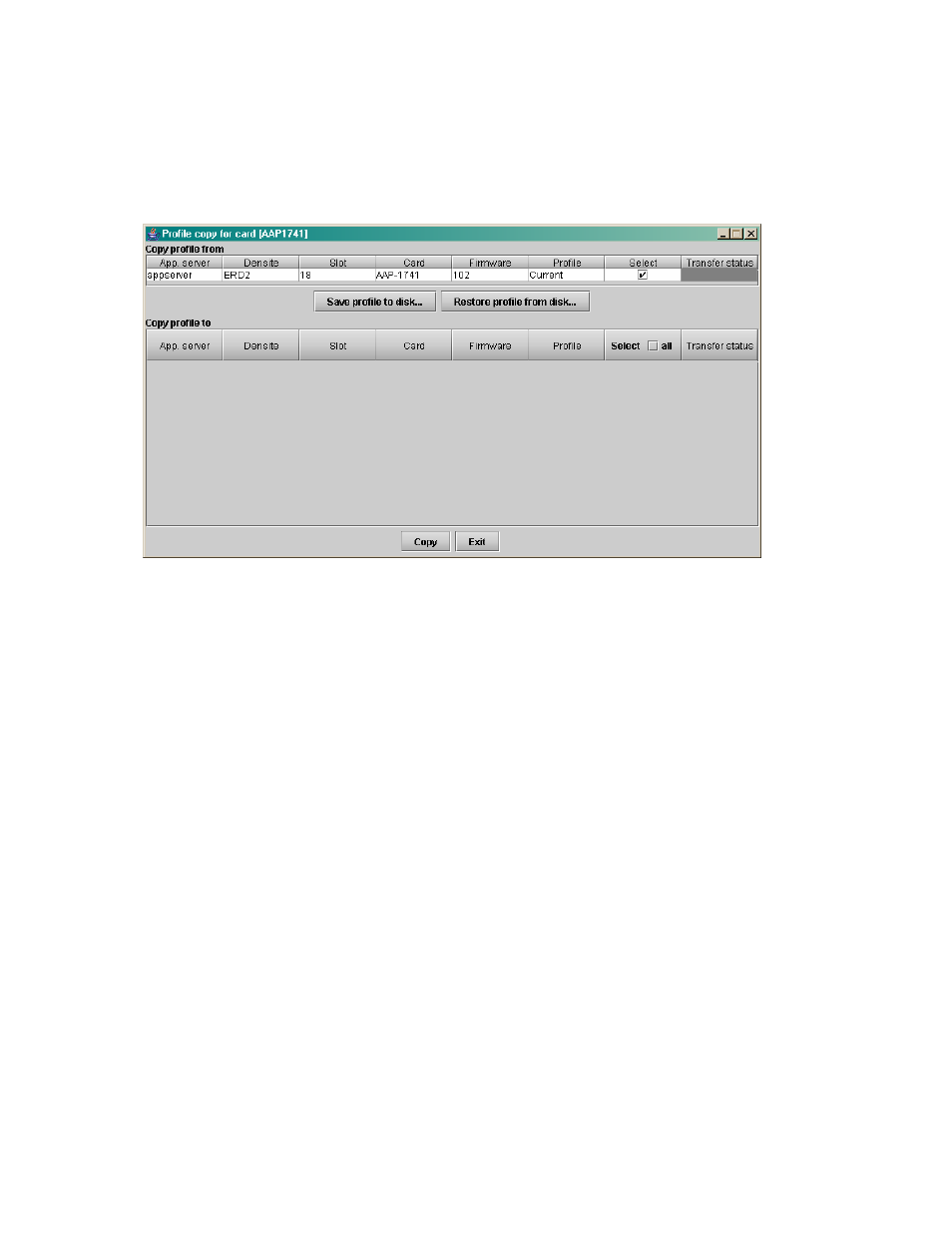

Click the Profiles button at the bottom of the Factory/Presets panel to open a window allowing parameter
settings to be copied from this AAP-1741 card to other AAP-1741 cards.
• The
Copy Profile From line shows the current AAP-1741.
• The
Copy Profile To table shows all other AAP-1741 cards available in the local iControl
environment
Click in the individual Select boxes to select one or more destination AAP-1741 cards, or click Select All to
select all of them at once. Those noted as not available (N/A) in the Transfer Status column cannot be
selected.
Click on the Profile entry in the source AAP-1741 line to see a pull-down listing the Current profile and all 5
User Presets
. Click on one to select it as the source profile
Click Copy to copy the contents of the selected profile into the same-named profile on the destination
AAP-1741 cards.
.
