30 8925DMB-B and -U — Instruction Manual
Remote Configuration
I/O Config Web Page
Use
this
link
Use the I/O Config web page ( Figure 12 for the 8925DMB-U and Figure 13
on page 31 for the 8925DMB-B) for the following:
8900UVF-R Rear Module Configuration
All of the input and output connectors on the corresponding 8925DMB-B
or 8925DMB-U rear module are illustrated on the I/O Config web page.
The inputs can be configured with the following controls:
• Signal names – type of the desired input name (up to 12 characters) into
the corresponding boxes for each input. The status of each input is indi-
cated by the color of the display, the color legend is under the table.
Note The status color yellow can also indicate that the input is invalid.
• Reporting – the status reporting can be enabled or disabled to the module
level by selecting or deselecting the corresponding checkbox in the
Reporting column for each input.

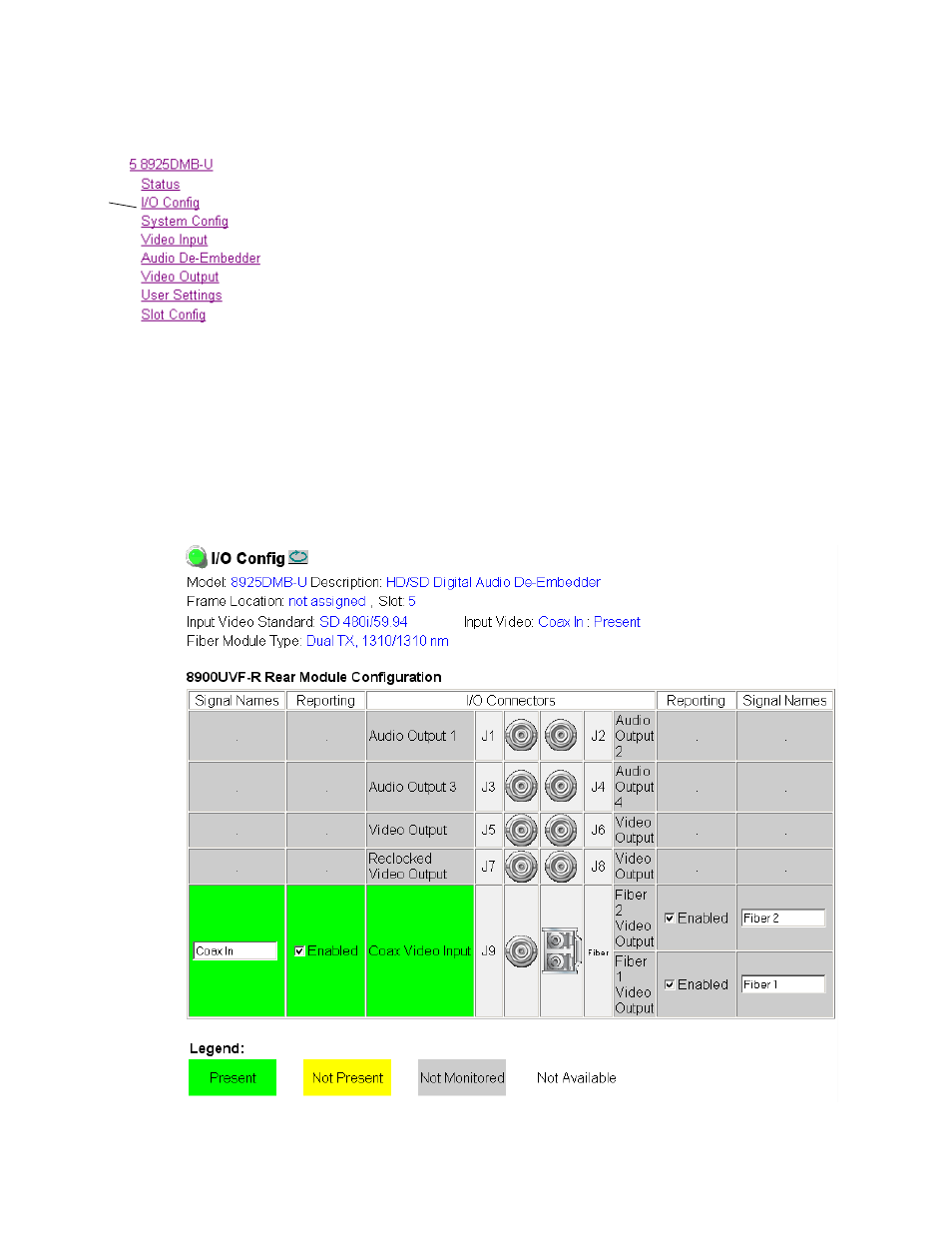

Figure 12. 8925DMB-U I/O Config Web Page
