14 8925DMB-B and -U — Instruction Manual
Installation
Installing Front Module
After installing the rear module and configuring the front module using
local controls if required, install the front module as follows:
1. Remove the front cover of the frame.
2. Locate the front slot corresponding to the rear module you have already
installed.
3. Insert the front module so that the plastic card guides on the module
top and bottom edges go over the upper and lower raised rail guides on
the right of the top and bottom of the slot (
Figure 3 ).
4. Carefully slide the module into the rear connector, making sure the
fiber optic connector on the 8925DMB module fits into the rear module
properly.
5. Lock the front module ejector tab into the locking pin.
6. Replace the frame front cover during operation to maintain optimum
cooling conditions.

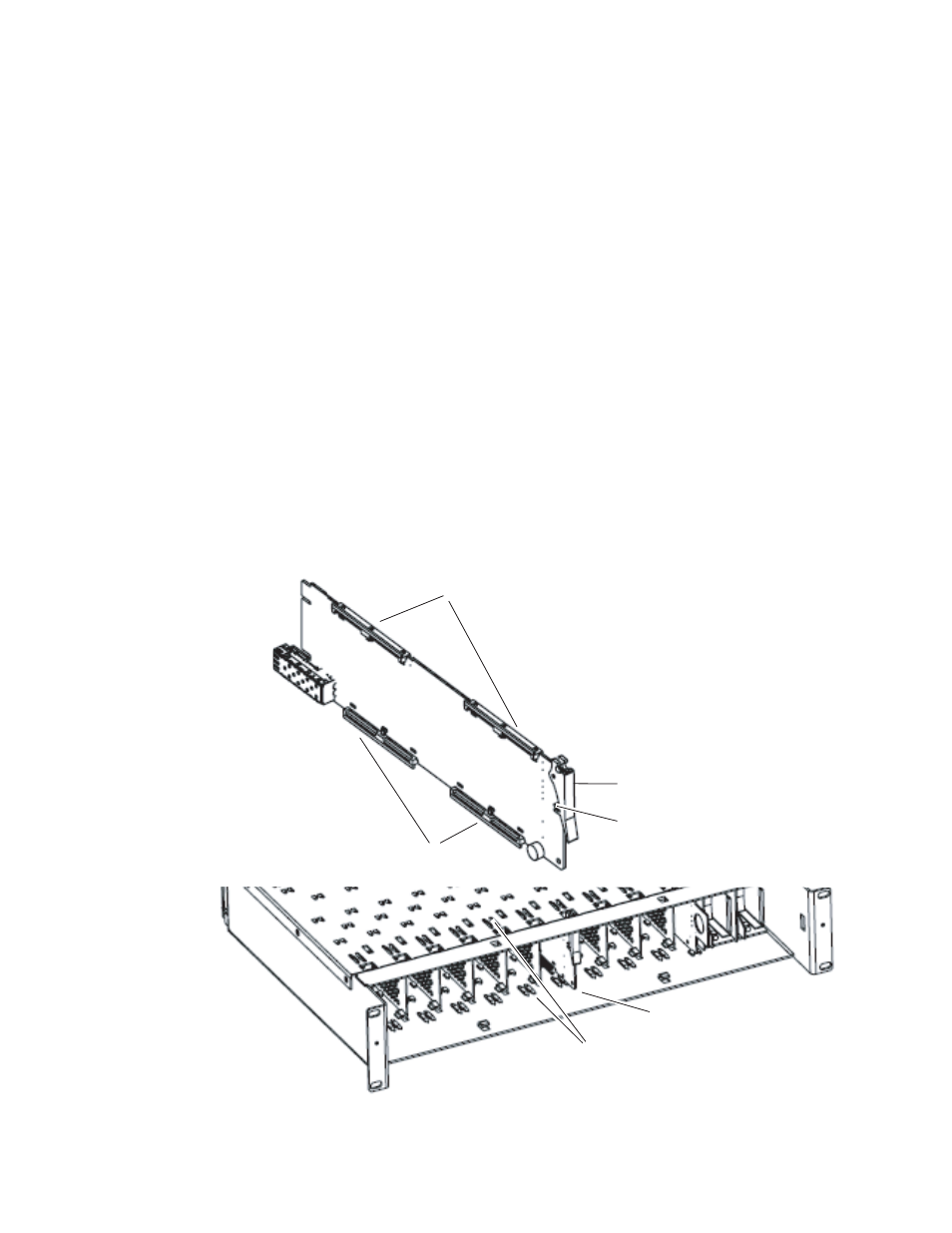

Figure 3. Front Module Installation
8479_03
Slide top and bottom card carriers on module
over top and bottom guides on right of slot.
Module installed
Locking Pin
Card Carriers
Card Carriers
Front Module Side View
Ejector Tab
