10 8925DMB-B and -U — Instruction Manual
Installation
Installation
The front and the rear modules are delivered together as a set. Two choices
are available: one for balanced audio outputs with the 8900BVF-R rear
module and one for unbalanced audio outputs with the 8900UVF-R rear
module.
The 8925DMB front module can be plugged in and removed from a
GeckoFlex frame with power on, without disrupting operation on adjacent
running modules. When power is applied to the module, LED indicators
reflect the initialization process (see
Power Up on page 19 ).
Module Placement in the GeckoFlex Frame
There are ten rear and front slot locations in the 2 RU frame to accommodate
either audio or video modules ( Figure 1 ). The 8925DMB module set may be
plugged into any one of the available GeckoFlex frame slots. The 8925DMB
requires a single rear slot.
Note Use anti-static precautions when handling the module. As the module can be
changed when the GeckoFlex is powered on, before removing the cover,
please put an anti-static bracelet tied to a metal part of the frame.

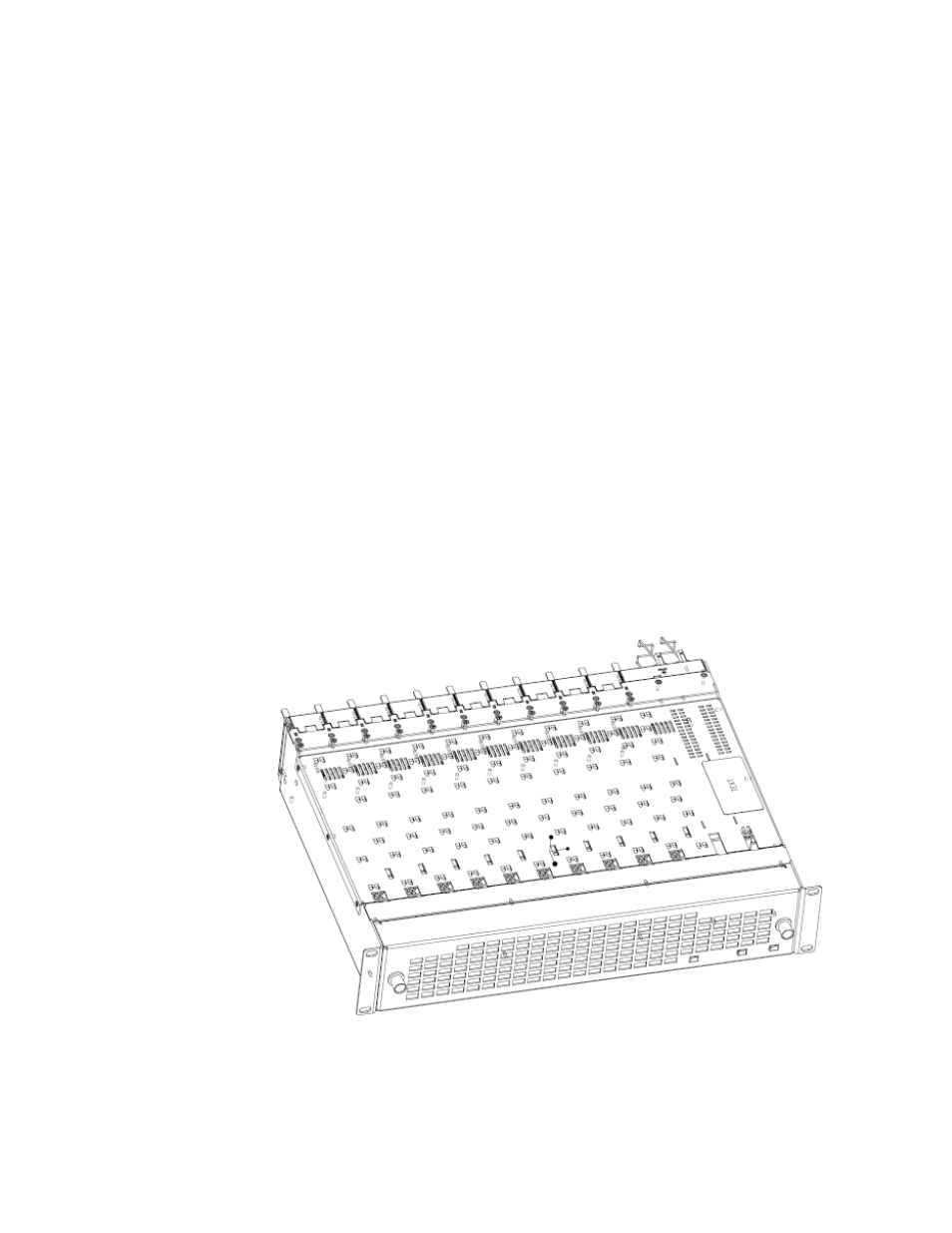

Figure 1. GeckoFlex Frame
