3.4.9 The Info panel
When the 3DX-3901 is included in an iControl
environment, certain information about the card should be
available to the iControl system. The user can enter labels
and comments that will make this card easy to identify in a
complex setup. This information is entered via the Info
control panel. This panel also shows other information
about the card.
Rear Type:
Identifies the installed rear panel
Optical Fiber Module:
Identifies the SFP module, if any, that is
installed in the rear panel
Label:
type the label that appear for this 3DX-3901
when it appears in iControl applications
Short Label type the short-form label that iControl uses
in some cases (8 characters)
Source ID
type a descriptive name for this 3DX-3901
Comments: type any desired text
The remaining data boxes show manufacturing
information about this card.
• Details…: Reports the Firmware version, service
version, and panel version for this card
• Advanced…: Shows the Miranda LongID for this card.
The Miranda LongID is the address of this 3DX-3901 in
the iControl network.
(Inputs and Outputs windows – future use)

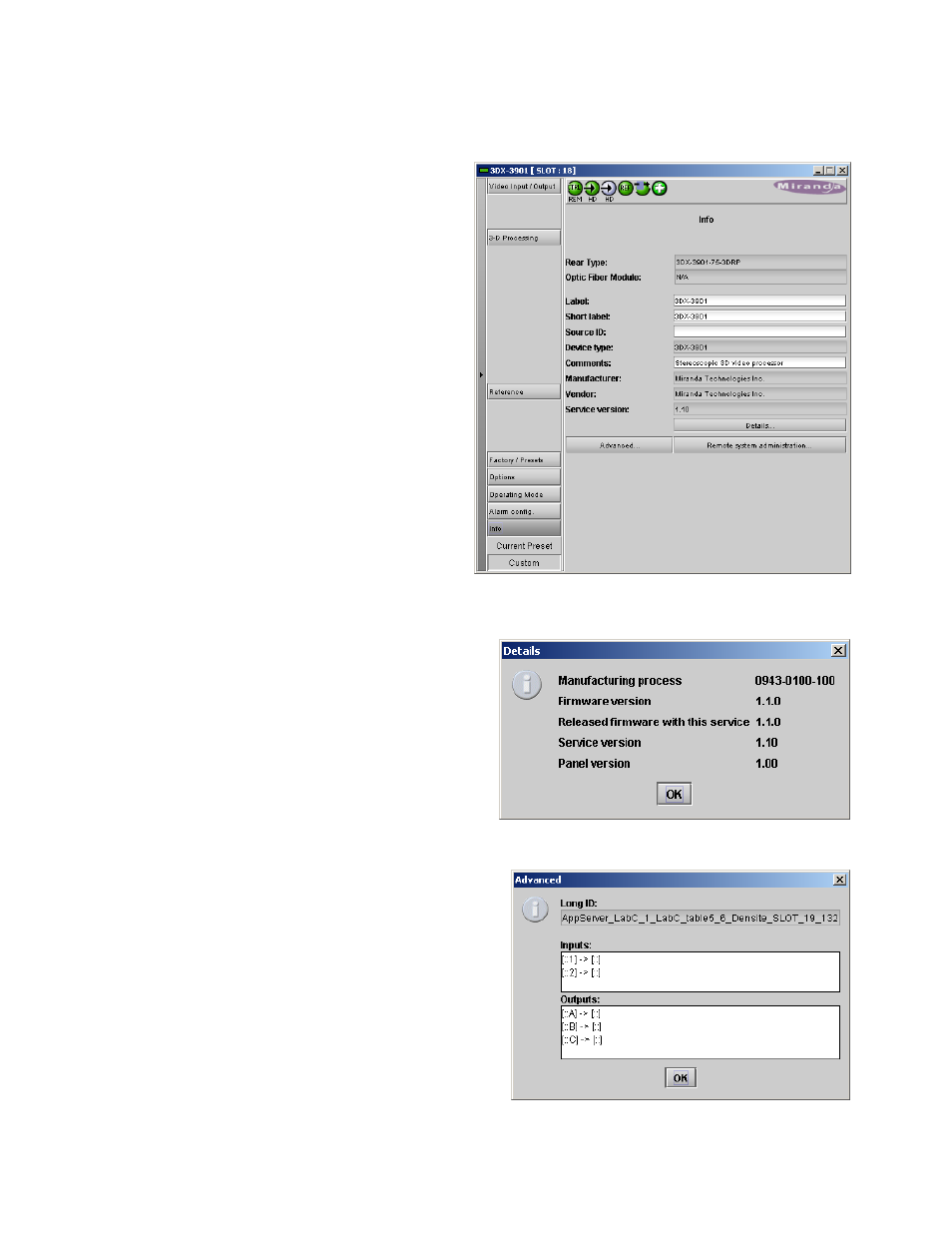

Figure 3.30 Advanced window
Figure 3.28 Info panel
Figure 3.29 Details window
