Grass Valley 3DX-3901 - Manual (Page 26)

GUIDE TO INSTALLATION AND OPERATION
22 | 3DX-3901
Restore profiles from disk…
Click this button to open an Open dialog box within which you
can locate and select a valid 3DX-3901 profile file.
• Click Open to read the contents of the file and to
reconfigure this 3DX-3901’s profiles according to its
contents
• While the reconfiguration is in progress, the Transfer
Status box on the right of the Copy profile from line will
indicate Working against a yellow background
• When the reconfiguration is complete, the Transfer
Status box on the right of the Copy profile from line will
indicate Succeeded against a green background
Copy profile to section
This line shows other 3DX-3901 cards that are available on the iControl network, each identified by App server,
Densité frame and slot number, card type and firmware version.
The Profile column shows the same information as is shown for the current card in the Copy profile from line, i.e.
one of the following:
• Current, User1, User2, User3, User4, User5, All
The Select column includes a checkbox to identify which 3DX-3901 cards you wish to copy profiles into from the
current card.
• For convenience, a Select all checkbox is provided in the column header
Click Copy to copy the selected profiles from this card into the selected other 3DX-3901 cards
• While the profile copy operation is in progress, the Transfer Status box on the right of the Copy profile to line
will indicate Working against a yellow background
• When the profile copy operation is complete, the Transfer Status box on the right of the Copy profile to line
will indicate Succeeded against a green background
3.4.6 The Options panel
Three options are available for the 3DX-3901:
• XVP Option (3DX-3901-OPT-XVP)
• Prod
Option (3DX-3901-OPT-Prod)
• Sensio Option
(3DX-3901-OPT-Sensio)
To activate each of these options, you must
• Obtain a license key from Miranda Technologies Inc.
• Type the license key in the box
• Click on ENABLE OPTION to enable the option’s features.

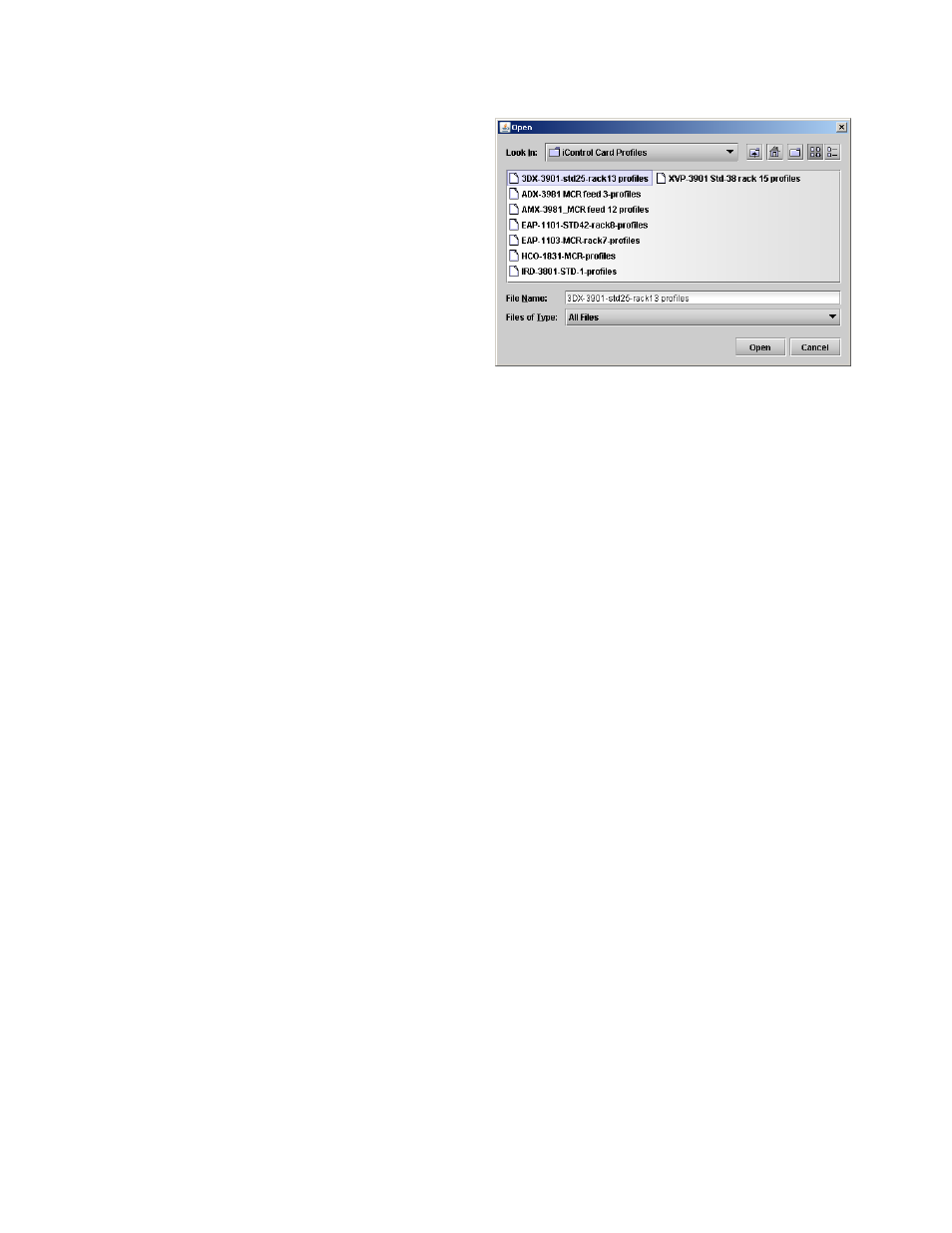

Figure 3.19 Restore Profiles from Disk dialog
