83
FIP-20

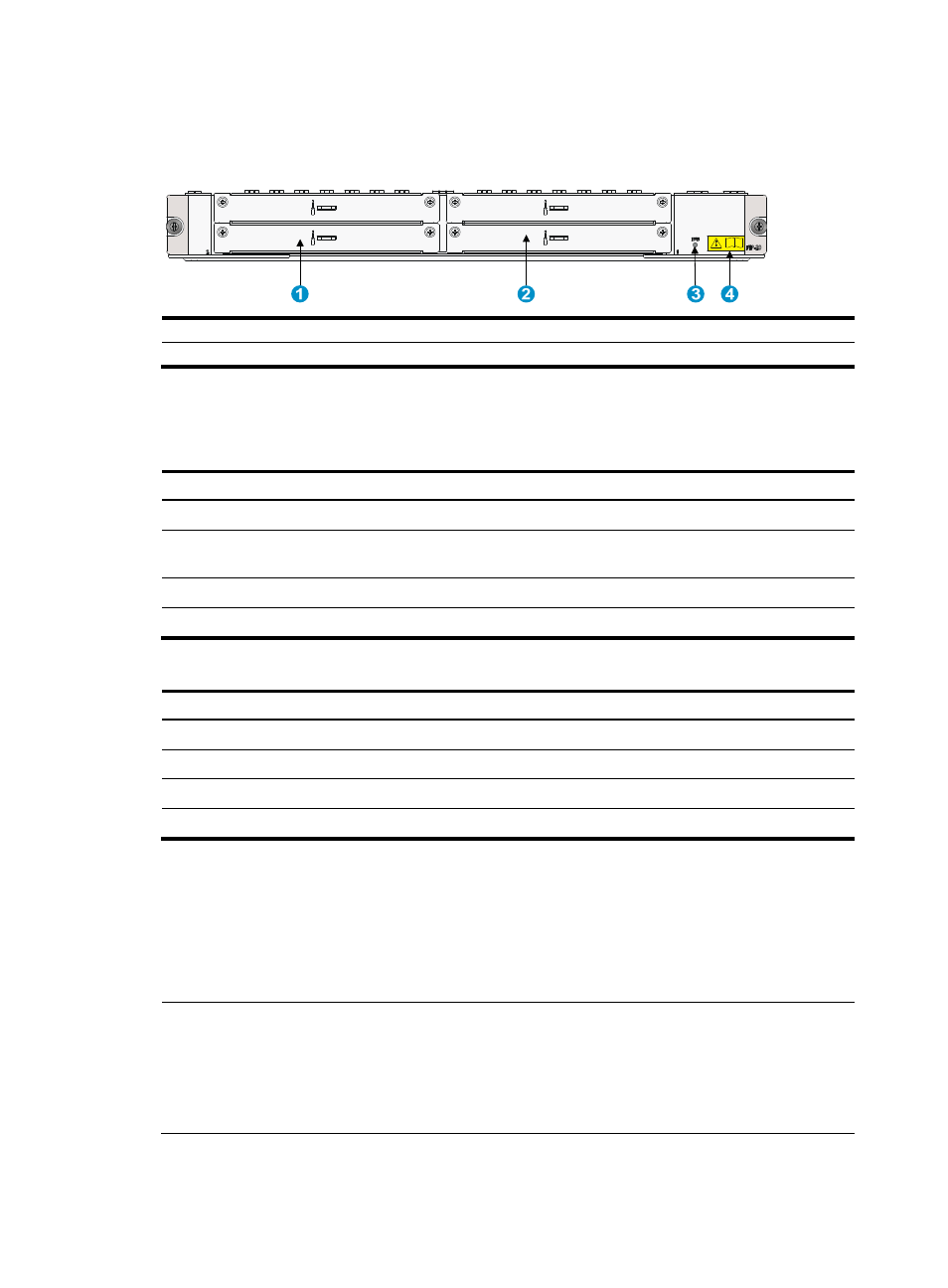

Figure 73 FIP-20 front panel
(1) Slot 2 (2) Slot 1 (3) Status LED
(4) OPEN BOOK mark
The OPEN BOOK mark indicates that the operator must read the following sections before working with
the FIP:
Table 39 References for FIP operations
Operation Reference
Install and remove the FIP See “ Installing a FIP module ” and “ Replacing a FIP module .”
Install and remove interface
modules See “ Installing a HIM ”, “ Installing a MIM ”, Replacing a HIM , and
“ Replacing a MIM .”
Connect network cables See “ Connecting an Ethernet cable .”
Connect optical fibers See “ Connecting a fiber cable .”
Table 40 FIP-20 specifications
Item Specification
HIM 2 HIMs supported
MIM 2 MIMs supported
Hot swapping Supported
Interface module slot 2
Interface modules
You can install HIMs to provide 10-Gbps service processing capability and install MIMs to provide
high-density narrowband aggregation. The HIMs and MIMs can offer a variety of interfaces, including
serial, Ethernet, POS, and E1.
NOTE:
•
No interface modules are supplied with the router. Purchase them yourself.
• An interface module must be installed on a FIP.
• For information about interface module specifications, see H3C SR6600 Routers Interface Module
Guide.
