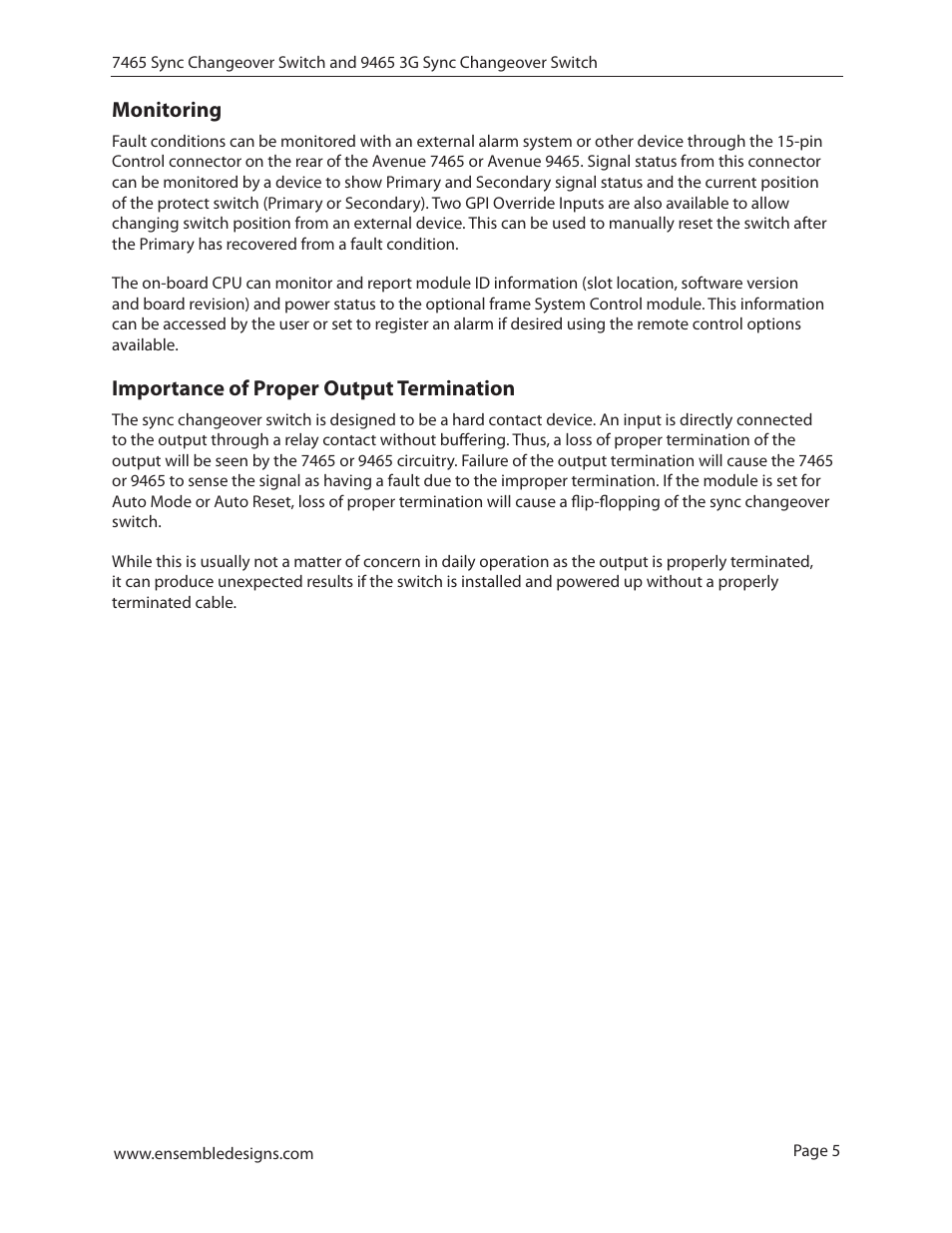

Monitoring, Importance of proper output termination, Monitoring 5 – Ensemble Designs 7465 Sync Changeover Switch User Manual
Page 5
