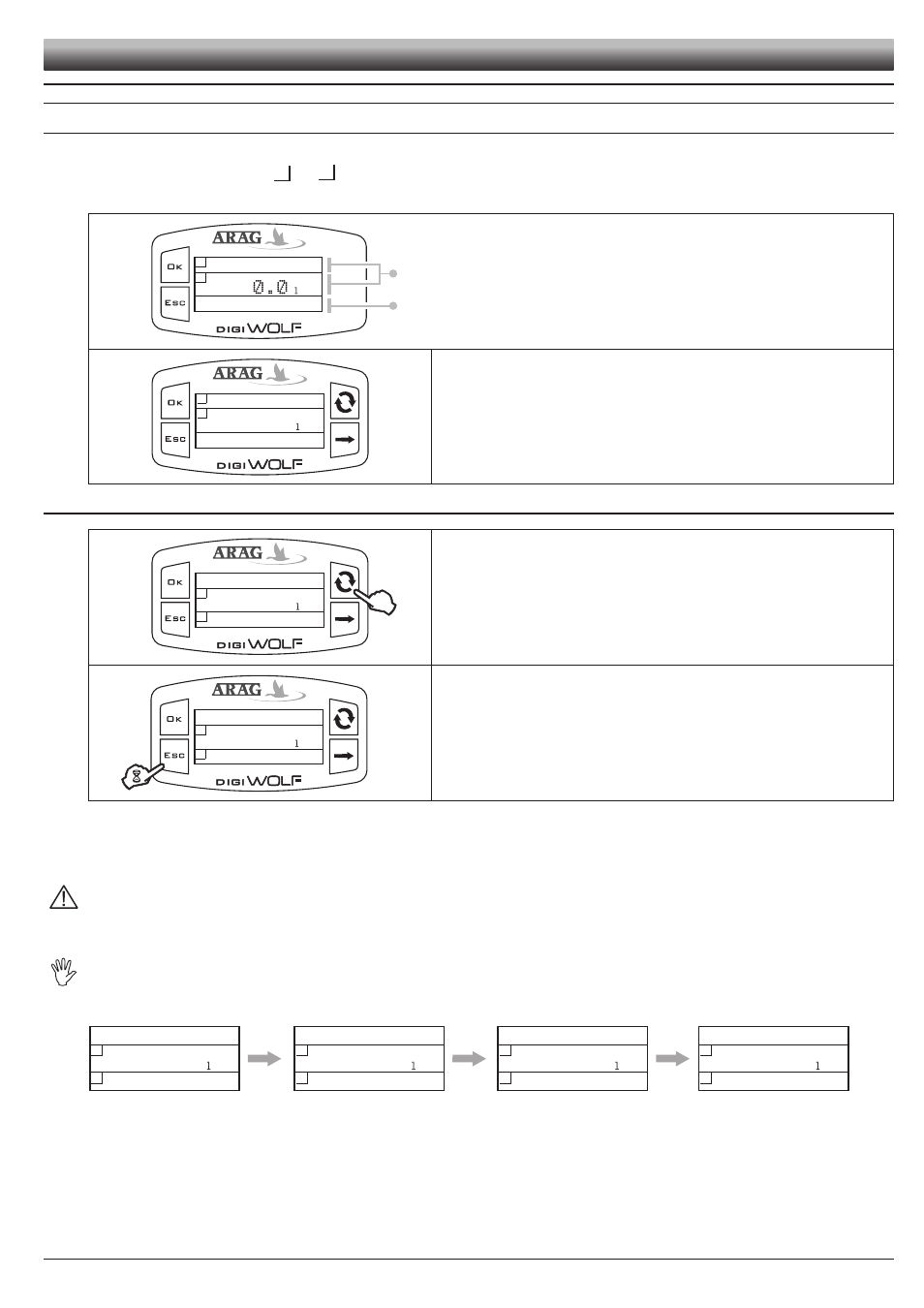

USE (FLOWRATE MODE)
6
USE IN FlOwRATE mODE
6.1
Flowmeter use (FLOWRATE mode)
The main screen shows the display divided into three horizontal sectors.
The sectors showing the symbols
1
and
2
represent the partial totalizers, individually resettable.
The third data represents instant rate value.
0.0 l
2
1
0.0 l/min
6.23 l
2
1
21.84 l/min
6.23
Feed some liquid to the system. The display will start to show the increasing value
of the measured quantity of liquid, and the instant rate value.
6.2
Partial totalizer reset
6.23 l
2
1
21.84 l/min
6.23
To reset a totalizer, it is necessary to visualize it in full.
To do this, press the button several times until the value to zero is in the central
area of the display.
6.23 l
2
1
21.84 l/min
0.00
Press
ESC
key for two seconds. The totalizer will zero.
- Do not place DigiWolf under pressurized water.
- Use the flowmeter only within recommended rate range (Tab. 2 - Par. 2.3.1). Beyond these limits, the flow-meter may give out incorrect data.
- To avoid damaging the flowmeter, do not exceed the maximum rate except for short periods.
ARAG can not be held responsible for damage caused to persons, animals or things from the incorrect or unintended use of Digiwolf or
its parts.
- Do not exceed the max. operation pressure (Tab. 2 - Par. 2.3.1).
Display of the symbol ------ shows that the rate or the totalizer are over the max. displayable value.
Totalizers have floating points and display a max. of 5 figures. Up to 999.99 two decimals are shown, it then drops to 1 and 0 with the tran-
sition to thousands and tens of thousands (Fig. 32).
50.00 l
2
1
21.84 l/min
999.99
1050.0 l
2
1
21.84 l/min
1000.0
10049 l
2
1
21.84 l/min
9999.9
10050 l
2
1
21.84 l/min
10000
...
Partial totalizers
Instantaneous rate
Fig. 28
Fig. 29
Fig. 30
Fig. 31
Fig. 32
