3.1.4 Ceiling pendant mount

Ceiling pendant mount requires the optional adaptor EPTZ 100 CLM.

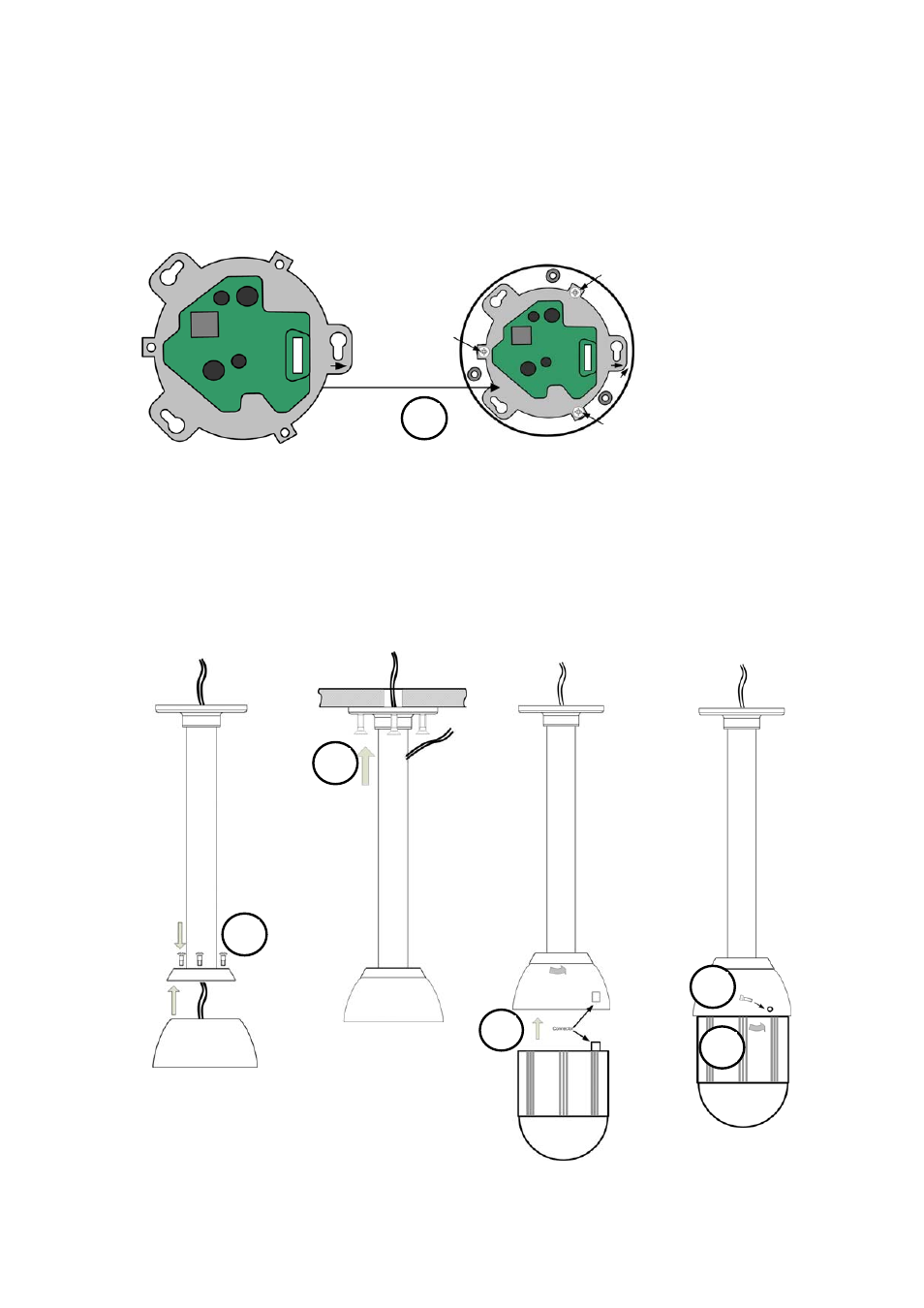

1) Assemble the connector board to the bracket adapter by 3 M4 screws. Follow the red arrow marks at

board and ceiling adapter for correct position.

2) Mount the bracket adapter with the connector board to the EPTZ 100 CLM. For wiring, use the upper

hole or side outlet of the tube.

3) Mount the EPTZ 100 CLM to the ceiling.

4) Plug the dome module in the ceiling adapter. Make sure that position of the camera module connector

fits the correct position of the connector board.

5) After plug-in, turn the camera module some degrees clockwise to latch the camera module.

6) Use the hex key to fix the camera position with the locking screw.
