3.1.3 Wall mount
Wall mount requires the optional bracket EPTZ 100 WLM.

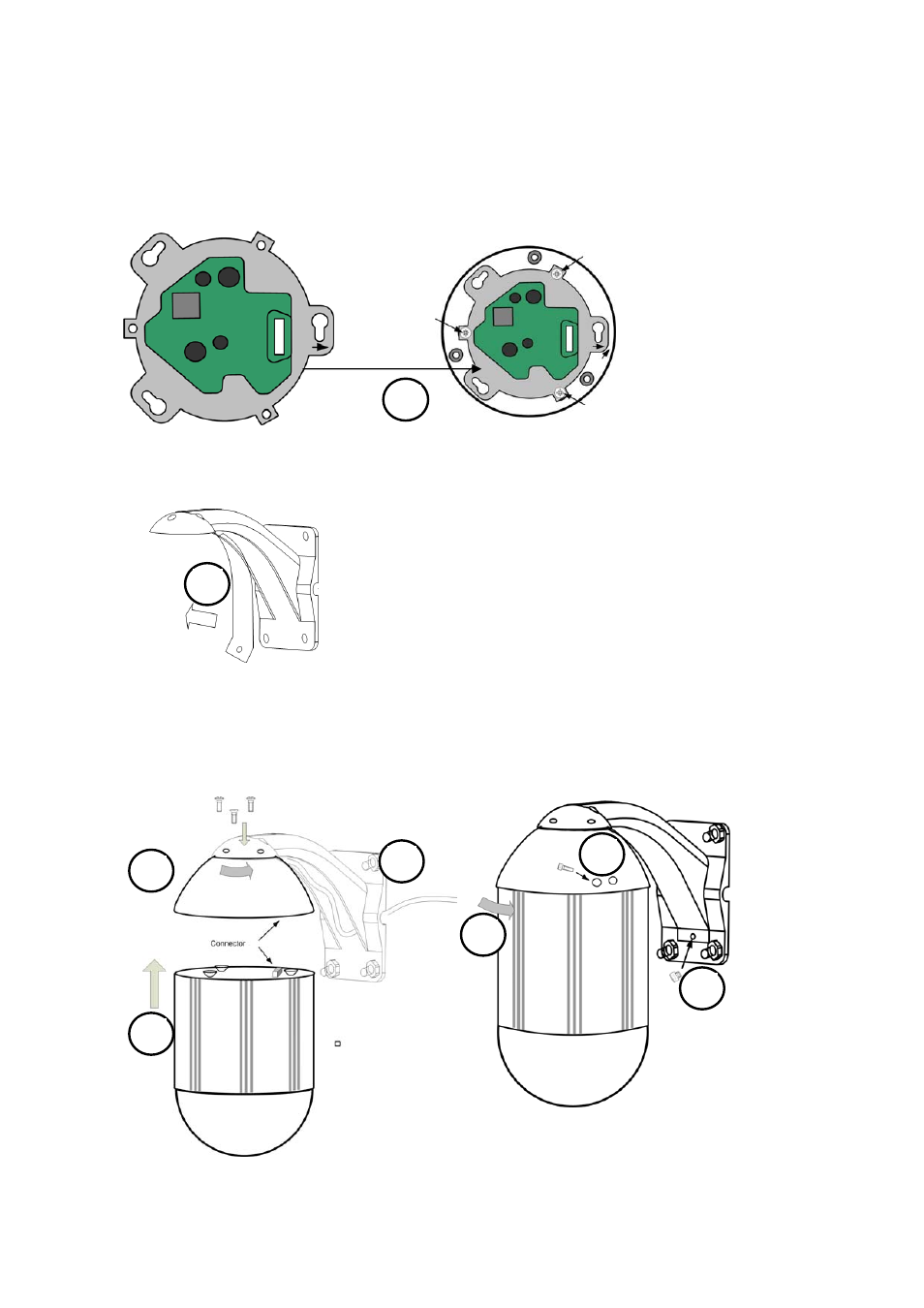

1) Assemble the connector board to the bracket adapter by 3 M4 screws. Follow the red arrow marks at
both board and ceiling adapter for correct position.
2) Remove the cable cover from the wall bracket.
3) Mount the bracket adapter with connector board to the bracket.
4) Mount the bracket to the wall.
5) Plug the dome module in the ceiling adapter. Make sure that position of the camera
module connector fits the correct position of the connector board.
6) After plug-in, turn the camera module some degrees clockwise to latch the camera module.
7) Assemble the cable cover.
8) Use the hex key to fix the camera position with the locking screw.
1
2
3
4
5
6
7
8
