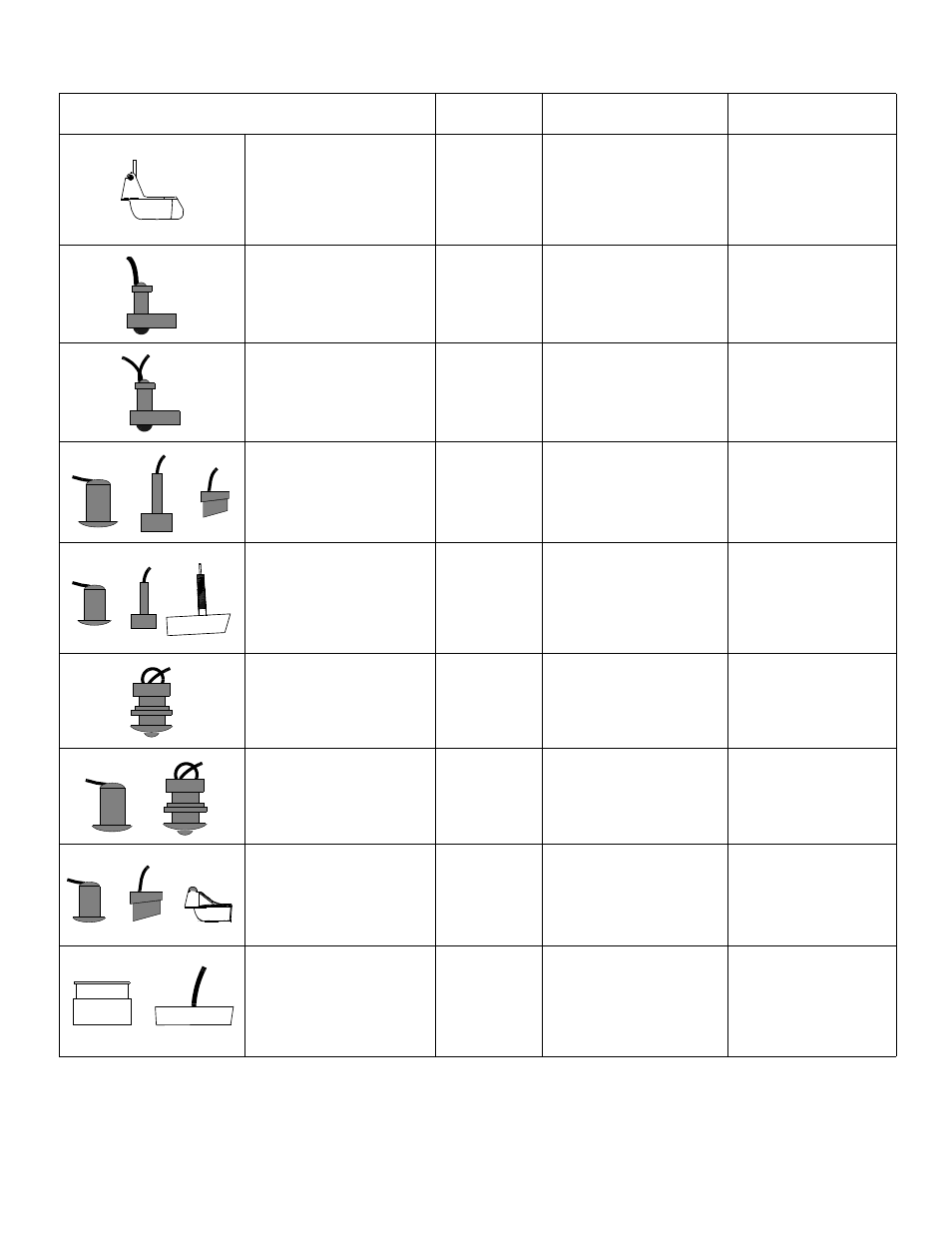

Table 1: Instructions and Materials Needed
Sensor Type
Instruction
Grommets
Sleeving
TRIDUCER
®
multisensor
C332 or C347 cable
A
2 large
(marked 5-7)
C332:
2 small clear
a
2 large clear
b
2 black
C347:
2 large clear
2 black
a. The small clear sleeving is 2.5mm in diameter.
b. The large clear sleeving is 5mm in diameter.
TRIDUCER
®
multisensor
with valve
C344 zip-cable
B
2 small
(marked 3-5)
2 large
(marked 5-7)
4 black
TRIDUCER
®
multisensor
with valve
Two-cable
C9 and C13 cables
B
C9:
2 small
(marked 3-5)
C13:
2 large
(marked 5-7)
4 black
Depth transducer
C2, C13, or C33 cable
B
C2:
2 small
(marked 3-5)
C13, C33:
2 large
(marked 5-7)
2 black
Depth/temperature
C332 or C172 cable
B
C332:
2 large
(marked 5-7)
C172
2 small
(marked 3-5)
C332:
2 small clear
a
2 large clear
b
2 black
C172:
4 large clear
b
2 black
Speed/temperature
C9 cable
B
2 small
(marked 3-5)
2 black
Depth transducer and
Speed/temperature pair
B
Depth:
2 large
(marked 5-7)
Speed/
2 small
Temp:
(marked 3-5)
4 black
Smart™ sensor
NMEA or RS485 output
Depth transducer, or Depth/
temp, or Depth/speed/temp
C189 or C190 cable
B
2 small
(marked 3-5)
4 black
In-hull or External
depth transducer
C44 or C332 cable
B
C44:
2 large
(marked 5-7)
C332:
2 large
(marked 5-7)
C44:
4 small clear
a
4 large clear
b
2 black
C332:
2 small clear
a
2 large clear
b
2 black
or
or
or
or
&
or
or
or
