11Mbps Wireless LAN PC Card User's Manual

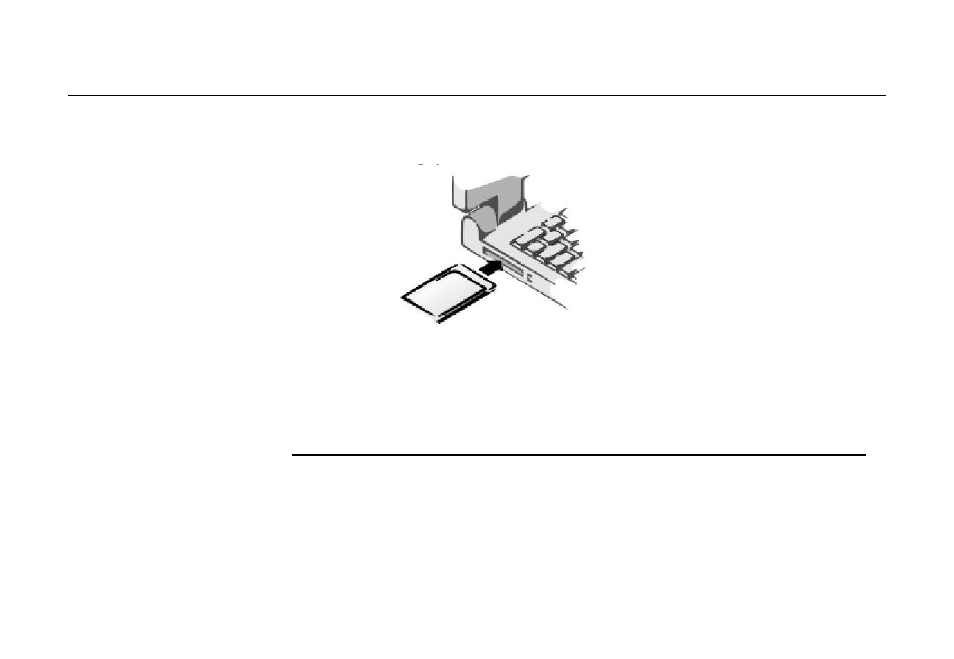

Insert the end of the Wire Insert the end of the Wireless LAN Card into the PCMCIA slot of
our computer with the printed label facing up, and slide it in until it is firmly seated.
Wireless LAN Card Status LEDs
The two LEDs on the Wireless LAN Card indicate connection status and data transfer
operation status, as described below:
LED Color State Description
Power Red On Connected to an Ad Hoc or Infrastructure network.
Blinking Searching for an Access Point or another wireless LAN
computer.
Activity Green Blinking Transmission mode. The faster the LED blinks. The
higher the data exchange rate.
4
The red LED on the Wireless
LAN Card will light when
the Wireless LAN Card is
inserted into the PCMCIA
slot and the computer is
turned on.
