SET-UP INSTRUCTIONS
Attention: Two people are required to assemble indoor
chimenea.
1. Remove packing material from top of box.
2. Lift stack casting section out and set aside.
3. Remove remaining items and packing from inside body
casting.
4. Lift body casting out of box and sit on flat surface near desired
final location. Leave adequate room around body casting to
work. Locking ring for stack casting should be facing down.
Two people are required to remove casting from shipping
carton.

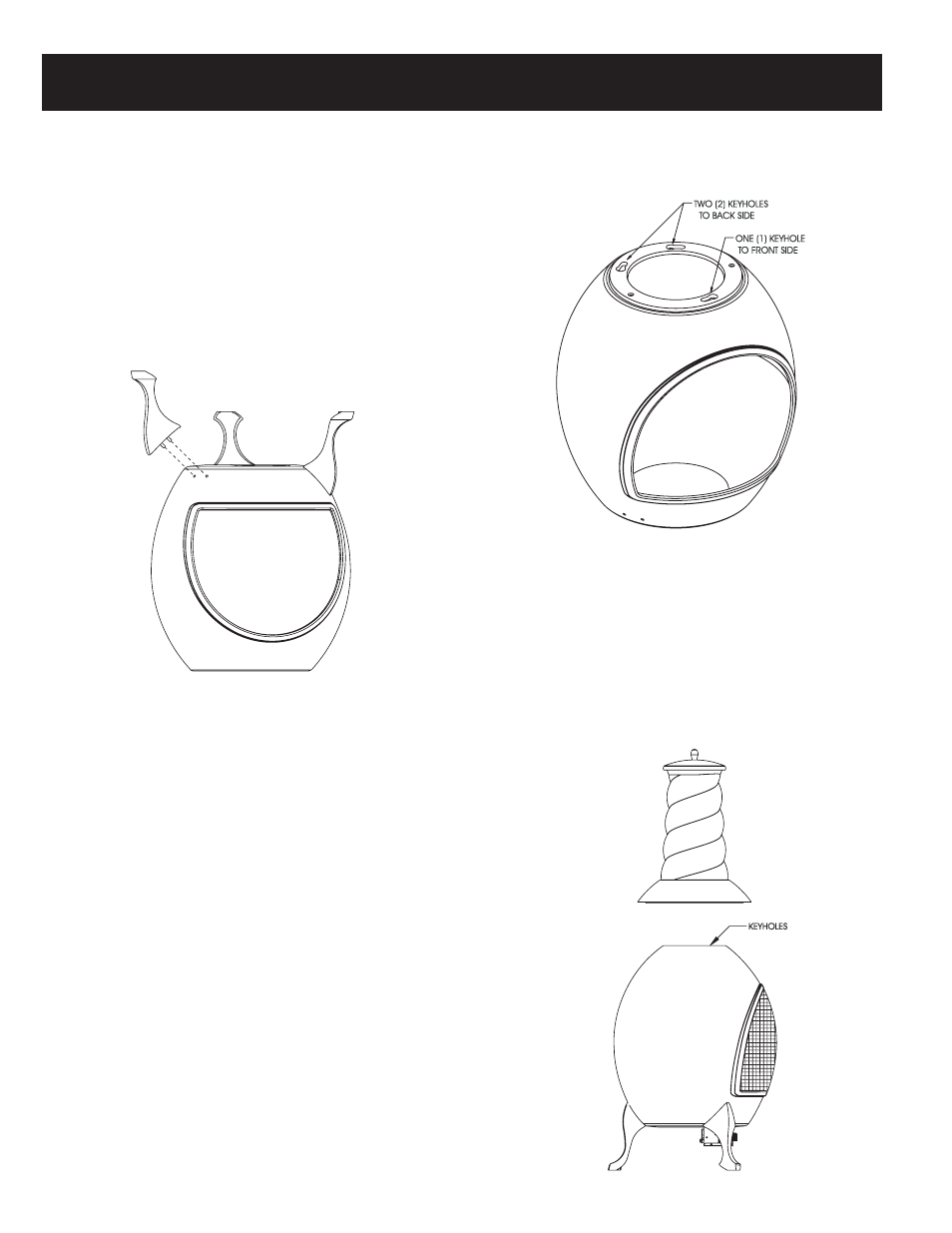

5. Remove washers and nuts from three legs. Install the three legs
using the bolts, washers and nuts provided. Reach through the
opening in the body casting to tighten the leg bolts securely.
See Figure 4.
Figure 4
6. Remove the bottom block off plate from stack casting. The
bottom block off plate is a half-moon shaped, 11 inch length,
black metal plate located within the stack casting.
7. Place bottom block off plate onto exterior, bottom of body
casting. Align clearance holes in bottom block off plate with
bolt holes in body casting.
8. Place a lock washer followed by a flat washer onto 3/8 inch
bolt. You will need to use three (3) 3/8 inch bolts to attach
bottom block off plate to body casting.
Attention: Start each bolt partially into body casting in order
to properly align bolts for attachment of bottom block off plate
to body casting.
9. Invert the body casting to sit on its legs.
10. Holding the burner support plate securely with two hands,
tip the burner assembly to a position where it will fit through
the front door opening. Guide the gas valve through the large
hole in the bottom of the body casting. The burner support
plate will come to rest on the three flat mounting tabs that
protrude from the body casting wall and the gas valve should
be approximately centered between the left leg and the right
leg.
11. Align clearance hole on burner support plate with threaded
hole in front of flat mounting tab. Attach burner support plate
to mounting tab with one (1) 1/4-20 x 3/8" screw. Install (2)
3-1/2" bolts through burner support bottom, casting bottom
and block off plate and secure with (2) nuts.
12. One (1) keyhole will be adjacent to front side (opening) on
body casting. Two (2) keyholes will be adjacent to back side
(rear) on body casting. Attention: If the keyhole positions
are reversed on body casting DO NOT attempt to operate the
indoor chimenea. An unsafe overheating condition of the wall
could occur. Contact your qualified serviceman or dealer for
replacement parts. See Figure 5.
Figure 5
13. Located on bottom of stack casting are three securing bolts.
Unscrew securing bolts approximately 1/2". Attention: Do not
remove securing bolts from bottom of stack casting. Place the
stack casting on top of the body casting aligning the three
securing bolts on the stack casting with the large end of the
"keyhole" slots on the securing ring. Once the stack casting
is in place, twist to lock it down. See Figure 6.
14. To install door screen, hook top of door screen onto body
casting. Raise door screen upward. Pivot bottom of door
screen inward to hook bottom of door screen, and then lower
screen. Do not operate without screen properly installed.
Figure 6
