featUres description

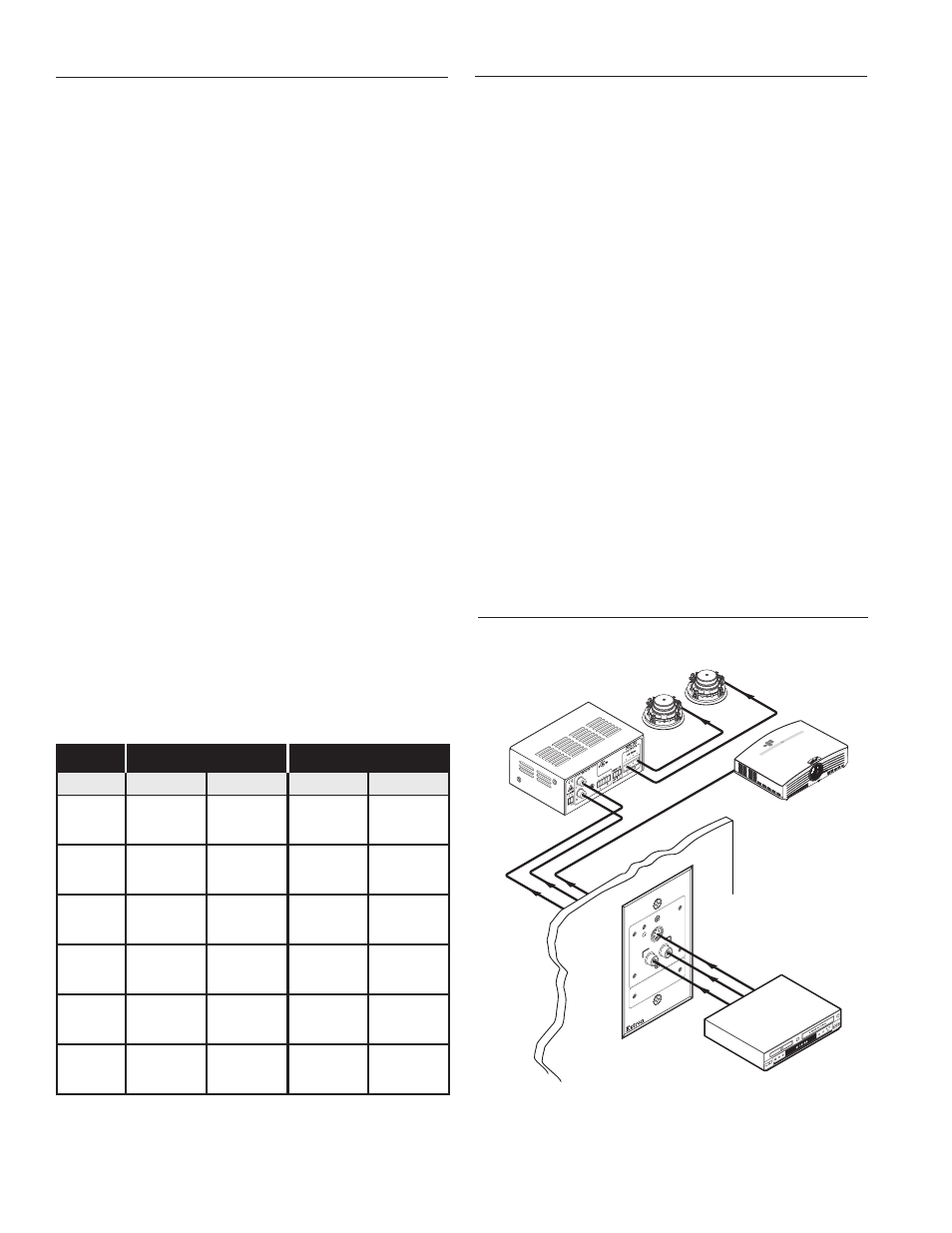

application diagraM
CPM101
SV EQ 10 0 M
AA P
AU DI O IN
VID EO IN
R
L
Extron
MPA 122
Mini Power
Amplifier
Extron
SI 26X
Two-way Ceiling
Speakers
Projector
Extron
SVEQ 100 MAAP
S-video Line Driver
S-video
Audio
Audio
DVD
Model Inputs Outputs
Video Audio Video Audio
CVEQ 100 Composite
BNC (1)
Unbalanced
RCA (2)
Composite
BNC (1)
Bal./Unbal.
3.5 mm captive
screw (1)
SVEQ 100 S-Video
BNC (2)
Unbalanced
RCA (2)
S-Video
BNC (2)
Bal./Unbal.
3.5 mm captive
screw (1)
CVEQ 100 D Composite
RCA (1)
Unbalanced
RCA (2)
Composite
BNC (1)
Bal./Unbal.
3.5 mm captive
screw (1)
SVEQ 100 D S-video 4-pin
mini DIN (1)
Unbalanced
RCA (2)
S-Video
BNC (2)
Bal./Unbal.
3.5 mm captive
screw (1)
CVEQ 100
AAP/MAAP
Composite
RCA (1)
Composite
RCA (2)
Composite
BNC (1)
Bal./Unbal.
3.5 mm captive
screw (1)
SVEQ 100
AAP/MAAP
S-video 4-pin
mini DIN (1)
Unbalanced
RCA (2)
S-Video
BNC (2)
Bal./Unbal.
3.5 mm captive
screw (1)
I/O CONNECTIVITY
The CVEQ 100 Series and SVEQ 100 Series are one input, one
output, high-performance line drivers for composite video and
S-video, respectively, and stereo audio. They are ideal for applications
in which video and audio signals must be routed over long distances.
The CVEQ 100 Series and SVEQ 100 Series feature independent gain
and EQ adjustments which compensate for signal losses due to long
cable runs. The gain control compensates for signal voltage losses due
to cable resistance, and allows for brightness adjustment by varying
the overall voltage of the signal. EQ, or Equalization, compensates for
loss of sharpness and high frequency detail due to cable capacitance.
Both gain and EQ condition the video signal, offering optimum
picture quality regardless of cable length.
All models feature active audio buffering which converts unbalanced
audio signals to balanced line level and simplifi es integration of
consumer-grade A/V products in commercial or professional-grade
systems. Balanced audio signals are less susceptible to noise, and due to
the inherent +6 dB signal gain, allow for cable runs up to 1,000' (300 m).
The CVEQ 100 Series and SVEQ 100 Series are available in a variety of
form factors to fi t different needs. The CVEQ 100 and
SVEQ 100 are housed in quarter-rack width metal enclosures which
are perfect for rack or tabletop mounting in both permanent or
rental and staging applications. The Decora-mount CVEQ 100 D
and SVEQ 100 D provide an attractive, wall-mountable solution for
environments such as auditoriums, boardrooms, and lecture halls.
The AAP - Architectural Adapter Plate and MAAP - Mini Architectural
Adapter Plate versions mount easily in Cable Cubby
® furniture-
mountable access enclosures, HSA - Hideaway Surface Access
enclosures, fl oor boxes, and similar applications.
n Long distance video line driver – Drives composite video or
S-video up to 1000' (300 m) on Extron MHR or equivalent cable.
n Long distance audio line driver – Drives stereo audio up to 1000'
(300 m) on Extron STP or equivalent cable.
n Adjustable gain control – Compensates for signal voltage losses
due to cable resistance.
n Adjustable EQ control – Compensates for loss of sharpness and
high frequency detail due to cable capacitance.
n Buffers and balances audio input – Converts unbalanced audio
signals to balanced line level signals.
n Selectable stereo or dual mono audio output - on all models
except CVEQ 100 and SVEQ 100 – Choice of stereo audio or
actively-summed L+R mono audio on both outputs simplifi es
integration in program and distributed audio system designs.
n Compatible with NTSC, PAL, and SECAM
n Choice of tabletop / rack-mount, wall mount, or architectural
mount versions
n External universal power supply included – Provides worldwide
power compatibility.
