MAINTENANCE
63
The lifting pole (C) is fastened on the bottom
side of the bracket with a bolt (D). Furthermore,
the lifting pole is supported by a ring (E), which
is placed in the hole of the bracket.

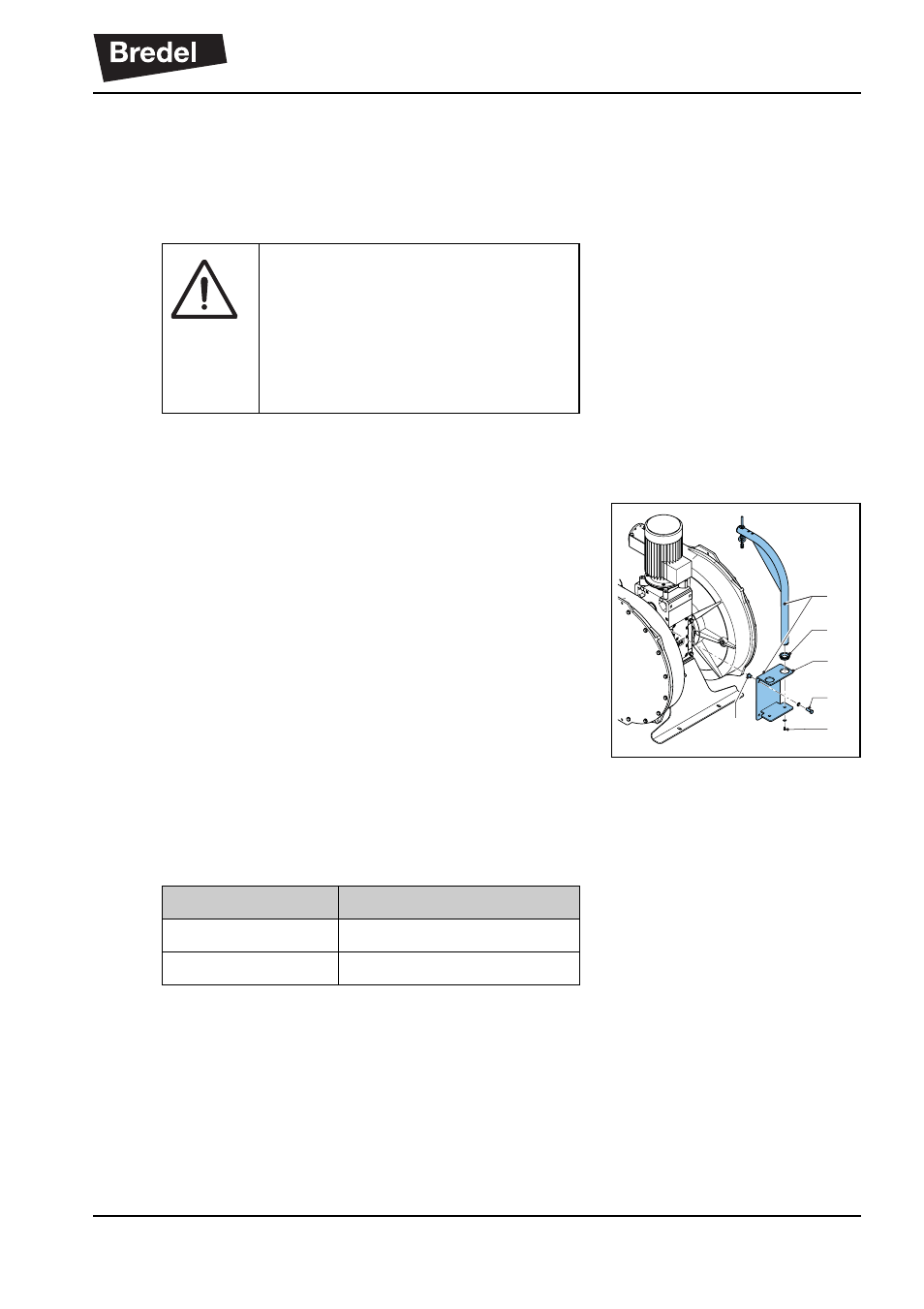

8.9.5 Installing the cover lifting device (CLD) on a
vertical configuration
1. Define the position
The cover lifting device (CLD) must be mounted
with the help of a female threaded bush on the
gear reducer. This can be done on both sides of
the gear reducer. Refer to the illustration.
2. Fit the bracket
Fit the bracket (A) with the supplied fasteners
(B) and female threaded bush (F) on the gear
reducer. The bush should be placed in the
spacing of the gear reducer used for attaching
the gear reducer to a frame or support.
The torque on the bolts should be as given in
the table below.
3. Insert the lifting pole.
WARNING
Do not exceed the maximum
allowed lifting weight of 200 kg/
440 lbs during the lifting of the
cover. This is also indicated on the
CLD.
A
B
E
C
D F
Bolt size Torque
M16 210 Nm
M20 400 Nm
