MAINTENANCE
62

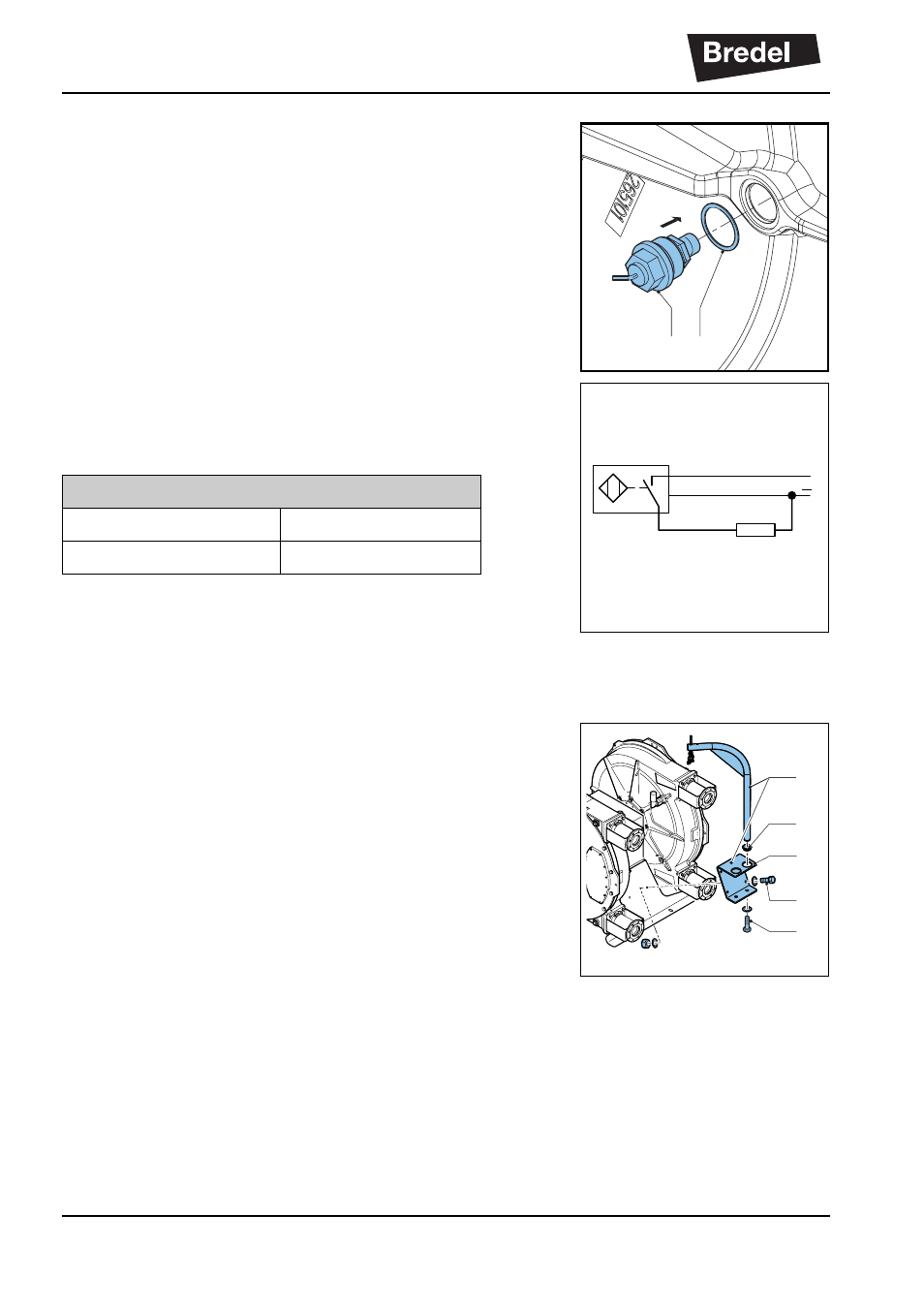

6. Fit the plug with the inductive sensor (A)
together with sealing ring (B) on the pump
housing.
7. Refill the pump housing to the proper level with
Bredel lubricant.
8. Connect the sensor electrically via the 2 meter
long PVC cable (3 x 0,34 mm
2
). Refer to
connection scheme below.
8.9.4 Installing the cover lifting device (CLD) on a
horizontal configuration
1. Define the position.
The cover lifting device (CLD) must be mounted
on the frame on the opposite position of the
motor side. Refer to the illustration.
2. Fit the bracket.
Fit the bracket (A) with the supplied fasteners
(B) on the frame of the unit.
The torque on the bolts should be 210 Nm.
3. Insert the lifting pole.
A B
BN
BU
BK
+
pnp
Specifications
Voltage 10 ... 30 V DC
Current Max. 150 mA
A
B
E
C
D
