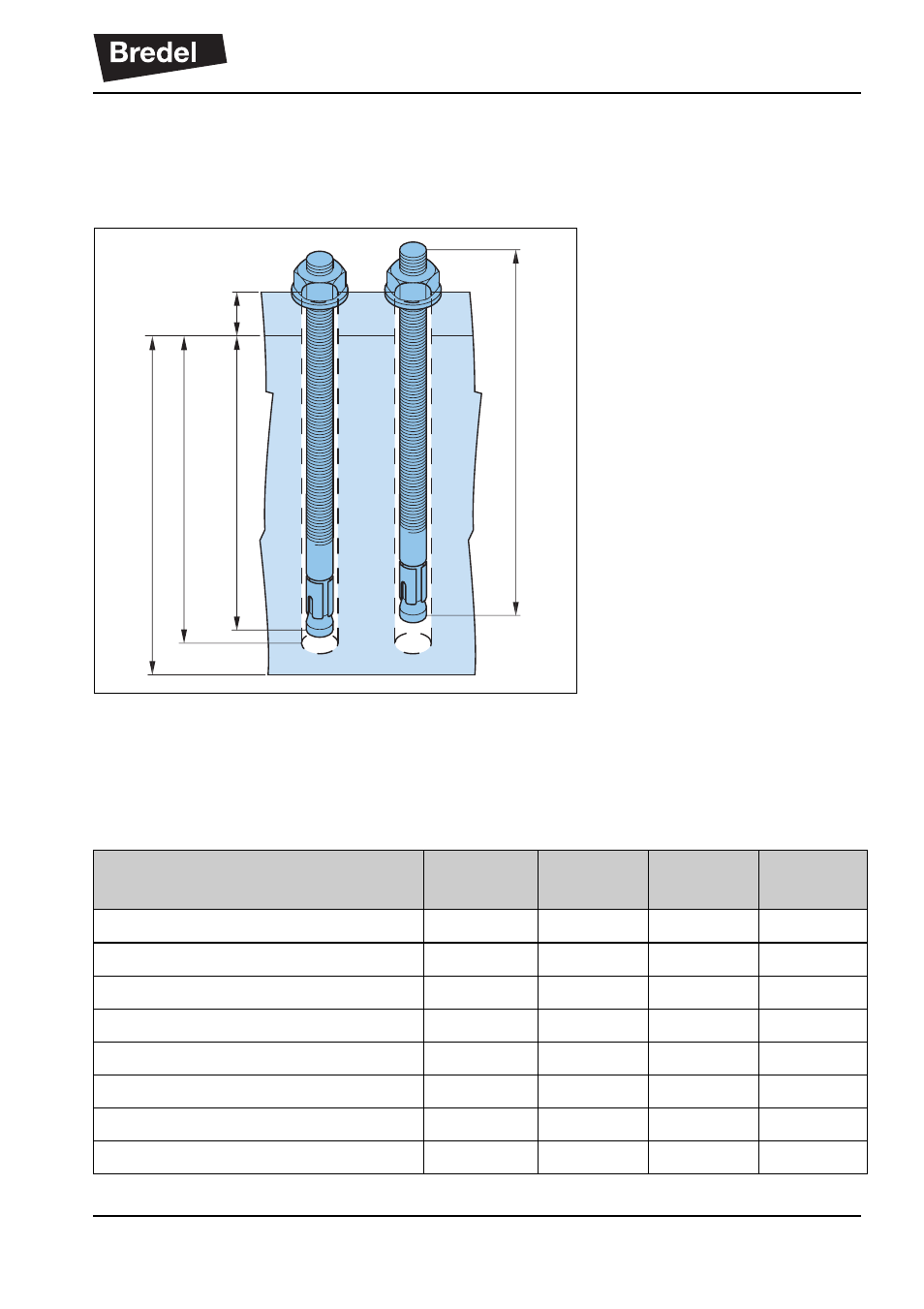

INSTALLATION
29
3.
Use a hammer to drive the anchor into the bore.
4.
Tighten the bolt to the applicable moment
setting (M
D
).
d
a
:
Min. material thickness
t:
Min. drill depth
h
s
:
Min. hole depth
d:
Foundation depth
l:
Anchor bolt depth
d
hs
da
t
l
Bredel
265
Bredel
280
Bredel
2100
Flange dimensions
d
a
[mm]
10
15
15
Flange hole dimensions
[mm]
18 x 30
22 x 45
22 x 45
Bredel part no.
F550041
F550048
F550048
Bolt thread
M16
M20
M20
Bolt length
l [mm]
145
145
145
Foundation height
d [mm]
250
250
250
Drill diameter
Ø [mm]
16
20
20
Min. drill depth
t [mm]
110
110
110
