Preparing to Operate the 1330
Installing the Forms – Continuous Forms Module
Forms are fed into the 1330 through the slot in the front of the printer, and exit out the
rear slot in the top, as illustrated in Figure 2-14.
Open for Top
Paper Exit
Module Flap
Front Slot
Optional Stand

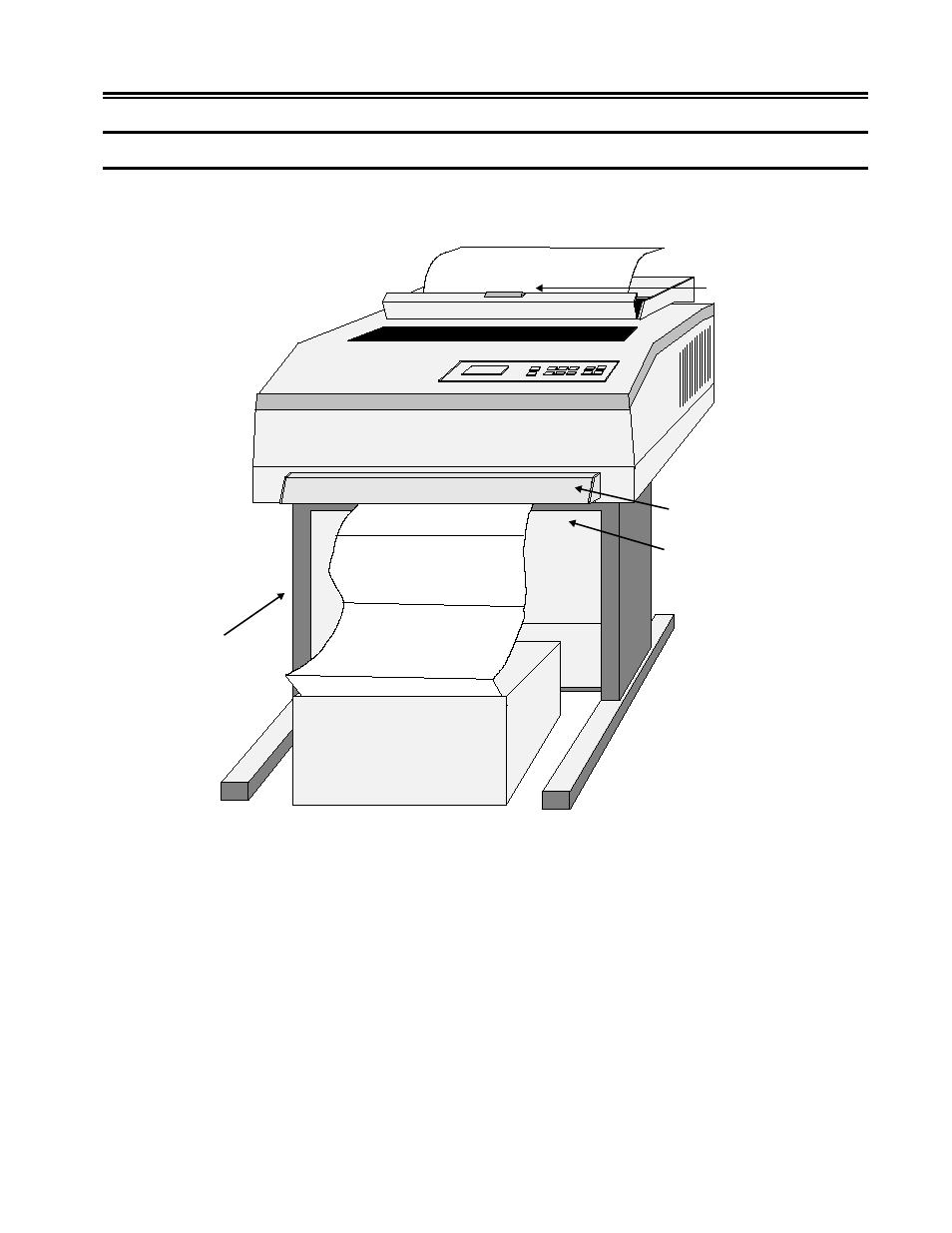

Figure 2-14. Paper Feed Slots
To install the forms, follow these steps:
1.
If the printer is powered on, press the Stop key to place the 1330 in Stop mode.
2.
Raise the printer cover.
3.
Open the tractor doors. Refer to Figure 2-15. If you are reloading paper, remove any
paper remaining in the printer.
To remove paper, pull the pinfeed holes on the sides of the paper away from the
tractor pins, tear off the paper above the tractors, and gently tug the paper a few
inches from where it enters the printer.
