7
Arrangement

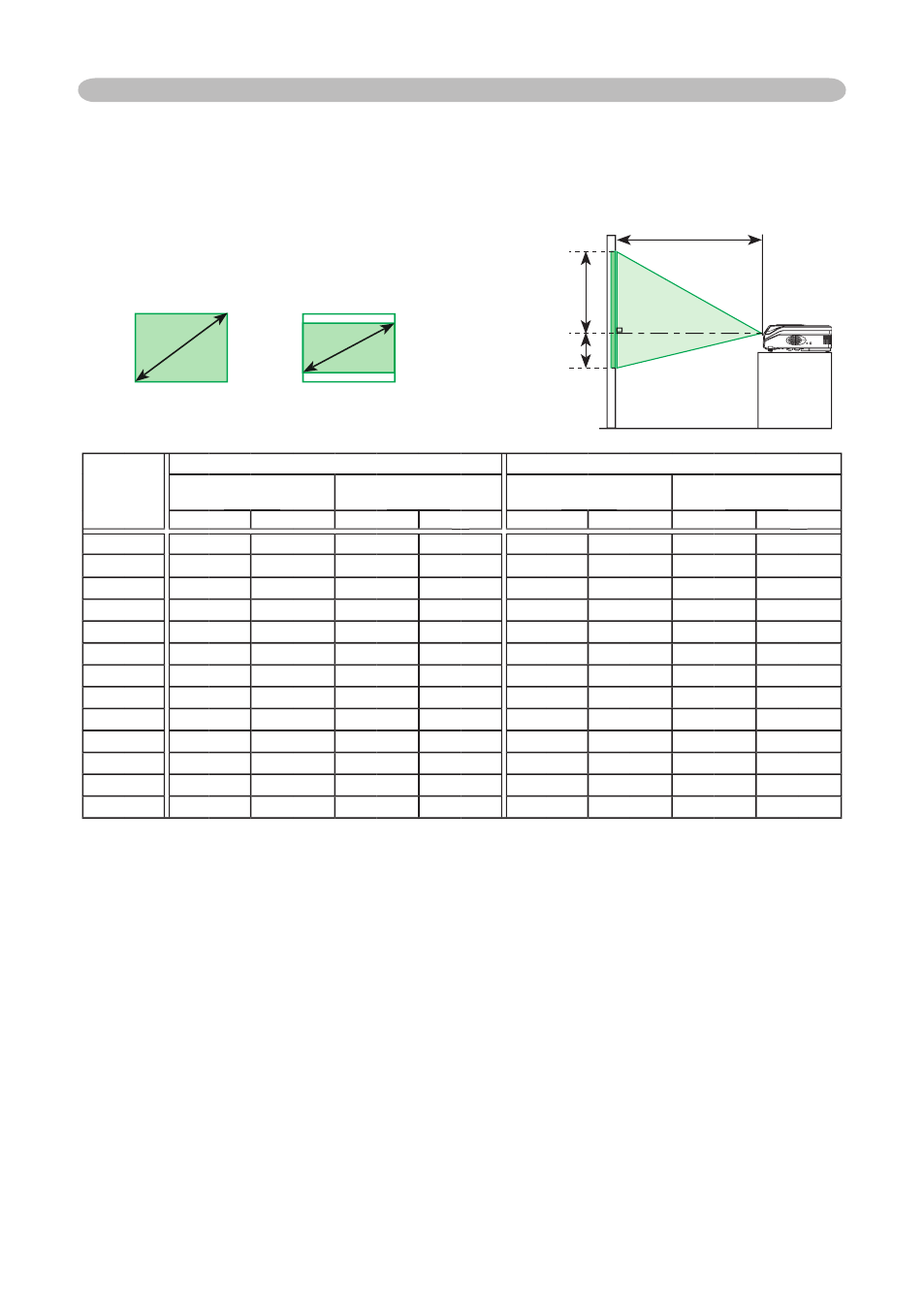

Refer to the illustrations and tables below to determine the screen size and projection distance.
The values shown in the table are calculated for a full size screen: 1024 x 768
(a) The screen size (diagonal)
(b) Distance from the projector to the screen (±10%)
(c) The height of the screen (±10%)
Setting up
4:3
(a)
16:9
(a)
(c) up
(b)
(c) down
(b)
For the model 8914/8915
(a) Screen
size
[inch (m)]
4 : 3 screen 16 : 9 screen
(b) Projection distance
[m (inch)] [m (inch)] [m (inch)]
(c) Screen height
[cm (inch)] [cm (inch)] [cm (inch)]
(b) Projection distance
[m (inch)] [m (inch)] [m (inch)]
(c) Screen height
[cm (inch)] [cm (inch)] [cm (inch)]
min. max. down up up up min. max. down up up up
30 (0.8) 0.9 (35) 1.1 (42) 5 (2) 41 (16) 1.0 (38) 1.2 (46) -1 (0) 36 (14)
40 (1.0) 1.2 (47) 1.4 (57) 6 (2) 55 (22) 1.3 (51) 1.6 (62) -2 (-1) 48 (19)
50 (1.3) 1.5 (59) 1.8 (71) 8 (3) 69 (27) 1.6 (65) 2.0 (78) -2 (-1) 60 (24)
60 (1.5) 1.8 (71) 2.2 (86) 9 (4) 82 (32) 2.0 (78) 2.4 (94) -2 (-1) 72 (28)
70 (1.8) 2.1 (83) 2.6 (100) 11 (4) 96 (38) 2.3 (91) 2.8 (110) -3 (-1) 84 (33)
80 (2.0) 2.4 (96) 2.9 (115) 12 (5) 110 (43) 2.6 (104) 3.2 (126) -3 (-1) 97 (38)
90 (2.3) 2.7 (108) 3.3 (130) 14 (5) 123 (49) 3.0 (117) 3.6 (141) -4 (-1) 109 (43)
100 (2.5) 3.0 (120) 3.7 (144) 15 (6) 137 (54) 3.3 (131) 4.0 (157) -4 (-2) 121 (47)
120 (3.0) 3.7 (144) 4.4 (174) 18 (7) 165 (65) 4.0 (157) 4.8 (189) -5 (-2) 145 (57)
150 (3.8) 4.6 (181) 5.5 (217) 23 (9) 206 (81) 5.0 (197) 6.0 (237) -6 (-2) 181 (71)
200 (5.1) 6.1 (241) 7.4 (291) 30 (12) 274 (108) 6.7 (263) 8.0 (317) -8 (-3) 241 (95)
250 (6.4) 7.7 (302) 9.2 (364) 38 (15) 343 (135) 8.4 (329) 10.1 (396) -10 (-4) 302 (119)
300 (7.6) 9.2 (363) 11.1 (437) 46 (18) 411 (162) 10.0 (395) 12.1 (476) -12 (-5) 362 (142)
