15-835 TANK RINSING DEVICE

REF#

PART#

DESCRIPTION

QUANTITY

1

16-961

1" Adapter

1

2

16-962

1" Coupler

1

3

16-864

1" FTP Elbow

1

4

16-158

Close Nipple

1

5

16-150

Double Thread Fitting

1

6

16-172

4" Nipple

1

7

15-834

Tank Rinsing Nozzle

1

8

16-163

Reducer Bushing

1

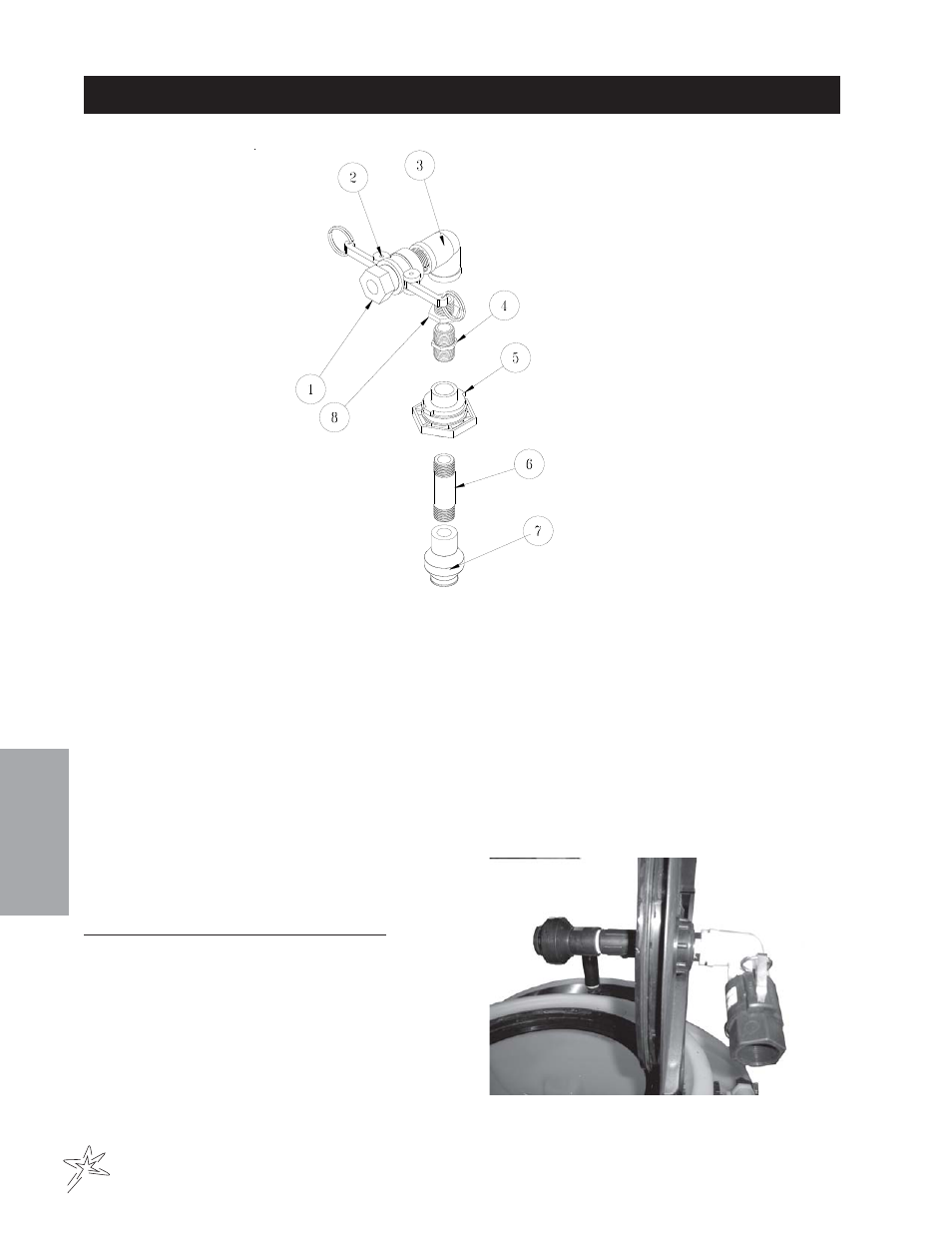

Drill 1-3/4" hole 5" from outside edge of cover.

Install Tank Rinsing kit as shown, with the Double
Thread Fitting (Ref 5) going into the cover.

Basket Must be removed During Use.
