Accessories

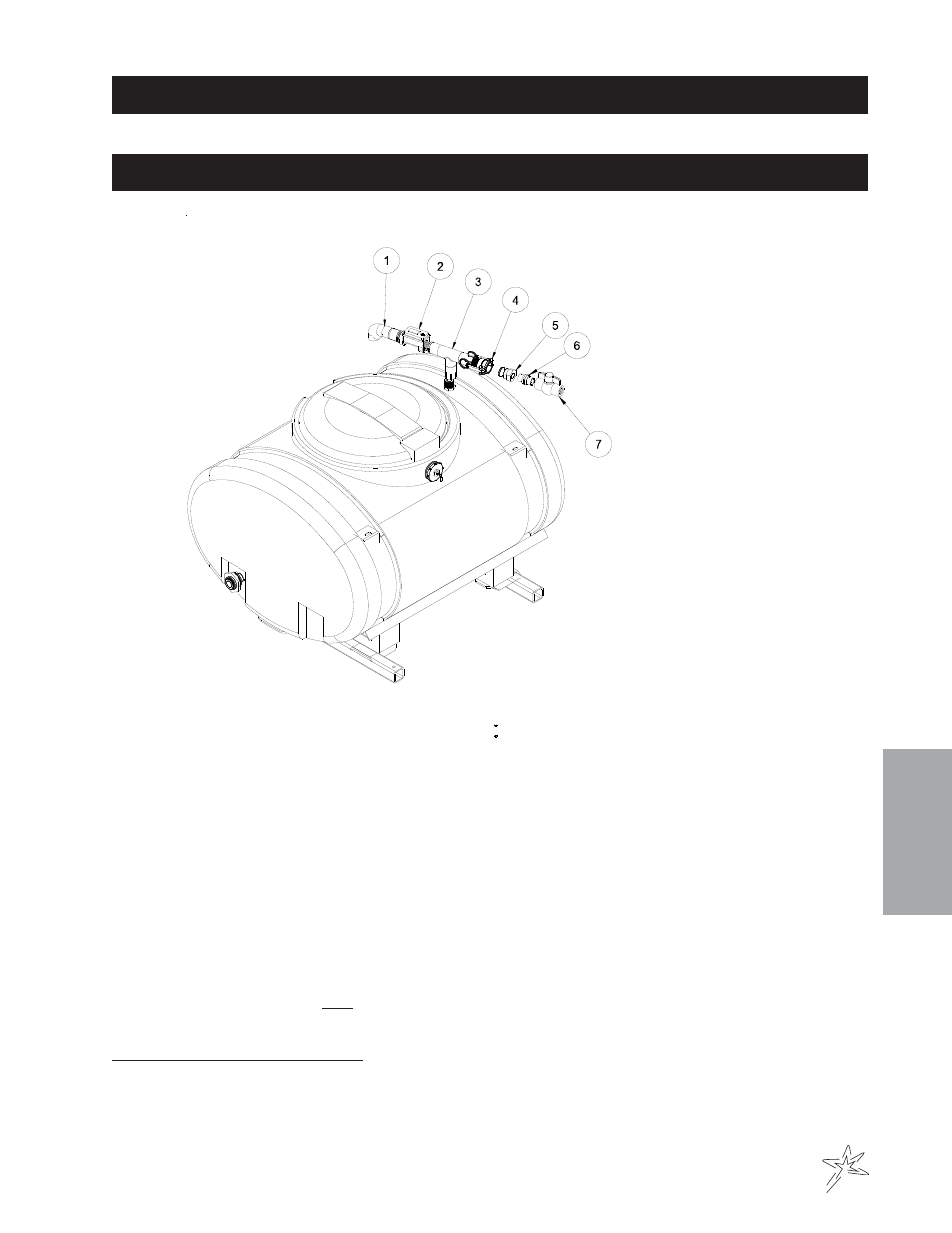

10-370 WATER FILL METER KIT - LITERS
10-365 WATER FILL METER KIT - GALLONS
REF # PART # DESCRIPTION QUANTITY
1 14-524 Filler Outlet 1
2 14-514 Water Meter - Gallons 1
14-521 Water meter - Liters 1
3 10-364 Filler Inlet 1
4 16-962 Quick Coupler (already on machine) 1
5 16-961 Quick Coupler (already on machine) 1
1. Thoroughly flush the service line upstream of the meter to remove dirt and debris.
2. Set meter inline.
3. Make sure the water flow follows the arrow cast on the meter body.
4. The DLJ Meter is for use only with COLD WATER up to 122°F (50°C)
5. Slowly open any upstream valves to prevent damage to the meter.
Gallons to Cubic feet Conversion :
Multiply gallons reading by 0.1337 to get cubic feet.
There are 7.48052 gallson per cubic foot.
