61
Accessories
10-417 CHEMICAL CLEANLOAD PART LIST
REF# PART # DESCRIPTION QUANTITY
1 HB-38-16-300 Bolt 3 / 8 -16 x 3 1
HNTL-38-16 Flange Lock Nut 3 / 8 -16 1
2 15-816 Mount Bracket 1
3 HBFL-516-18-075 Flange Bolt 5 / 16 -18 x 3 / 4 4
HNFL-516-18 Flange Lock Nut 5 / 16 -18 4
4 15-620 Cleanload Eductor 1
5 18-116 Hose Clamps 4
6 16-156 90° Hose Barb 3
7 18-391 Reducer Coupling 1
8 16-972 Elbow 1
A 8897-80 Hose to Tee by Valve 1
B 8897-35 Hose to fitting on Back of Tank 1
1. Make sure all chemicals have been flushed out of spray system, as you will be disconnecting fittings from
the pump. Remember to use threaded tape on all new fitting connections.

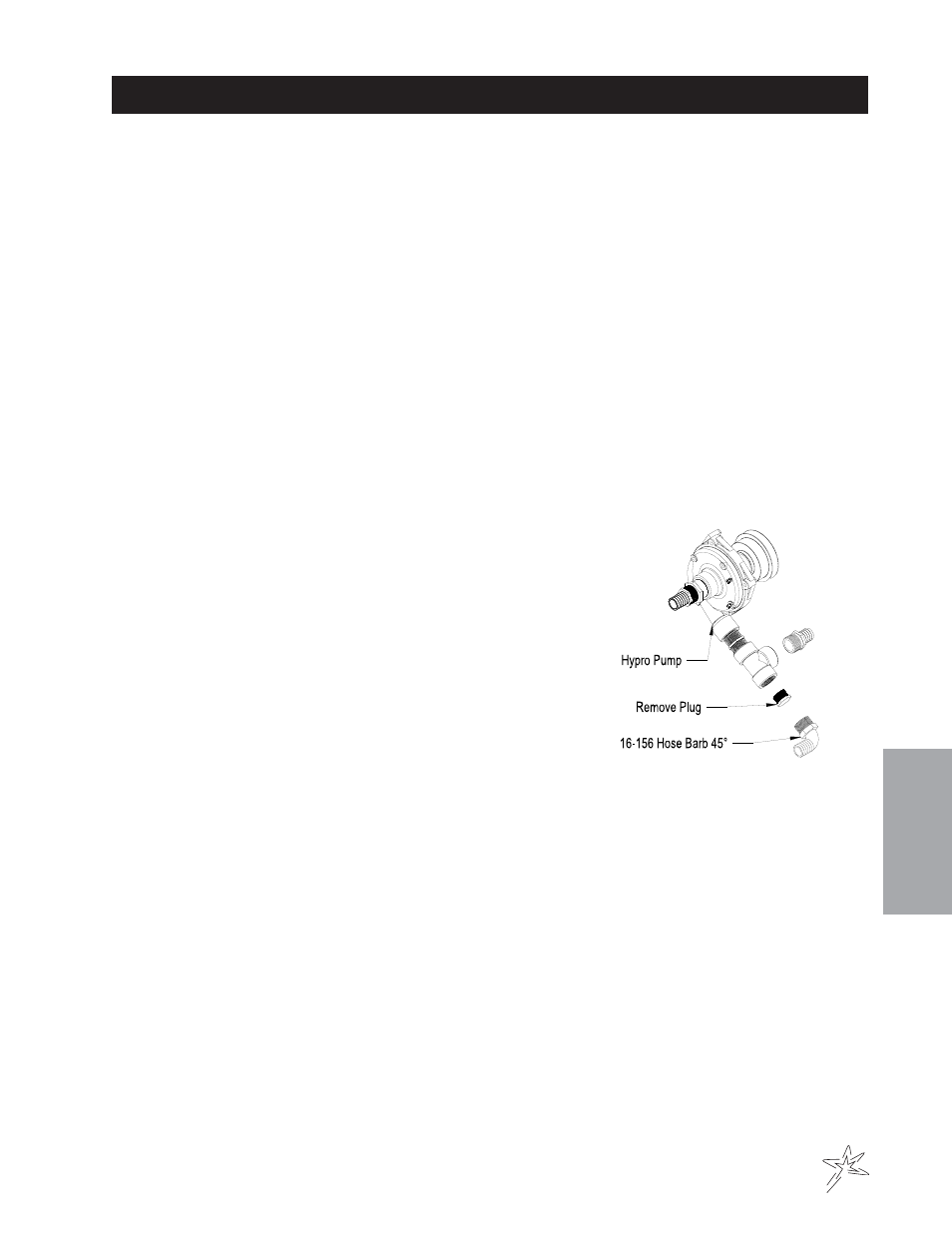

2. Remove the 1 1 /
4
" plug from the tee on the outlet side of the
pump and install one Hose barb (16-156). Then tighten so
it points to the left side of the machine.
3. Install mounting brackets onto left side of center boom
between boom pivot and vertical boom support. Secure
with
3 /
8
x 3 bolt, flatwasher (top and bottom) and lock nut.
4. Bolt Cleanload assembly onto mounting bracket using four
flange bolts 5 /
16
-18 x 3 /
4
and flange nuts. Install 90° hose
barb (16-156) into inlet side of Cleanload (valve with yellow
handle) then tighten so it points forward and down.
5. Install one reducer coupling (18-391) and one 90° Hose
Barb (16-156) onto the outlet side of Cleanload. Tighten so
hose barb points forward and up.
6. Remove plug from top rear center of spray tank and discard. Install one hose barb (16-161) into tank fitting
and tighten.
7. Route 80" hose from the 90° hose barb on spray pump to the inlet side of the Cleanload and secure with
hose clamps (18-116).
8. Route 35" hose form 90° hose barb on outlet side on Cleanload to the hose barb on the top rear of the
tank.
9. Make sure all hardware, fittings, and clamps are tight. Add about 25 gallons of water to the spray tank.
Start Sprayer and circulate water through system and check for leaks.
10. Be sure to read start up and shutdown instructions for Cleanload assembly before using it with chemicals.
When working with chemicals always wear protective clothing, goggles and gloves.
