ADJUSTMENTS
(CONTINUED)

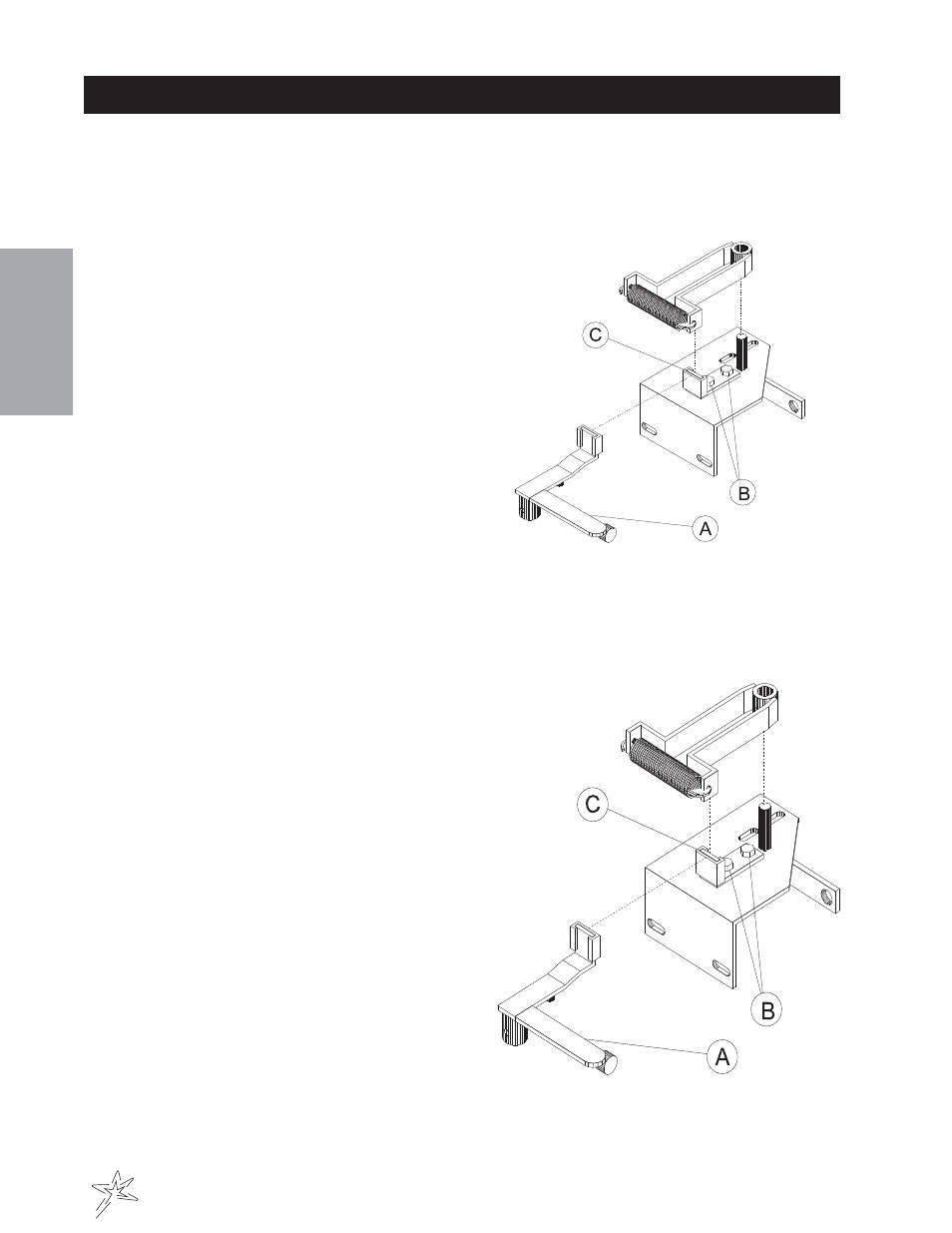

WHEEL ‘CREEP’ ADJUSTMENT
(KAWASAKI LIQUID COOLED)
‘Creep’ is when engine is running and hydrostatic transmission is in neutral, but due to inadequate alignment,
wheels still move. Do the following procedures to stop this motion.
1. Lift up and support machine so all wheels are off the
ground and can turn freely.
2. At rear of machine, on top of the hydrostatic transmis-
sion is the shift arm (A). Loosen bolts (B).
3. With engine running move stop (C) so it moves shift
arm (A) to center and wheel creep stops.
4. Tighten all fasteners and test by using foot pedal
linkage to see that the "creep" is removed.
5. Turn engine off and lower machine
WHEEL ‘CREEP’ ADJUSTMENT
(KOHLER AIR COOLED)
‘Creep’ is when engine is running and hydrostatic trans-
mission is in neutral, but due to inadequate alignment,
wheels still move. Do the following procedures to stop this
motion.
1. Lift up and support machine so all wheels are off
the ground and can turn freely.
2. At rear of machine, on the bottom of the hydro-
static transmission is the idler arm (B). Loosen bolt
(A).
3. With engine running move ball bearing (C) so it
centers on shift arm (D) and wheel creep stops.
4. Tighten all fasteners and test by using foot pedal
linkage to see that the "creep" is removed.
5. Turn engine off and lower machine
