3-4
• DFR-8310 Series Setup
DFR-8300 Series User Manual (Rev. 2.0)
Cooling Features
The standard DFR-8310 frame can be also be ordered as the DFR-8310-C version, with the Cooling
Fan Module installed as original equipment from the factory. However, for customers wishing to
increase the ventilation on their standard DFR-8310 frames, the optional CFM-8310 Cooling Fan
Module is available as a field upgrade kit.
The CFM-8310 module consists of a fan board, which installs in the frame door, and a controller card,
which installs in a designated frame slot. The controller may be either an MFC-8310, which provides
fan control and local alarm monitoring, or an MFC-8310-N, which provides fan control, alarm
monitoring, and support for remote monitoring and control via Ethernet. Installation instructions are
provided in this chapter for both types of controller cards.
Installing the Cooling Fan Module
This section includes instructions on installing the Fan Board component of the CFM-8310 module and
an outline of the Functions and User Controls of the module. After you install the CFM-8310 module,
you must install the MFC-8310 or the MFC-8310-N controller card.
Installing the Cooling Fan Module
Refer to Figure 3.3 when installing the Fan Board component of the CFM-8310:

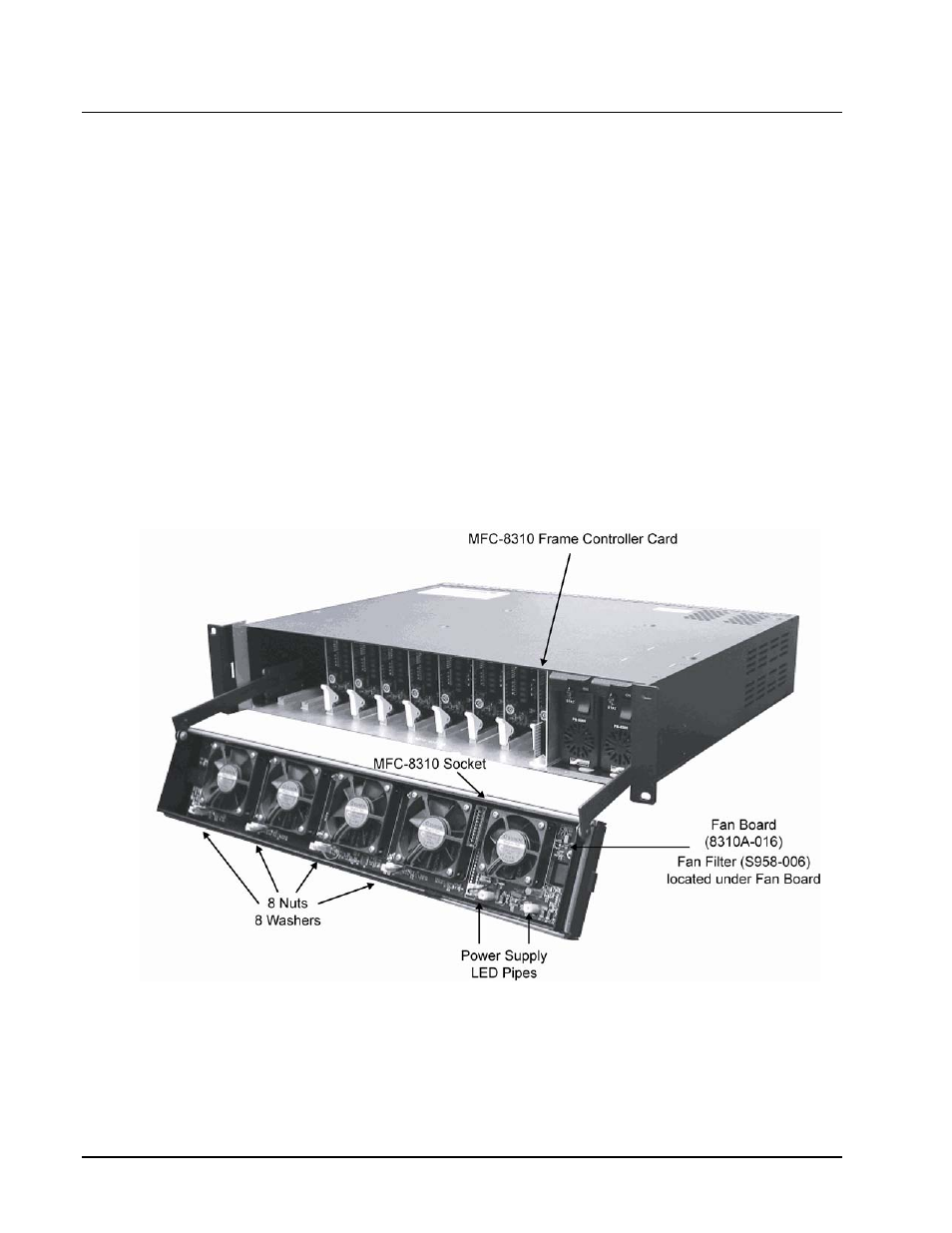

Figure 3.3 CFM-8310 Cooling Fan Module
