2-12
• Installation
DFR-8300 Series User Manual (Rev. 2.0)
Rear Module Installation
If you are installing an openGear card in a DFR-8310-C-BNC or DFR-8310-BNC frame, skip this
section. If you received a Rear Module for your openGear card, you will need to install the module in
your DFR-8300 series frame before you can connect cables.
Use the following procedure to install a Rear Module in a DFR-8300 series frame:
1. Power down the frame.
2. Ensure that the frame is properly installed.
3. If you are installing a Rear Module in a DFR-8310 series frame:
• On the rear of the DFR-8300 series frame, locate the card frame slot.
4. If you are installing a Rear Module in a DFR-8321 series frame:
• When installing a Full Rear Module, you must select an even-numbered slot,
such as 2, 4 or 6.
• When installing a Split Rear Module, remember that this module requires
two slots.
5. Seat the bottom of the Rear Module in the seating slot at the base of the frame back
plane. (Figure 2.4 )

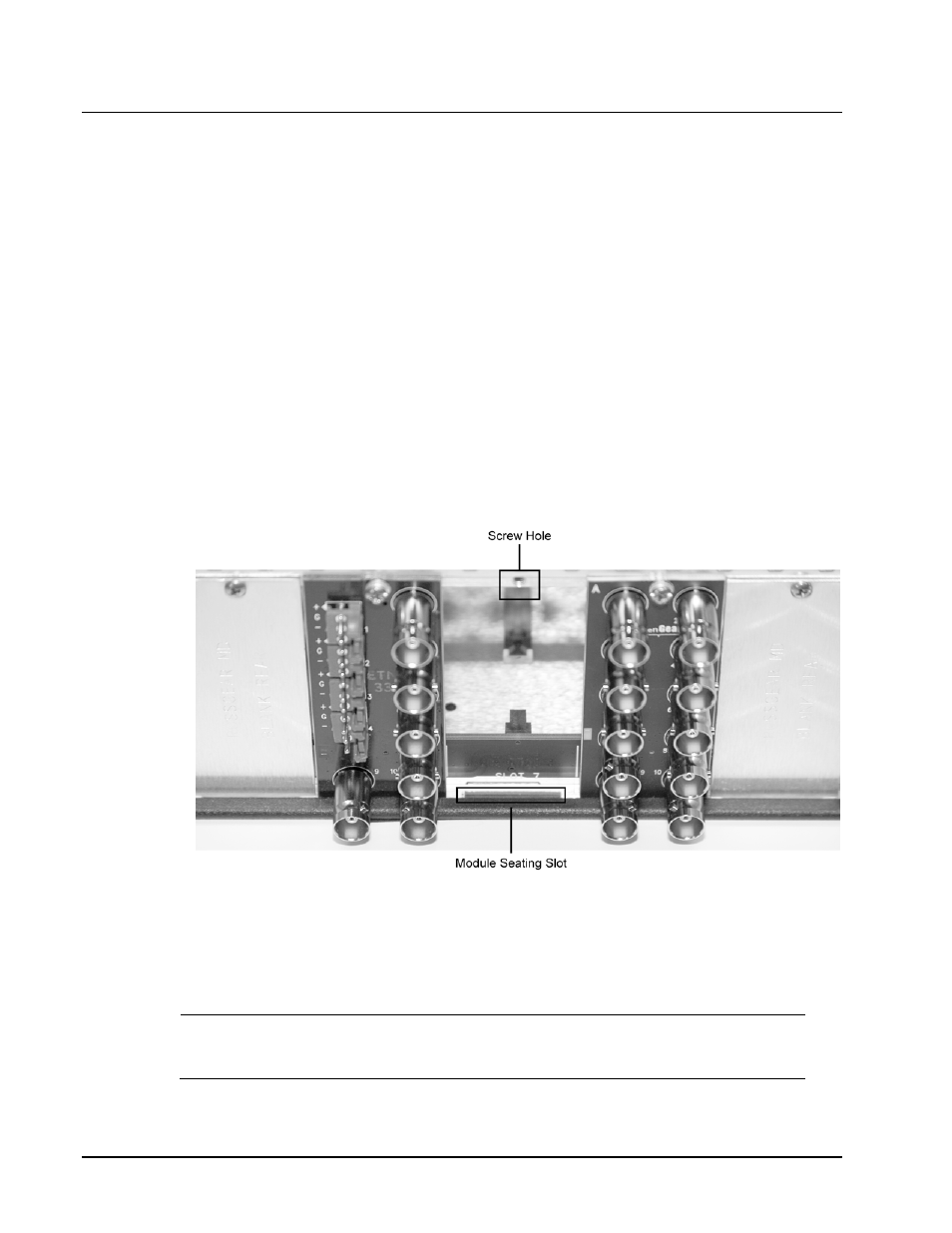

Figure 2.4 Rear Module Installation — DFR-8310 series frame
6. Align the top screw of the Rear Module with the screw hole on the top edge of the
DRF-8300 series frame back plane. ( Figure 2.4 )
7. Ensure the module aligns with the desired card slot before tightening the screws.
Note — Verify that the card aligns with the Rear Modules before tightening the slot screws.
