Sea Eagle SE-9 Motormount Boat (SE9) - Manual (Page 9)

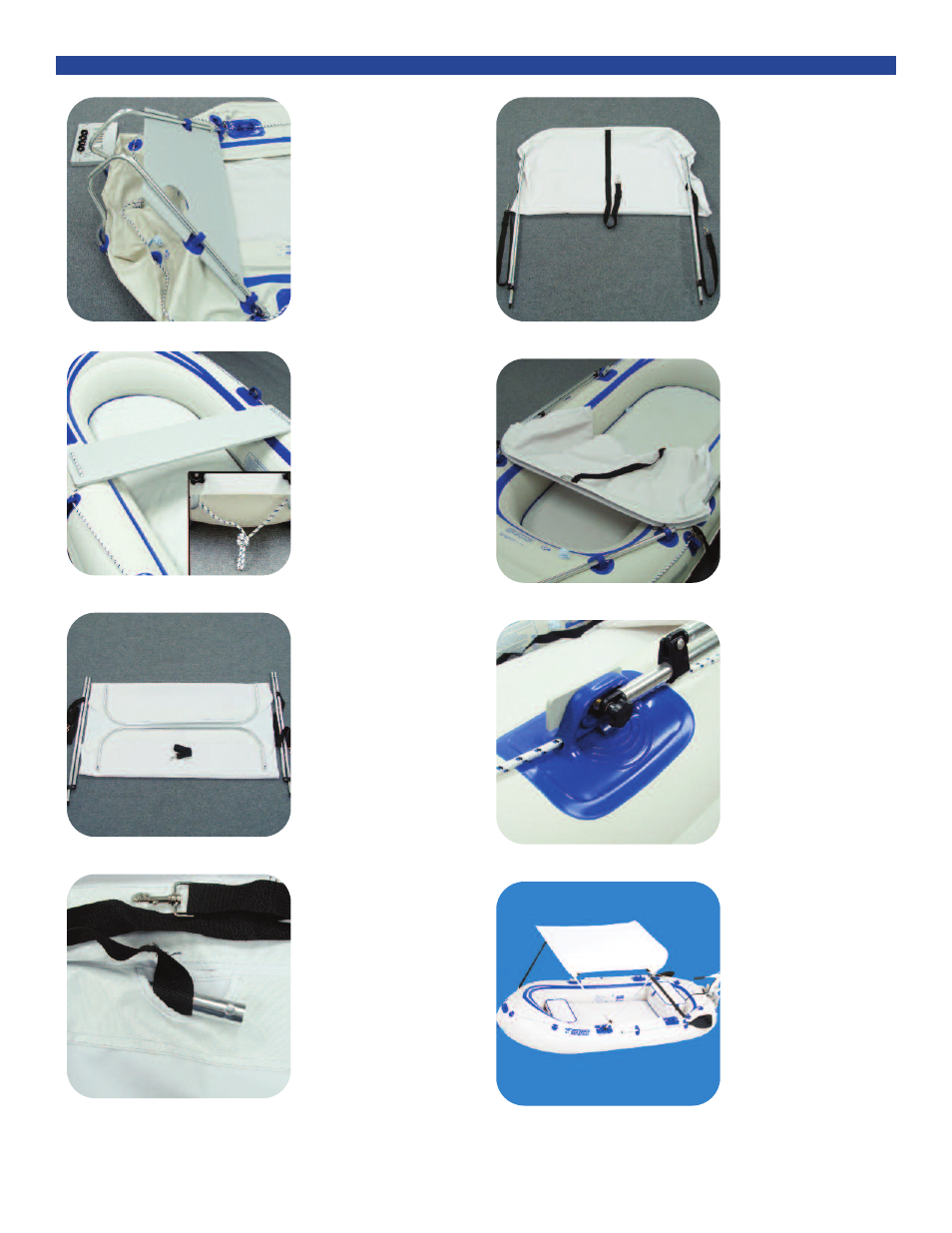

Motor Support Bench
(OPTIONAL)
If you have the optional
Motor Support Bench
(MSB), install it now.
Work it under the bars
and attach the hook
and loop straps.
SPW Wooden Bench
(OPTIONAL)
Untie the hand line that
runs around the boat,
carefully pulling it out.
Run it through the
holes in the seat and
back through to the
rear of the boat. Once
done, re-tie the rope
using a simple over-
hand knot.
Canopy (OPTIONAL)
Lay out the canopy
parts on the floor.
Arrange the canvas top
side up and fold ends
back as shown here.
Position the curved
bars so the locking
holes at the ends are
up. The sleeve with a
window cut-out is the
front.
Push the tube through
the front sleeve until it
shows in the window.
Place the strap loop
over the tube and finish
inserting the tube. In-
sert the other tube in its
sleeve.
Backpack Carry Bag
Next you can store your
fully deflated and rolled
up RazorLite inside of
the backpack carry
bag. If you’ve taken
your time and rolled
tightly, you should have
plenty of room for the
paddle (broken down),
seat, foot pump and
other small items.
Lay the canopy on the
back of the boat with
the front bar on top.
Attach the hardware on
the end of the rod. The
plate goes inboard.
Insert the bolt and
washer from inside. Put
the brass spacer on the
bolt, then rod on the
outside, washer and
black threaded knob.en
down), seat, foot pump
and other small items.
Hook the rear straps to
the oar clips. Pull the
canopy up by the front
strap and clip it to a
rope grommet in the
bow. Adjust the buckles
as needed. Leave the
hardware attached to
the rod when removing
the canopy so it is
available for next use.
8
Motormount Boat | ACCESSORIES: ACCESSORIES: Optional Accessories
