HID312AW, HID525AW and HID540AW
Installation and User’s Manual
March 2015
Page 9
Wall Mounting
It is recommended that the wall mounting installation
be done by an experienced contractor.
The weight of the machine when in use may exceed
350 pounds. The unit must be mounted on a solid,
rigid wall with proper fasteners for that type of wall
and of adequate strength to support the weight of the
machine when in use.
The machine will have a bracket and there will be
one bracket mounted to the wall. The machine will
hang from the wall bracket by the upper bracket on
the back of the cabinet. The lower bracket keeps the
machine plumb to the wall.
1. Attach the water and drain tubing so the tubing
extends below the bottom of the cabinet. That
allows connection when the machine is on the
wall.
2. Locate the box with
the mounting brackets.
Separate the two
brackets. Retain the bolts
and lock washers.
3. Identify the location of
the wall studs or other
materials to be used to
fasten the wall bracket to.
4. Mount the wall bracket
(has threaded inserts)
to the wall using the
appropriate methods and
fasteners. Note: Must be
level left to right.
The wall bracket extends
beyond the width of the
machine to allow attachment
to multiple wall studs.
5. Mount the other bracket
to the back of the ice
machine cabinet at the
joint between the two
back panels, using 9
existing screws in the
back.
6. Use a mechanical hoist to lift the cabinet high
enough to fit the flange of the machine bracket
over the lip of the wall bracket. Then push it back
and lower it onto the wall bracket.
7. Secure the wall and machine bracket with
the bolts and lock washers originally used in
shipment.

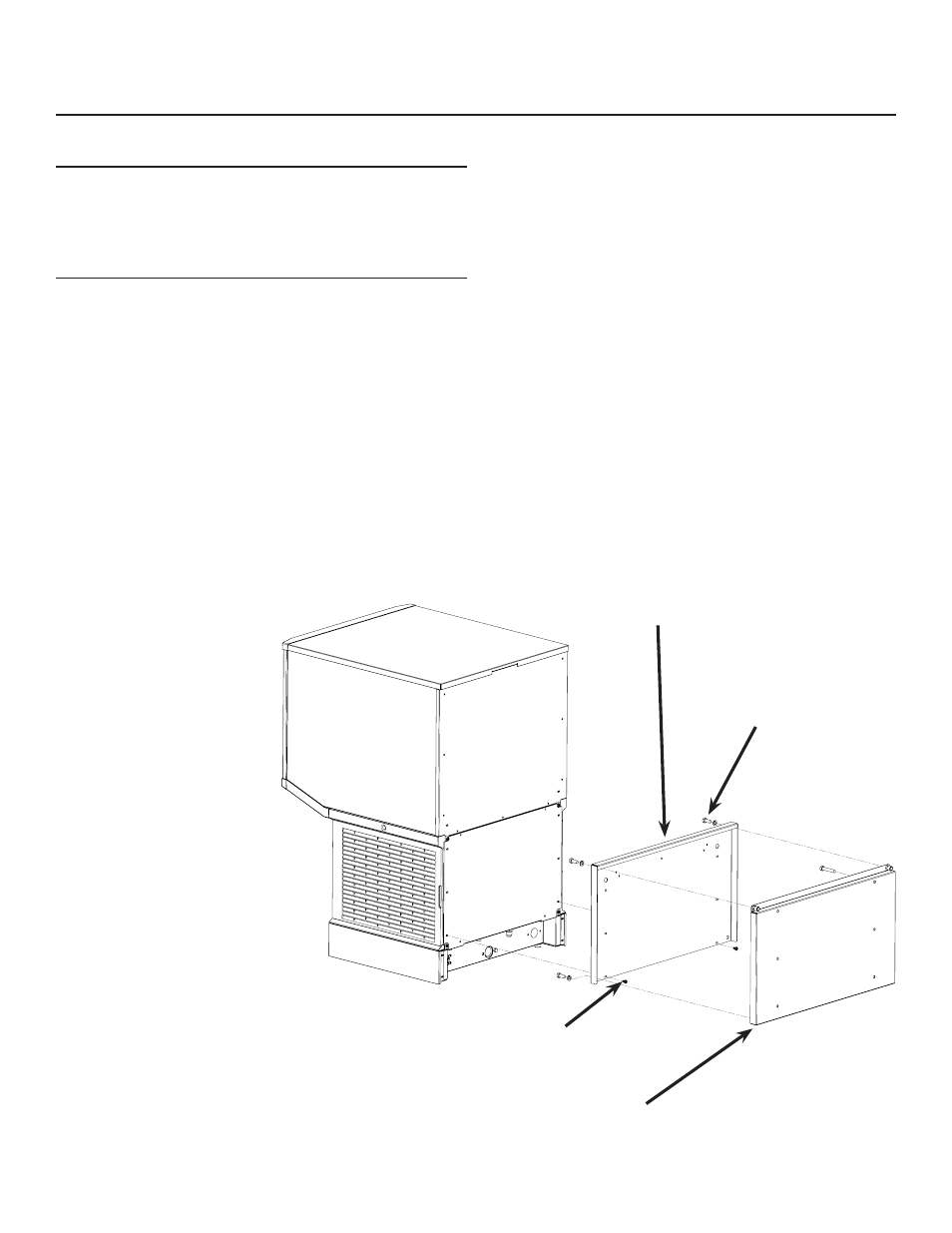

Bracket, mounts to wall.
Bracket, mounts to
back of dispenser.
Bolt the two brackets
together after unit is
mounted.
Use cabinet screws to
attach to back of unit.
