Refer to the following table for clearance between roof and
termination.

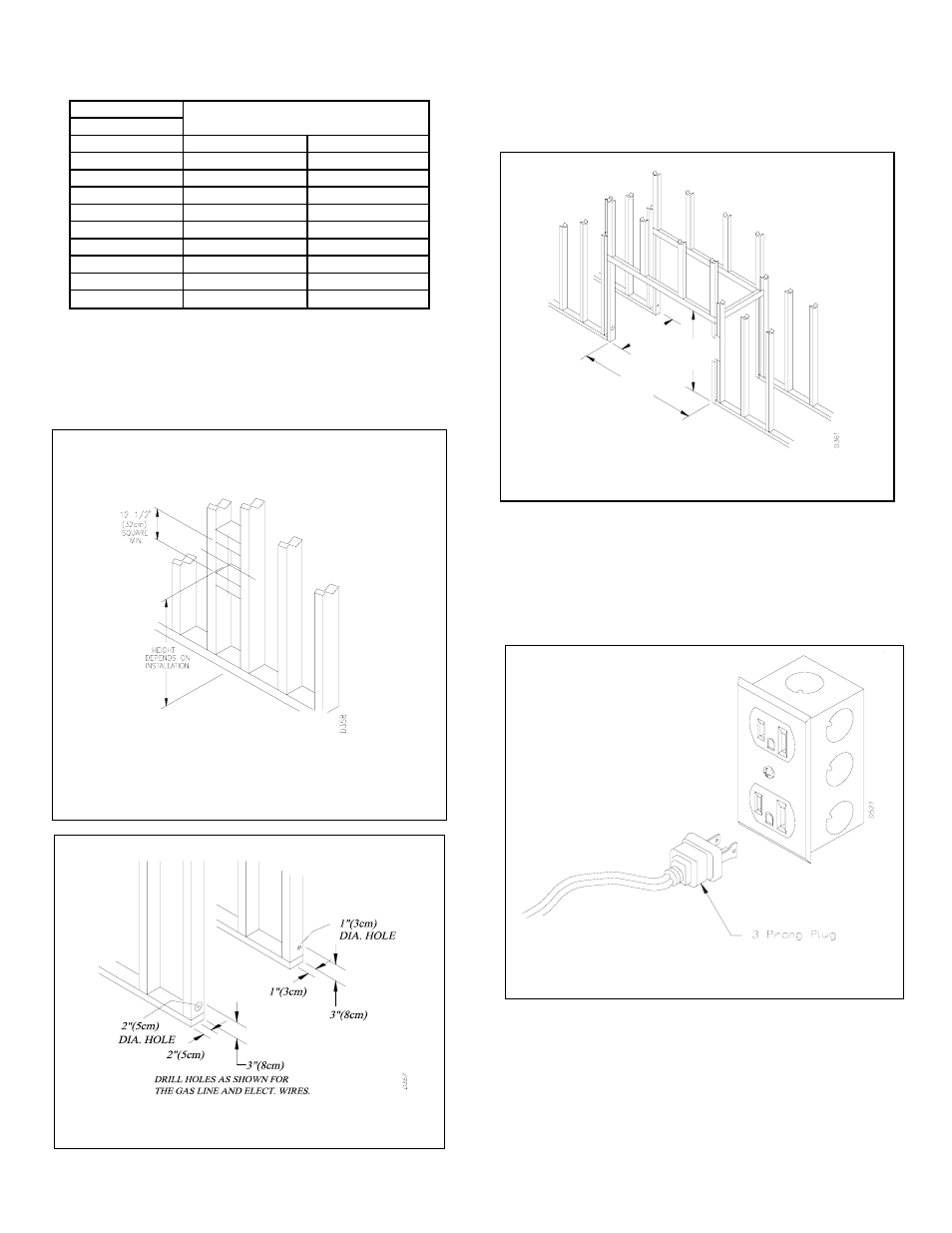

FRAMING
Once the final location has been determined (observing
clearances for vent termination), you may construct framing
using dimensions shown in figures 10 through 12, depending
on the particular installation.
If the appliance is to be installed directly on carpeting, tile
(other than ceramic), or any combustible material other than
wood flooring, the appliance must be installed upon a metal or
wood panel extending the full width and depth of the fireplace.
ELECTRICAL HOOK-UP AND REMOTE RECEIVER
DIAGRAM
A wire way with two receptacles has been supplied for your
convenience and is located on the lower right hand side of the
appliance (see figure 13).
Due to high temperatures, make sure no wires are touching the
bottom of the firebox.
ROOF PITCH
ft mm
FLAT - 7/12 1 305
7/12 - 8/12 1.5 457
8/12 - 9/12 2 610
9/12 - 10/12 2.5 762
10/12 - 11/12 4 1219
12/12 - 14/12 5 1524
14/12 - 16/12 6 1829
16/12 - 18/12 7 2134
18/12 - 20/12 7.5 2286
20/12 - 21/12 8 2438
MINIMUM HEIGHT ABOVE ROOF
Figure 10
43 1/4"
39 3/4"
24"
(61 cm)
(101 cm)
MIN.
(110 cm)
Figure 12
Figure 11
Figure 13 WIRE WAY
