-3 - For more information, visit www.desatech.com

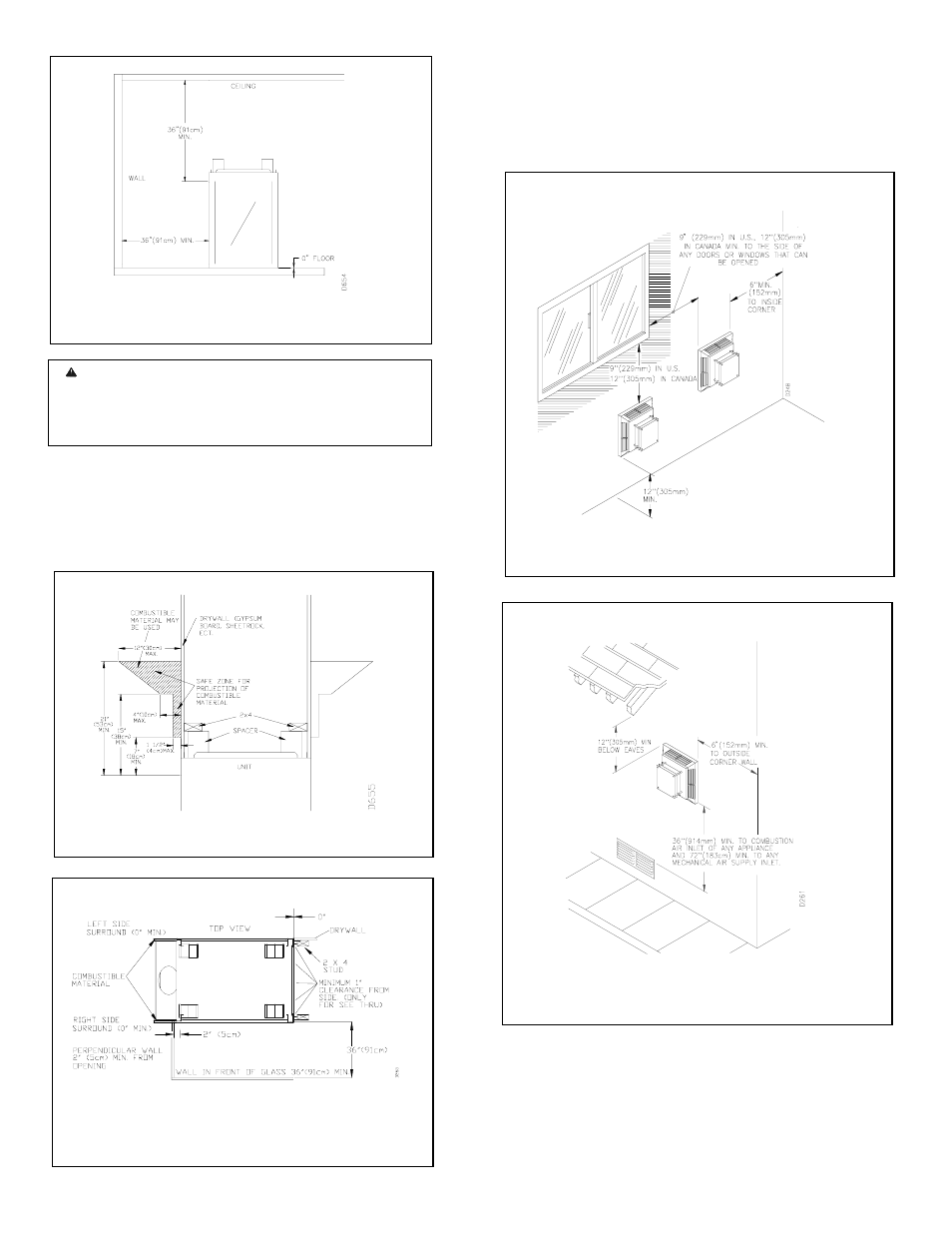

MANTEL CLEARANCES
Woodwork, such as wood trims, mantels and other
combustible materials should be placed within the required
clearance specified on figures 3 and 4. VENT TERMINATION CLEARANCES
The final position of your fireplace depends on the location of
the vent termination in relation to the clearances that must be
observed as shown in figures 5 and 6.
WARNING: Do not block required air space with
insulation or any other material. Do not obstruct
effective opening of appliance with any type of facing
material.
Figure 6 VENT CLEARANCES
Figure 5 VENT CLEARANCES
Figure 2 CLEARANCES
Figure 3 MANTEL CLEARANCE
Figure 4 CLEARANCES
