Electrical characteristics curves (con.) – Delta Electronics Delphi 6A Series User Manual
Page 4
DS_NE12S06A_06302008
4

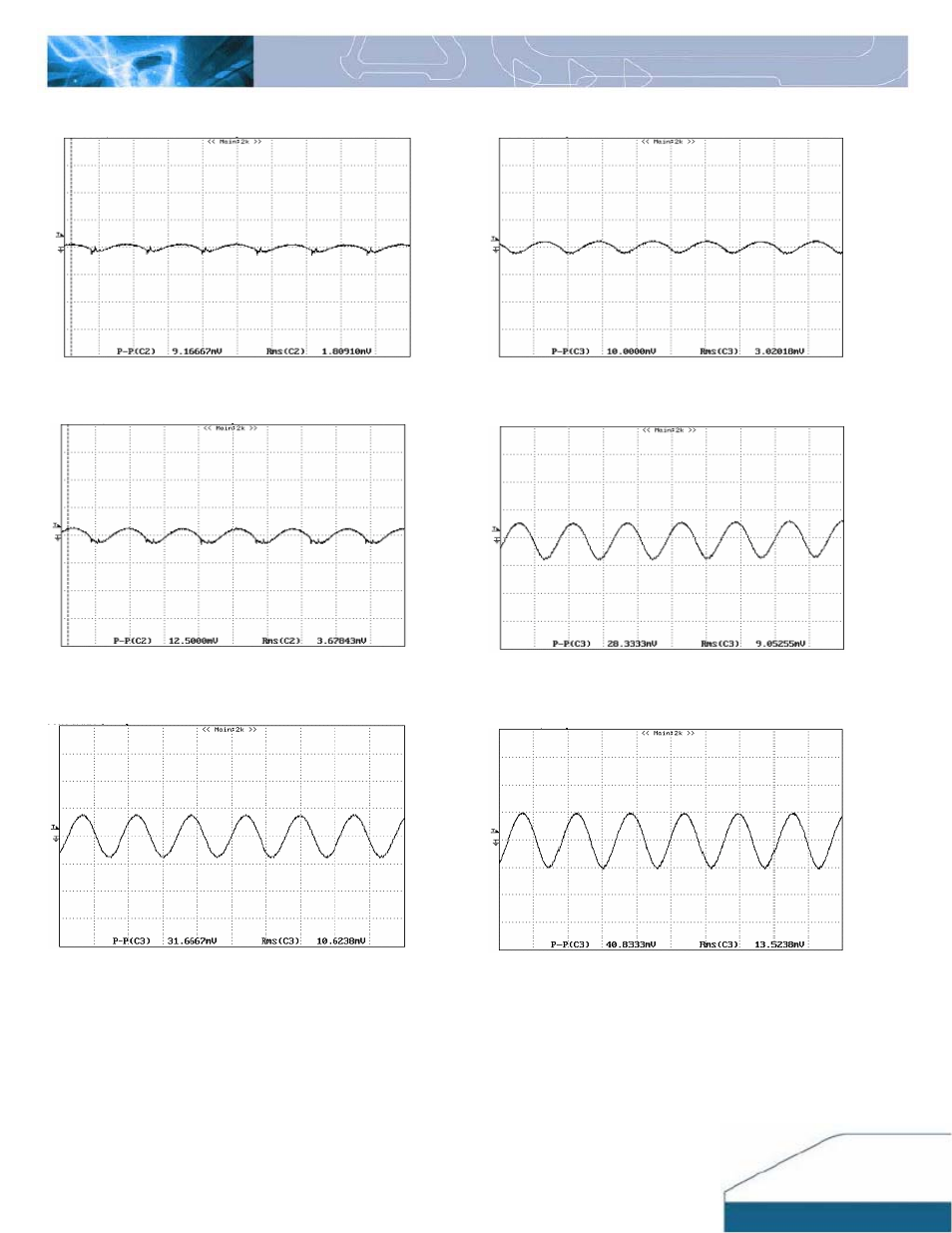

ELECTRICAL CHARACTERISTICS CURVES (CON.)
Figure 7:
Output ripple & noise at 12Vin, 0.59V/6A out
Figure 8:
Output ripple & noise at 12Vin, 0.9V/6A out
Figure 9:
Output ripple & noise at 12Vin, 1.8V/6A out
Figure 10:
Output ripple & noise at 12Vin, 2.5V/6A out
Figure 11:
Output ripple & noise at 12Vin, 3.3V/6A out
Figure 12:
Output ripple & noise at 12Vin, 5.0V/6A out
